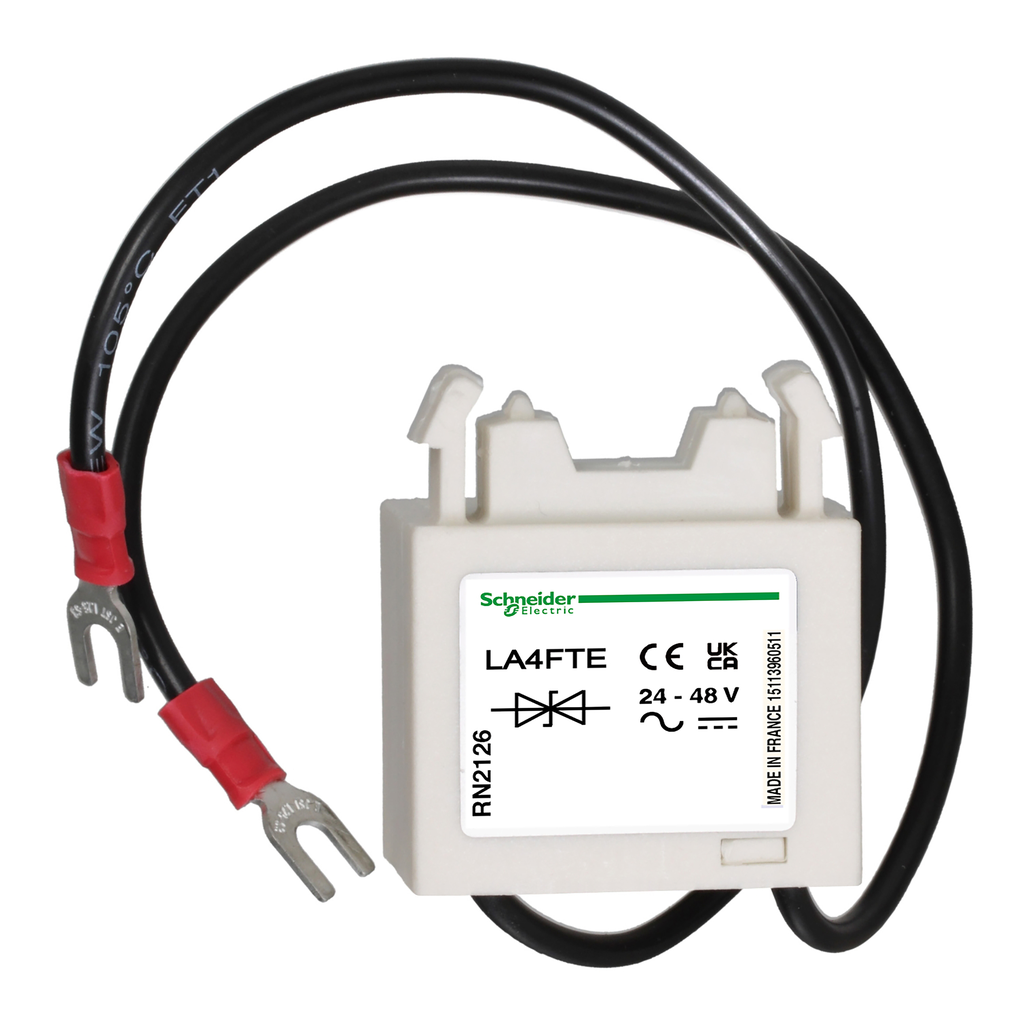

TeSys F suppressor block, for coil protection of contactors LC1F, LC2F, CR1F. To be used for 24-48V AC or DC control circuits, it provides bidirectional peak limiting diodes protection limiting the transient voltage to 2.5 Uc max. Clipping on bracket LA9D09981 (to be ordered separately), to be connected to the coil screw terminals. It conforms to RoHS/REACh regulation.
Brand: Schneider Electric
Add to Quote CatalogueProduct Or Component Type | suppressor module |
---|---|
Range | TeSys |
Product Compatibility | LC1F |
Device Short Name | LA4F |
Warranty | 18 months |
[Uc] Control Circuit Voltage |
|
Net Weight | 0.04 kg |
Maximum Peak Voltage | 2...2.5 Uc |
Mounting Mode | by clips |
Suppressor Technology | bidirectional peak limiting diode |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP111253EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Eu Rohs Directive | Compliant |
Product Certifications | UKCA |
