LA4DWB

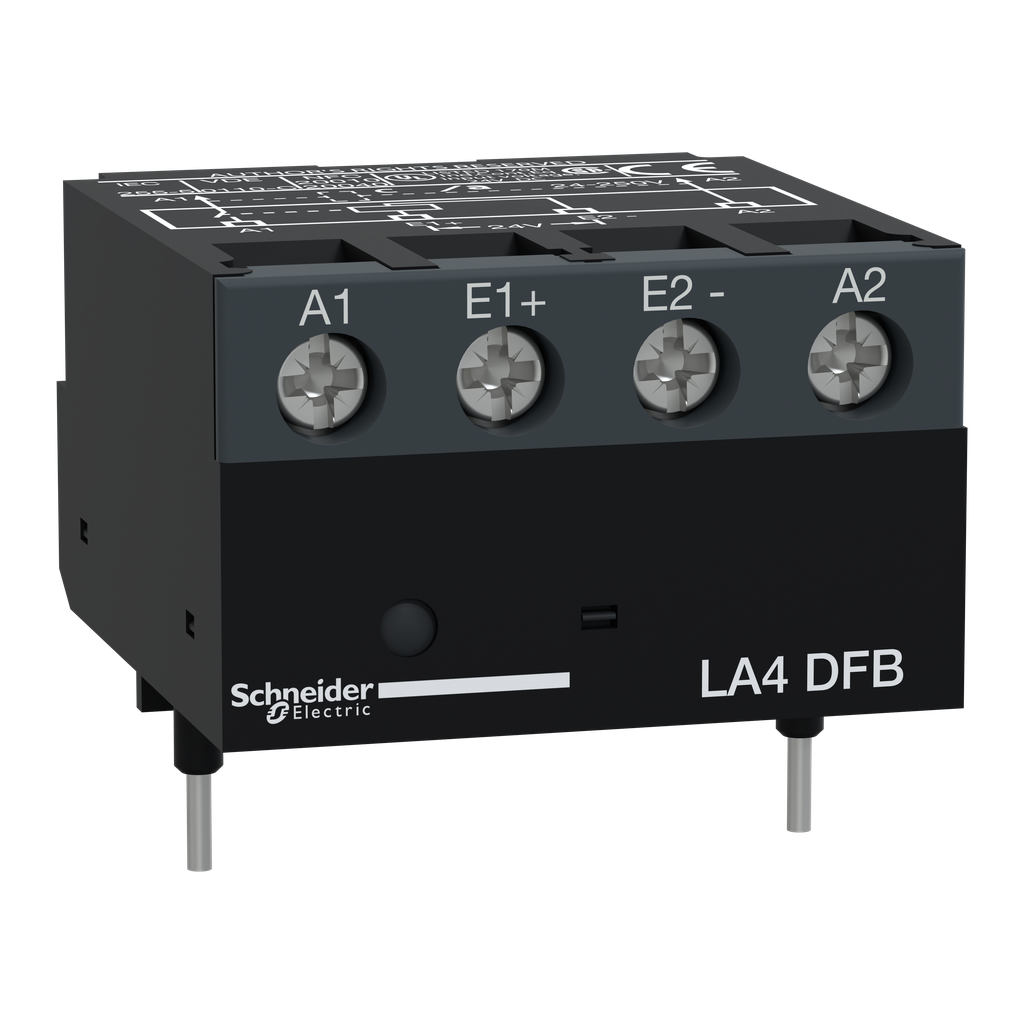

TeSys Deca - interface amplifier module - solid state - 24V DC/250V AC
TeSys Deca low signal interface module, for control of contactors LC.D09-D115 (3P). Static relay interface controlled by a 24V DC input signal. To be used with contactors with 24-250V AC coils (B7 to U7), for contactors LC.D80-D115 the use is limited to 100-250V AC coils (F7 to U7). To be mounted on a coil wiring adapter LAD4BB for contactors LC.D09-D38, LAD4BB3 for contactors LC.D40A-D80A, and directly on contactors LC.D80-D115. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Or Component Type | interface module |
|---|---|
| Range | TeSys |
| Poles Description | 3P |
| Product Compatibility | LC1D09...D115 |
| Device Short Name | LA4D |
| Warranty | 18 months |
| [Ue] Rated Operational Voltage | control circuit 24...250 V AC |
| Height | 19 mm |
| Control Circuit Voltage Limits | 5...30 V at 20 °C DC |
| Current State 0 Guaranteed | <= 2 mA |
| Net Weight | 0.045 kg |
| Voltage State 0 Guaranteed | < 2.4 V |
| Current Consumption | 8.5...15 mA 20 °C |
| Connections - Terminals |
|
| Mounting Mode | top mounted |
| Technology Type | solid state |
| [Ui] Rated Insulation Voltage | 250 V - control circuit IEC 60947-5-1 |
| Electrical Durability | 20 Mcycles 240 V |
| Local Signalling | LED indicator |
| [Us] Rated Supply Voltage | 24 V DC |
| Voltage State 1 Guaranteed | 5 V |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110807EN_V2 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-55 °C |
| [Ith] Conventional Free Air Thermal Current | 8 A 50 °C |
| Standards | IEC 60255-5 |
| Immunity To Microbreaks | 1 ms |
| Ip Degree Of Protection | IP2X conforming to IEC 60529 |
| Ambient Air Temperature For Storage | -40-80 °C |
| Permissible Ambient Air Temperature Around The Device | -25-70 °C |
| Protection Type | built-in by diode |
| Heat Dissipation | 0.4-0.4 W control circuit |
