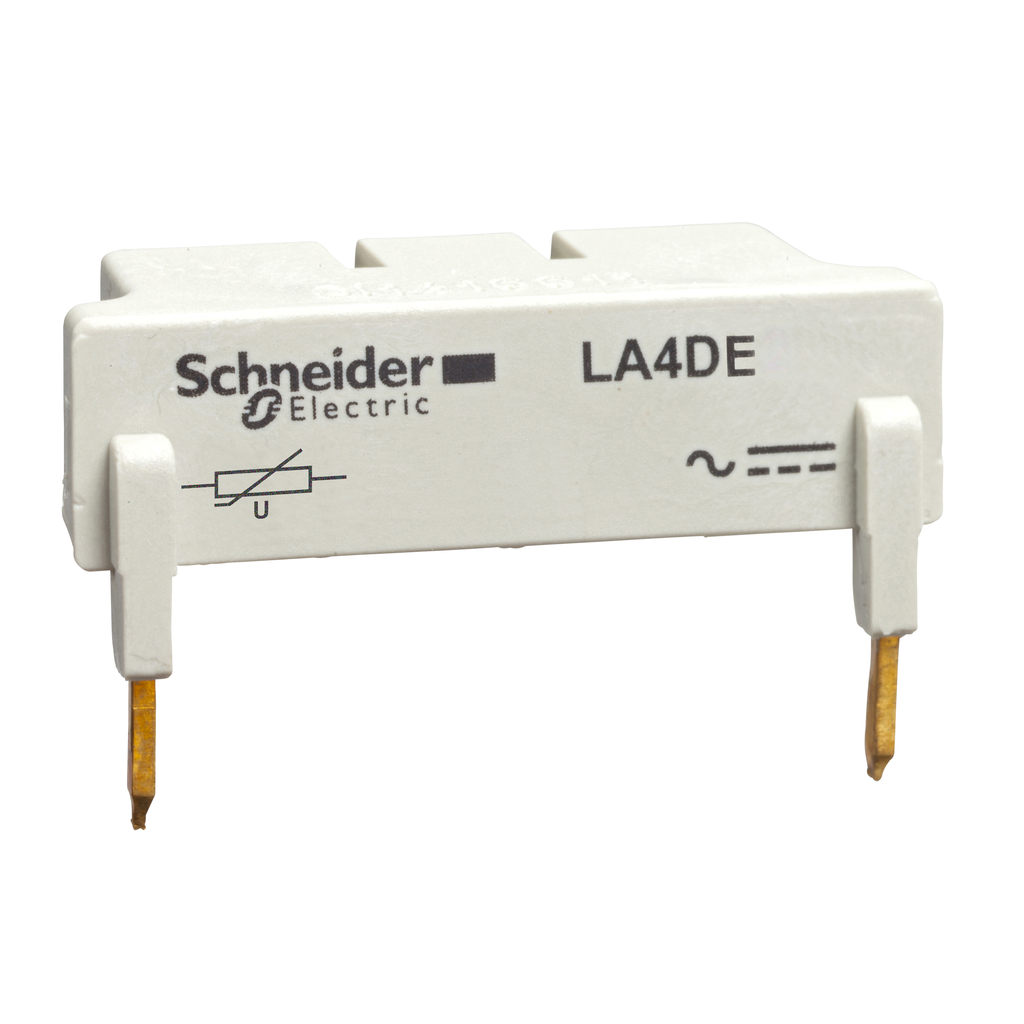

LA4DE3U
Suppressor module, TeSys Deca, varistor, 110 to 250VDC
TeSys D suppressor module, for LC1D80-D95 (3P), LP1D40-D80 (4P) contactors. To be used with 110-250V DC control circuit voltage, it provides varistor protection limiting the transient voltage to 2 Uc max. Mounting on top of contactor, screw fixing and connection on coil terminals. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Or Component Type | suppressor module |
|---|---|
| Range | TeSys |
| Product Compatibility |
|
| Device Short Name | LA4D |
| Warranty | 18 months |
| [Uc] Control Circuit Voltage | 110...250 V DC |
| Net Weight | 0.018 kg |
| Mounting Location | top |
| Maximum Peak Voltage | 2 Uc |
| Mounting Mode | by screws |
| Suppressor Technology | varistor (peak limiting) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111253EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-55 °C |
| Standards |
|
| Ip Degree Of Protection | IP2XIEC 60529 |
| Ambient Air Temperature For Storage | -40-80 °C |
