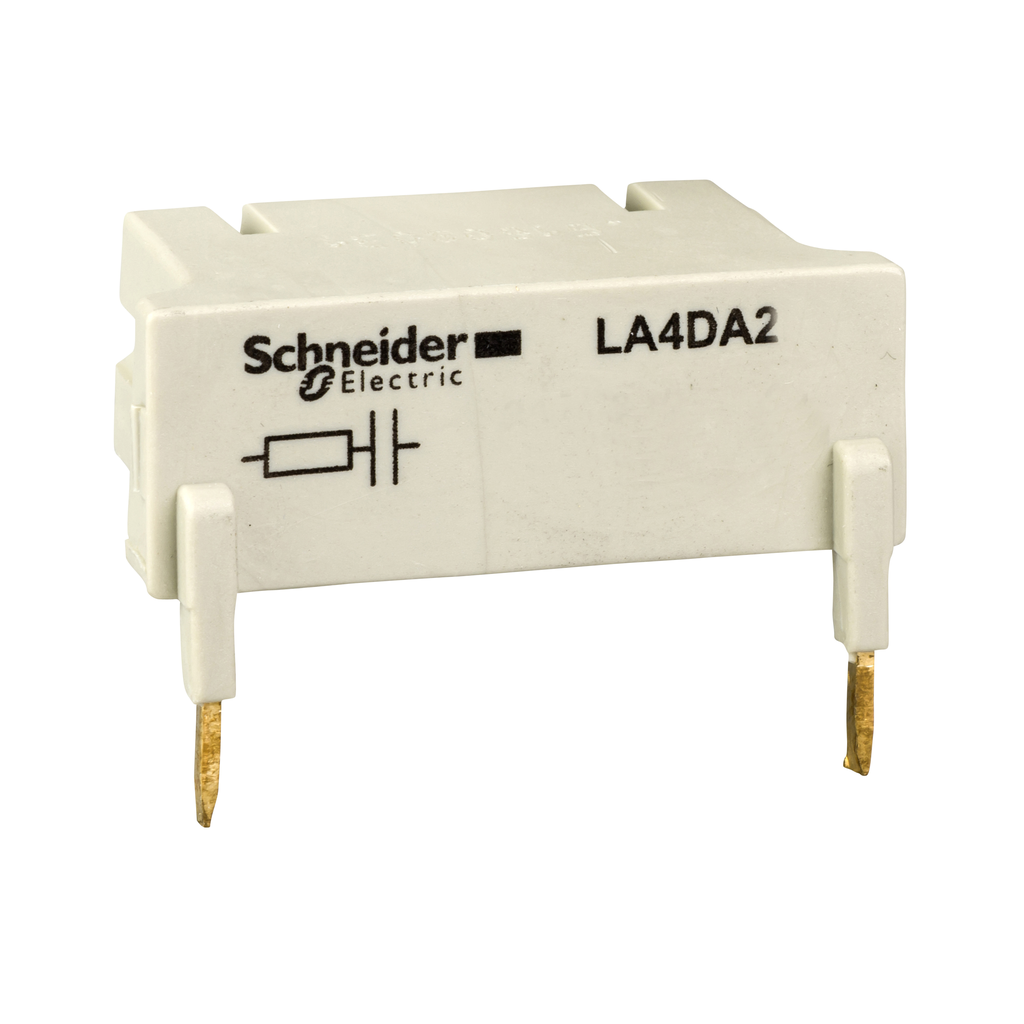

LA4DA2G - Suppressor module, TeSys Deca, RC circuit, 50 to 127VAC

LA4DA2G

Suppressor module, TeSys Deca, RC circuit, 50 to 127VAC

TeSys D suppressor module, for LC1D80-D150 (3P), LC1D40-D115 (4P) contactors. To be used with 50-127V AC control circuit voltage, it provides RC protection limiting the transient voltage to 3 Uc max. Mounting on top of contactor, screw fixing and connection on coil terminals. Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Or Component Type	suppressor module
Range	TeSys
Product Compatibility	3P LC1D80...D150 4P LC1D80004...D115004 4P LC1D40008...D80008
Device Short Name	LA4D
Warranty	18 months
[Uc] Control Circuit Voltage	50...127 V AC 50/60 Hz
Net Weight	0.018 kg
Mounting Location	top
Maximum Peak Voltage	3 Uc
Mounting Mode	by screws
Suppressor Technology	RC circuit
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP111253EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs Directive	Compliant
Product Certifications	UL CSA
Ambient Air Temperature For Operation	-25-55 °C
Standards	IEC 60947-5-1 EN 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5
Ip Degree Of Protection	IP2XIEC 60529
Ambient Air Temperature For Storage	-40-80 °C
