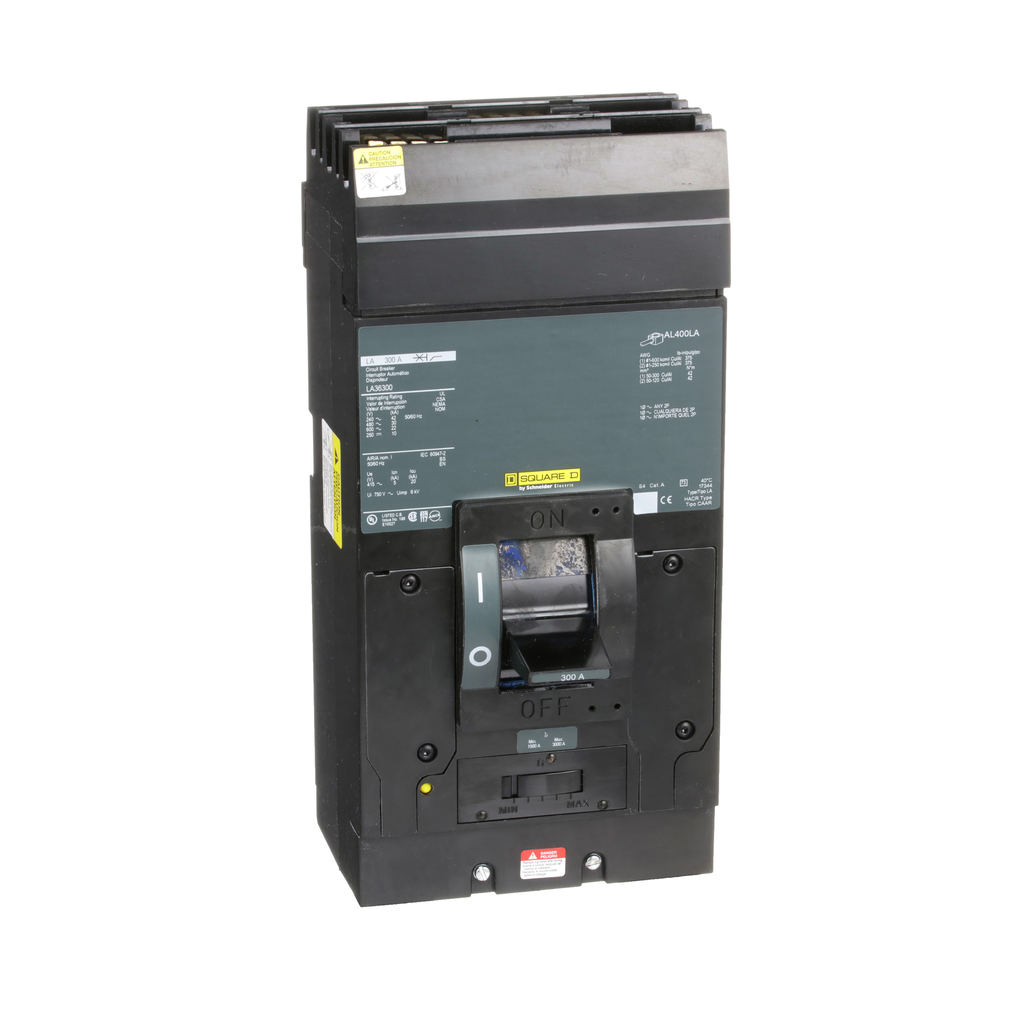

LA36300 - Circuit breaker, LA, 300A, 3 pole, 600VAC, 22kA, 250VDC, I-Line mount, thermal magnetic

LA36300

Circuit breaker, LA, 300A, 3 pole, 600VAC, 22kA, 250VDC, I-Line mount, thermal magnetic

Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. I-Line circuit breakers, with their exclusive bus connection design, provide superior reliability and performance advantages. A wide variety of accessories are available for field or factory installation of I-Line panelboards. This I-Line, 3P, circuit breaker has a 300A rated current. This breaker has a breaking capacity of 22 kA@600 VAC operation voltage. This breaker has a thermal-magnetic trip technology. The dimensions are 11 in (H), 6 in (W), 5.84 in (D).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Trip Unit Technology	thermal-magnetic
Product Or Component Type	circuit breaker
Warranty	18 months
Terminal Identifier	AL400LA
Height	11 in
Breaking Capacity Code	A
Magnetic Tripping Current	3000-3000 A
Electrical Connection	lugs load I-Line connection line
Magnetic Hold Current	1500 A
Circuit Breaker Application	HACR rated
Mounting Mode	I-Line
Poles Description	3P
Line Rated Current	300 A
Width	6 in
Wiring Configuration	3-wire
Depth	5.84 in
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1410004EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Compliant
Halogen Content Performance	Halogen free plastic parts product
Product Certifications	UL Listed CSA
