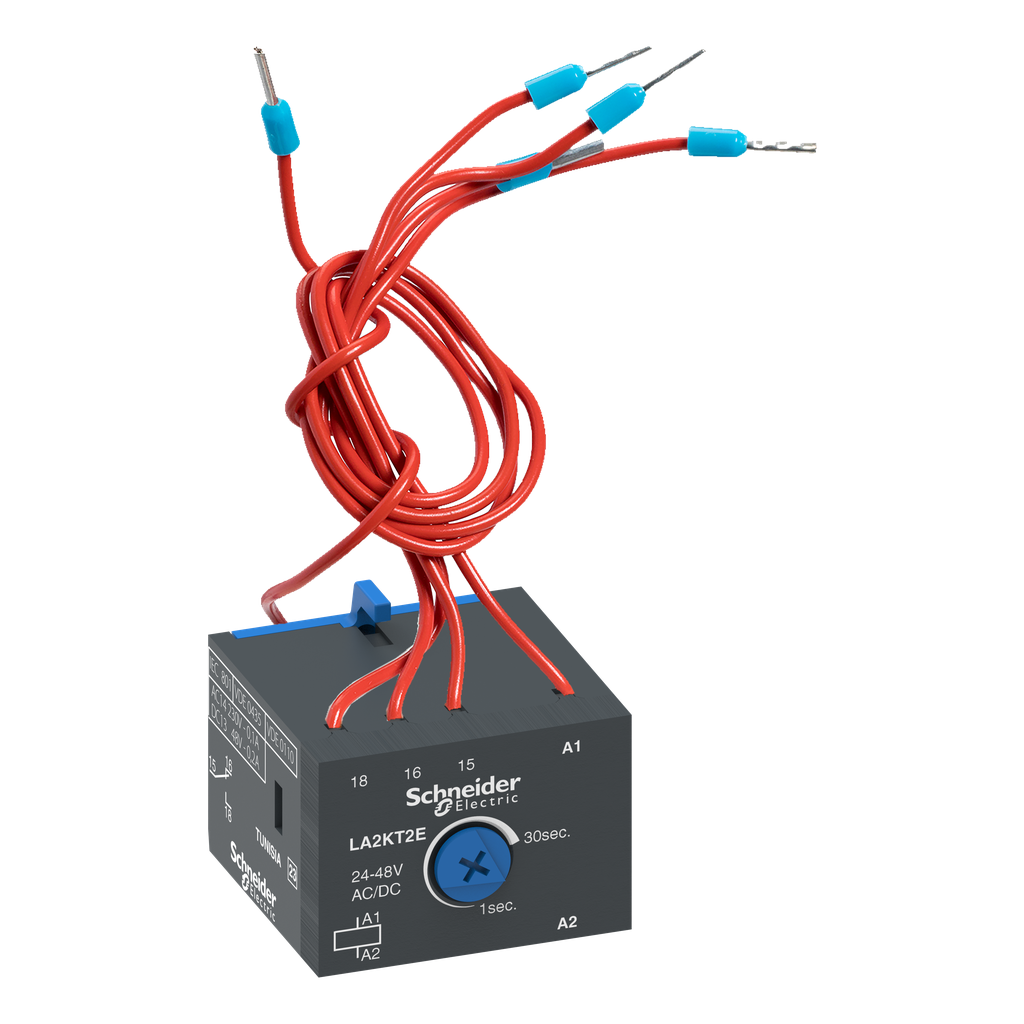

TeSys K electronic time delay contact block, for contactors LC.K, LP.K, CA.K. It provides 1C/O contact rated up to 2A 240V AC, with an on-delay setting range 1-30s. To be used for contactors with 24-48V AC/DC coils (B7 to E7, BD to ED). Front mounting by clip-on, connections by attached wires to the contactor. It conforms to RoHS/REACh regulation.
Brand: Schneider Electric
Add to Quote CatalogueProduct Certifications |
|
---|---|
[Ith] Conventional Free Air Thermal Current | 2 A signalling circuit |
Standards |
|
Timer Type | on delay |
Rated Operational Voltage Limits | 0.85...1.1 Uc |
[Ue] Rated Operational Voltage |
|
Range Compatibility |
|
Product Or Component Type | time delay auxiliary contact block |
Product Name | TeSys K |
Range | TeSys |
Mounting Location | front |
Pole Contact Composition | 1 C/O |
Time Delay Range | 1...30 s |
Auxiliary Contacts Operation | time delay |
Device Short Name | LA1 |
Warranty | 18 months |
Height | 27 mm |
Insulation Resistance | > 10 MOhm |
Net Weight | 0.04 kg |
Connections - Terminals | slip-on terminals |
Reset Time |
|
Width | 38 mm |
Depth | 38 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2106022 |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Eu Rohs Directive | Compliant |
Ambient Air Temperature For Operation | -10-60 °C |
Ip Degree Of Protection | IP20 conforming to IEC 60529 |
Environmental Characteristic | normal environment |
Protective Treatment | TC IEC 60068 |
