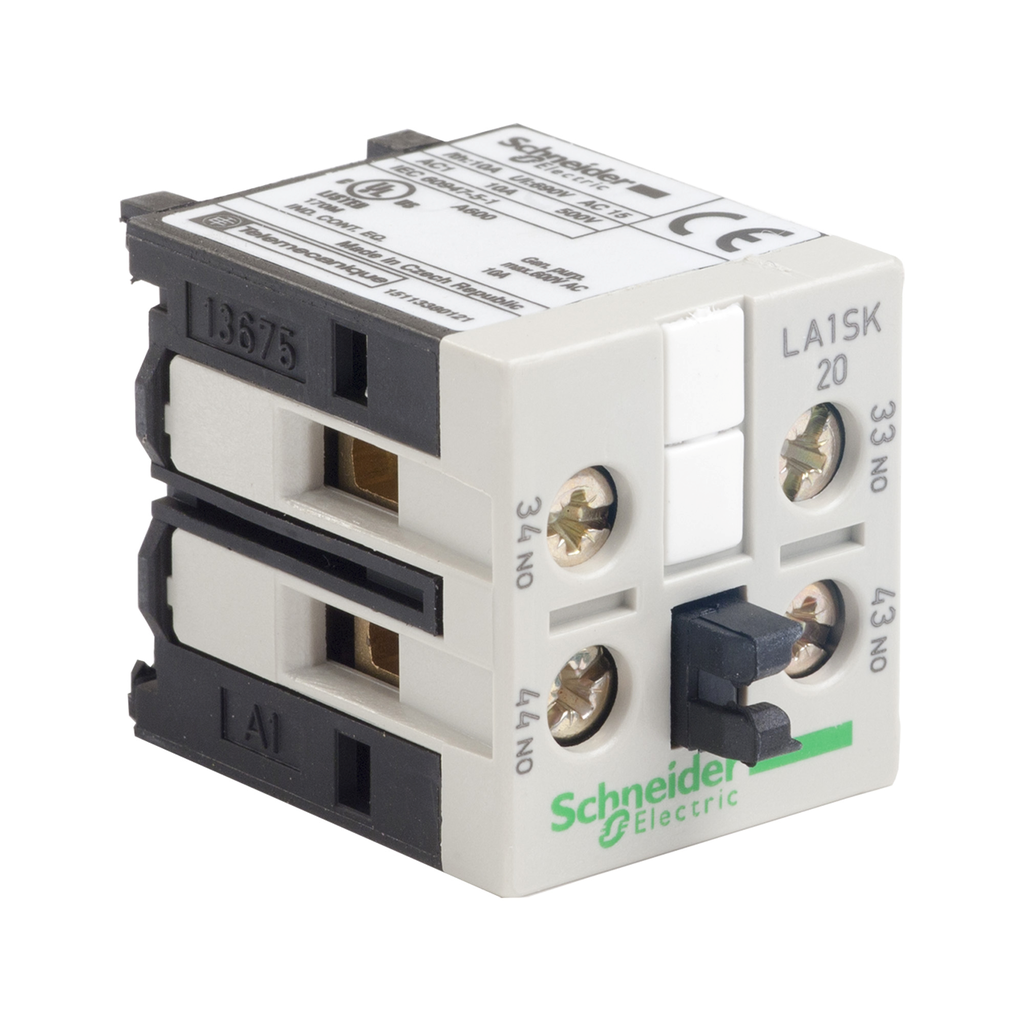

LA1SK20
TeSys SK, auxiliary contact block, 2NO
TeSys SK instantaneous auxiliary contact block, for mini contactors LC1SK, LP1SK and mini control relays CA2SK, CA3SK. It provides 2NO contacts rated up to 10A/690V AC, connection by screw clamp terminals. Front mounting by clip-on, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Or Component Type | auxiliary contact block |
|---|---|
| Connections - Terminals |
|
| Range | TeSys |
| Pole Contact Composition | 2 NO |
| Product Compatibility | LC1SK |
| Auxiliary Contacts Operation | instantaneous |
| Device Short Name | LA1SK |
| Warranty | 18 months |
| [Ith] Conventional Free Air Thermal Current | 10 A 55 °C |
| [Ue] Rated Operational Voltage | 690 V AC <= 400 Hz |
| Associated Fuse Rating |
|
| Net Weight | 0.022 kg |
| Mounting Location | front side |
| [Ui] Rated Insulation Voltage |
|
| Tightening Torque | 0.8 N.m screw clamp terminals |
| Width | 27 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1503003EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1503003EN |
| Eu Rohs Directive | Compliant |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -20-50 °C |
| Standards |
|
| Ip Degree Of Protection | IP2X |
| Ambient Air Temperature For Storage | -50-70 °C |
| Protective Treatment | TC IEC 60068 |
| Operating Altitude | 6561.68 ft (2000 m) without derating |
