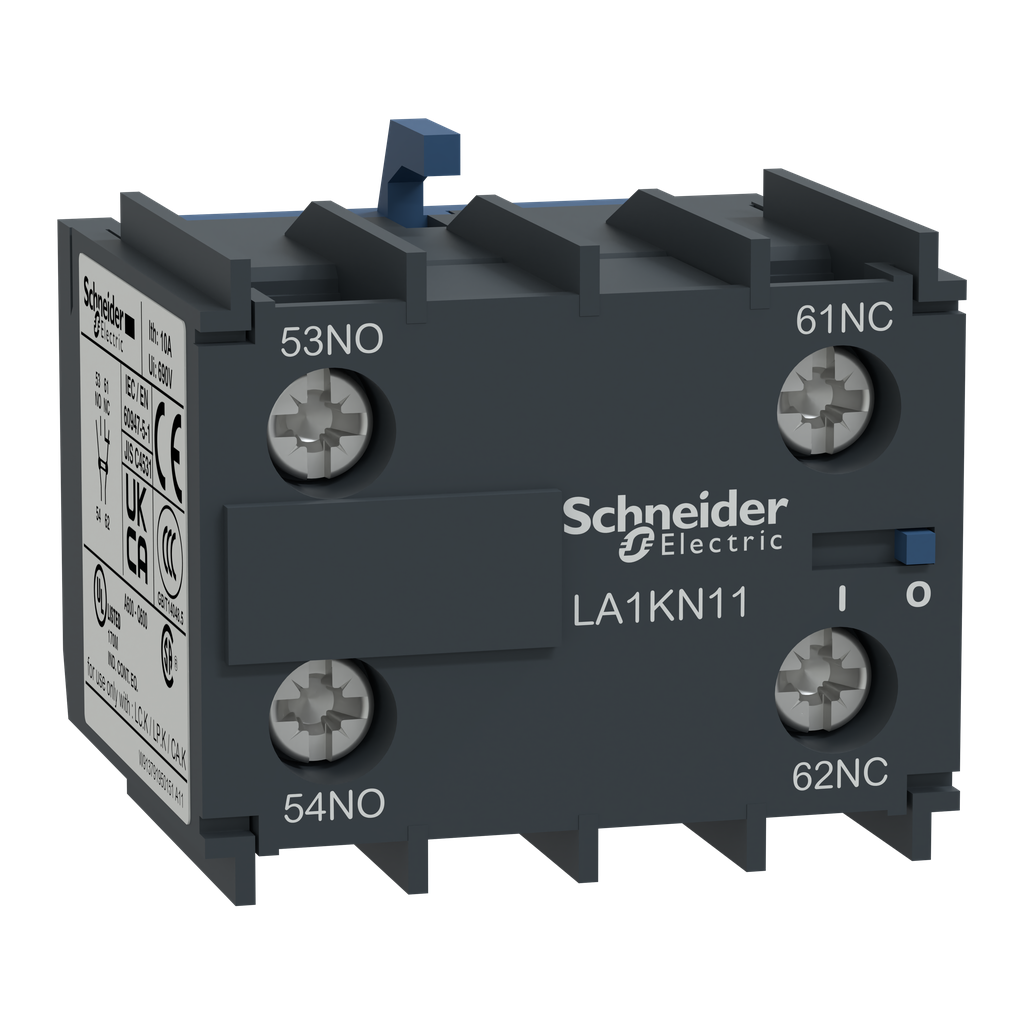

LA1KN11 - Auxiliary contact block, TeSys K, 1NO 1NC, front mounting, screw clamp terminals

LA1KN11

Auxiliary contact block, TeSys K, 1NO+1NC, front mounting, screw clamp terminals

LA1KN11 is a Schneider Electric instantaneous auxiliary contact block for TeSys K contactors. It provides 1NO+1NC contacts rated up to 10A 690V AC, connection by screw clamp terminals. Easy clip-on mounting on front, it procures high reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC) and Green Premium compliant (RoHs/Reach). Multi standards certified (IEC, UL, CSA, CCC), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	CB Scheme CCC UL CSA CE UKCA
[Ith] Conventional Free Air Thermal Current	10 A 50 °C
Standards	EN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5 JIS C8201-5-1
[Ue] Rated Operational Voltage	690 V AC 25...400 Hz
Range Compatibility	TeSys K LC1K TeSys K CA2K TeSys K CA3K TeSys K CA4K
Product Or Component Type	auxiliary contact block
Product Name	TeSys K
Range	TeSys
Mounting Location	front
Pole Contact Composition	1 NO + 1 NC
[Ui] Rated Insulation Voltage	690 V IEC 60947-5-1 600 V UL 60947-5-1 600 V CSA C22.2 No 60947-5-1
Auxiliary Contacts Operation	instantaneous
Device Short Name	LA1
Warranty	18 months
Permissible Short-Time Rating	80 A 1 s 60 A 500 ms 110 A 100 ms
Minimum Switching Current	5 mA
Height	30 mm
Non Overlap Distance	0.5 mm
Insulation Resistance	> 10 MOhm
Irms Rated Making Capacity	110 A <= 690 V AC IEC 60947
Associated Fuse Rating	10 A gG <= 690 V IEC 60947
Net Weight	0.045 kg
Connections - Terminals	screw clamp terminals 1 0.34-1.5 mm²flexible with cable end screw clamp terminals 1 0.75-4 mm²flexible without cable end screw clamp terminals 1 1.5-4 mm²rigid screw clamp terminals 2 0.34-1.5 mm²flexible with cable end screw clamp terminals 2 0.75-4 mm²flexible without cable end screw clamp terminals 2 1.5-4 mm²rigid
Minimum Switching Voltage	17 V
Tightening Torque	1.3 N.m Philips No 2 1.3 N.m pozidriv No 2
Width	38 mm
Depth	35 mm
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2106022
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs Directive	Compliant
Ambient Air Temperature For Operation	-25-50 °C
Ip Degree Of Protection	IP20 conforming to IEC 60529
Ambient Air Temperature For Storage	-50-80 °C
Environmental Characteristic	normal environment
Protective Treatment	TC IEC 60068
Operating Altitude	6561.68 ft (2000 m)
