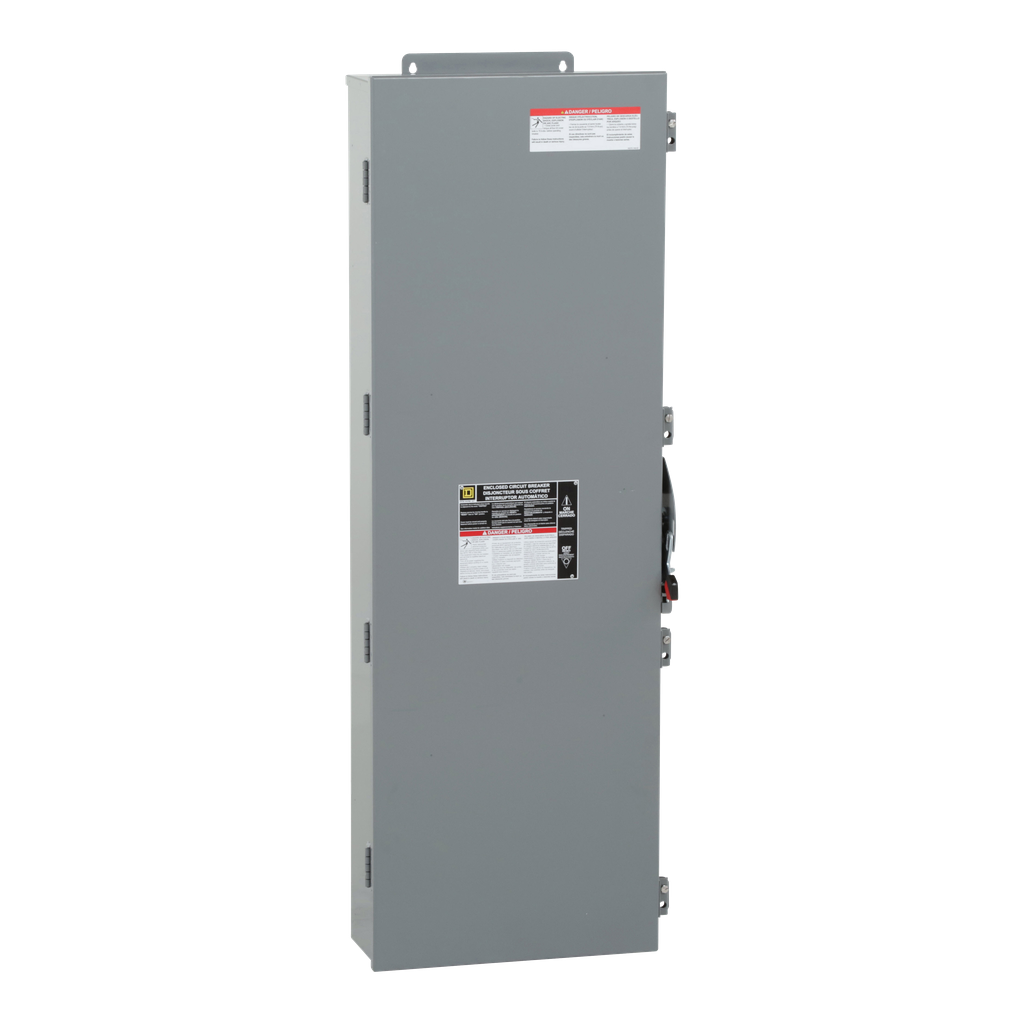

Circuit breaker enclosure, PowerPacT L, 250A to 600A, 3 pole, NEMA 12/3R, without knockouts
Industrial and residential Square D circuit breaker enclosures designed to be tough, reliable and provide exceptional performance in the most grueling conditions. The short circuit current rating of the enclosed circuit breakers is equal to the rating of the circuit breaker installed unless otherwise noted. The enclosure is not compatible with earth-leakage or ground-fault modules, H, J-frame circuit breakers with MicroLogic trip units can be used with these enclosure without communication accessories and trip unit is not accessible or visible Encloser acceptes 80 % and 100% (up to 400A) rated 3 poles 250A to 600A circuit breakers. This NEMA12/3R s enclosure without knockouts has dimensions as Height of 57.5 inch, Width of 20.38 inch and Depth of 8.25 inch.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Circuit Breaker Type |
|
|---|---|
| Product Destination | circuit breaker L-Frame 3P |
| Line Rated Current | 250-600 A |
| Height | 1461 mm |
| Poles Description | 3P |
| Enclosure Material | steel |
| Width | 518 mm |
| Depth | 210 mm |
| Net Weight | 49.89 kg |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1408006EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free plastic parts product |
| Product Certifications |
|
