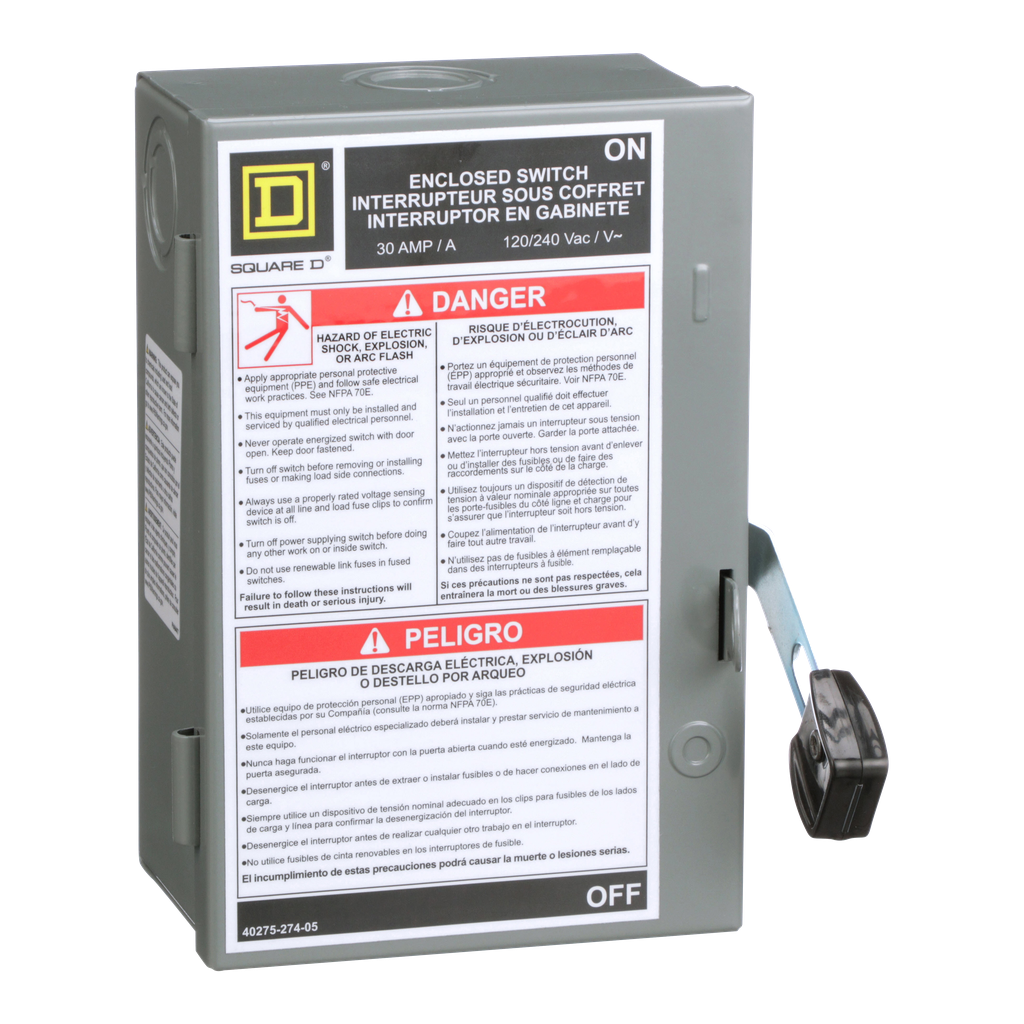

Safety switch, light duty, fusible, 30A, 3 wire, 2 poles, 1 neutral, 240VAC, Type 1
Light duty safety switches are ideal for home applications when disconnecting power to workshops, hobby rooms, furnaces and garages. The Square D light duty enclosed switch is ideal for home applications in disconnecting power to workshops, hobby rooms, furnaces, and garages. The light duty safety switch has visible blades and a grounding kit as standard features. This light duty single throw safety switch is a two pole, 30A, fusible disconnect with a 240VAC voltage rating. This switch has a factory installed neutral and is a NEMA 1 enclosure and is surface mounted. This safety switch accepts H or J fuses only. This switch comes with lugs suitable for aluminum or copper conductors. This safety switch accepts H or J fuses only. These light duty switches are UL listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Series Name | light duty |
|---|---|
| Disconnector Device Type | fusible disconnect |
| Nema Degree Of Protection | NEMA 1 |
| Line Rated Current | 30 A |
| Product Or Component Type | Single Throw Safety Switch |
| Device Composition | neutral (factory installed) |
| Phase | 3 phase |
| Device Application |
|
| Number Of Poles | 2 |
| [Ue] Rated Operational Voltage | 240 V AC |
| Warranty | 18 months |
| Height | 7.63 in |
| Device Mounting | surface |
| Tightening Torque |
|
| Fuse Type | H or J |
| Awg Gauge |
|
| Width | 6.13 in |
| Depth | 4 in |
| Short-Circuit Current | 10 kA |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1310005EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Product Certifications | UL listed file E2875 |
