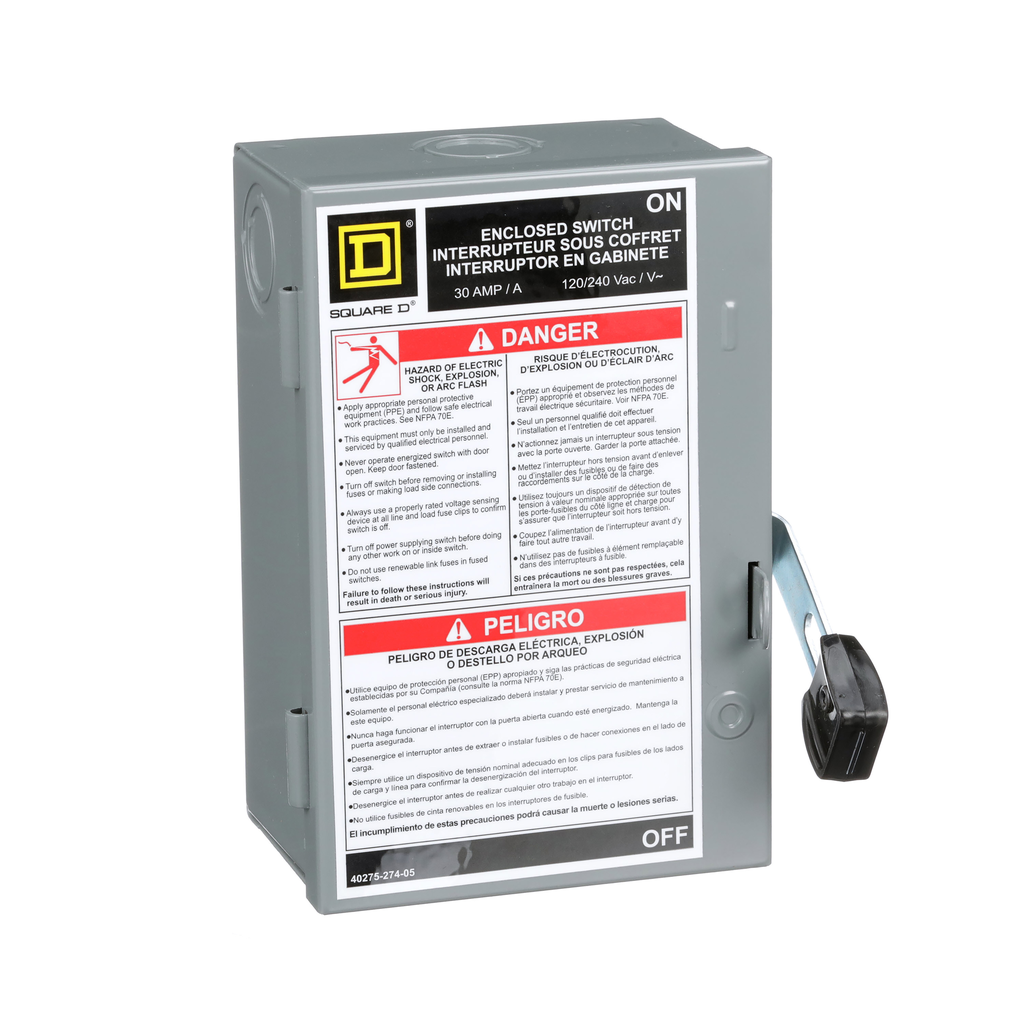

Safety switch, light duty, fusible, 30A, 3 wire, 2 poles, 1 neutral, 120VAC, Type 1
Light duty safety switches are ideal for home applications when disconnecting power to workshops, hobby rooms, furnaces and garages. The Square D light duty enclosed switch is ideal for home applications in disconnecting power to workshops, hobby rooms, furnaces, and garages. The light duty safety switch has visible blades and a grounding kit as standard features. This light duty single throw safety switch is a two pole, 30A, fusible disconnect with a 240VAC voltage rating. This switch has a factory installed neutral and is a NEMA 1 enclosure and is surface mounted. This safety switch accepts plug fuses only. This switch comes with lugs suitable for aluminum or copper conductors. This safety switch accepts plug fuses only. These light duty switches are UL listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Disconnector Device Type | fusible disconnect |
|---|---|
| Product Or Component Type | Single Throw Safety Switch |
| Phase | 3 phase |
| Series Name | light duty |
| Nema Degree Of Protection | NEMA 1 |
| Line Rated Current | 30 A |
| Device Composition | neutral (factory installed) |
| Device Application |
|
| Number Of Poles | 2 |
| [Ue] Rated Operational Voltage | 240 V AC |
| Warranty | 18 months |
| Height | 7.63 in |
| Device Mounting | surface |
| Tightening Torque |
|
| Short-Circuit Current | 10 kA |
| Net Weight | 1.36 kg |
| Fuse Type | plug |
| Awg Gauge |
|
| Width | 6.13 in |
| Wiring Configuration | 3-wire |
| Depth | 4 in |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1310005EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Product Certifications | UL listed file E2875 |
