KDF3PZ
Handles and front plates,TeSys Control,red handle,yellow front,without padlocking,4 screws fixing

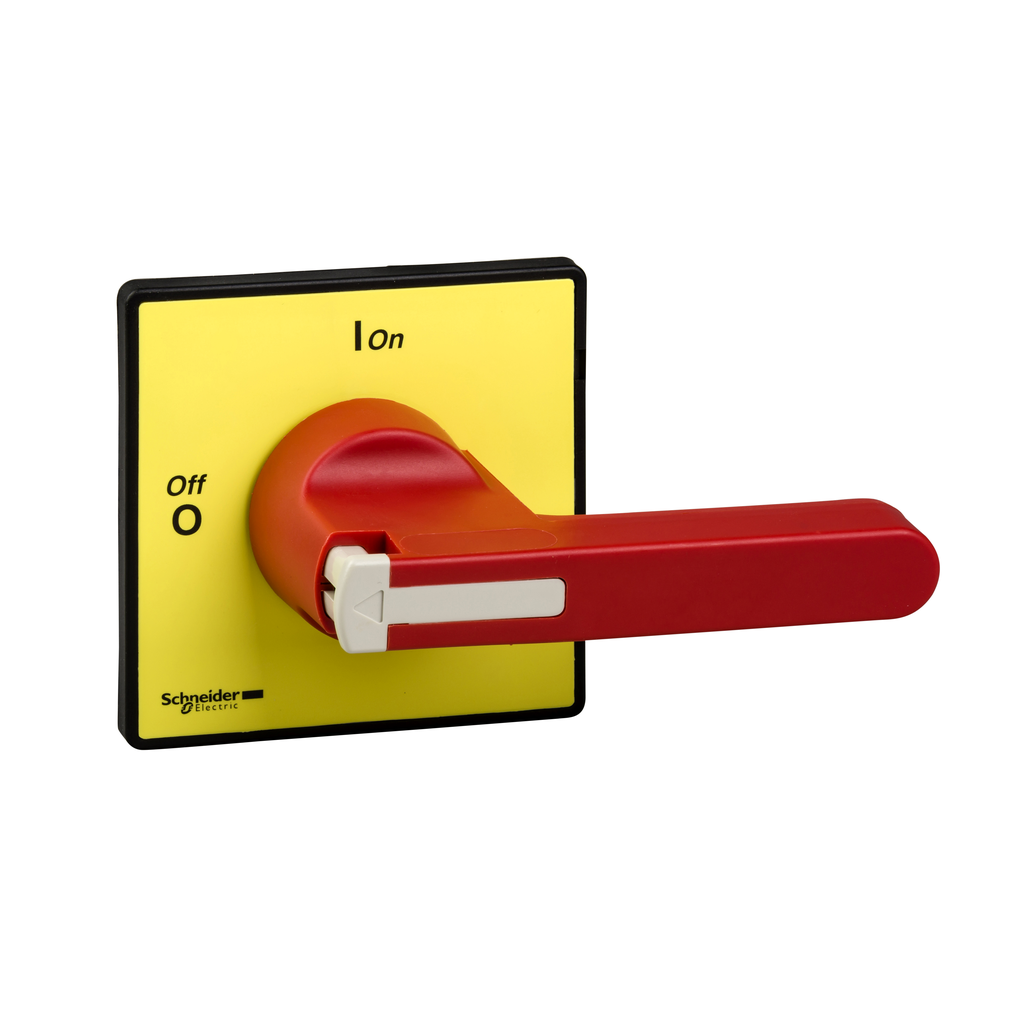

KDF3PZ is an operating handle for TeSys Vario switch-disconnector from Schneider Electric. It provides a red long not padlockable handle with a yellow 90x90mm front plate for mounting on door with 4 screw fixing. It operates V5 and V6 switch bodies directly or through a shaft extension. Intended for main and emergency stop usage, it ensures IP65 to the mounting. Front plate with I-O indicators and with 4 holes fixing, it ensures an IP65 protection (NEMA type 1 and 12) to the mounting. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Handle Colour | red |
|---|---|
| Product Or Component Type | rotary handle |
| Range | TeSys |
| Product Compatibility |
|
| Device Short Name | KDF3 |
| Warranty | 18 months |
| Rotary Handle Padlocking | without |
| Height | 90 mm |
| Handle Front Plate Colour | yellow |
| Fixing Mode | by 4 screws |
| Marking | 0 - 1 |
| Base Dimension | 90 x 90 mm |
| Net Weight | 0.16 kg |
| Width | 90 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110227EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant |
| Ip Degree Of Protection | IP65 |
