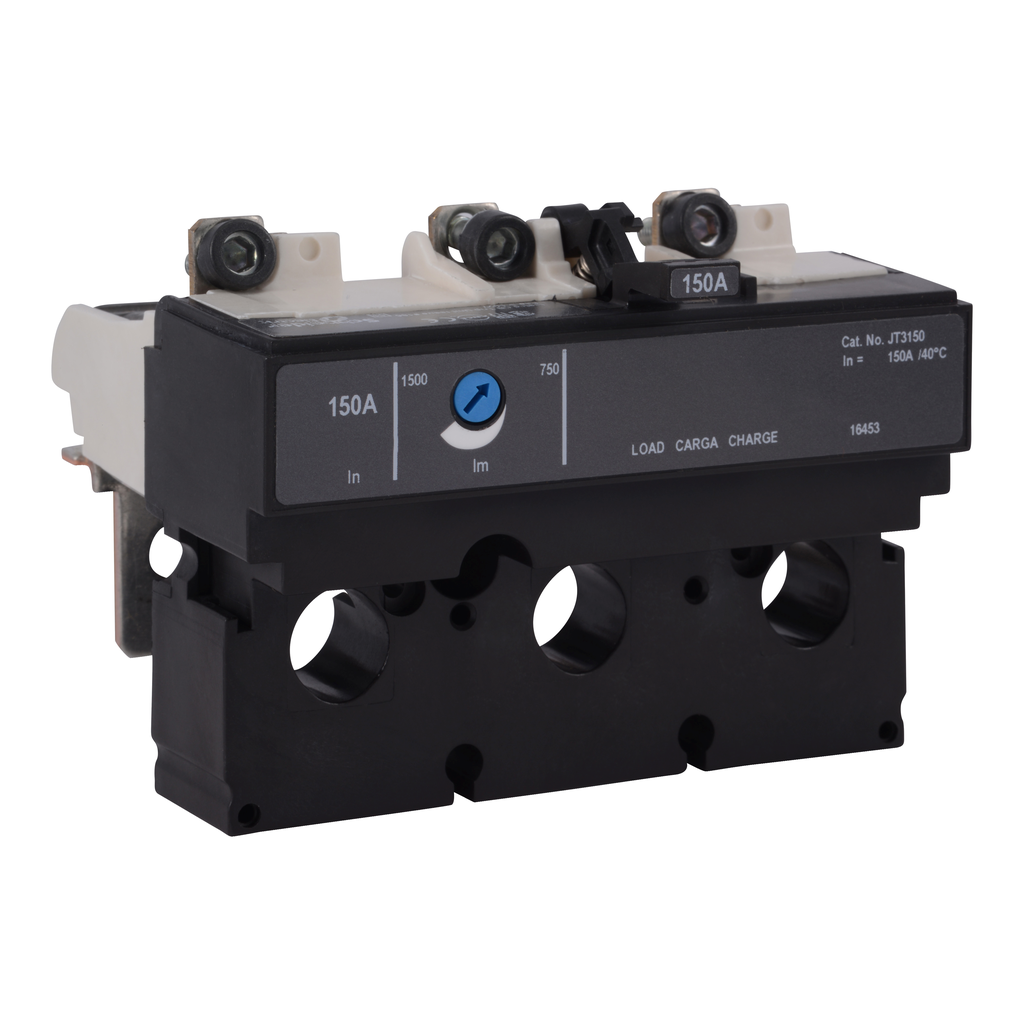

JT3150
Trip unit, PowerPacT J, 150A, 3 pole, 600VAC, thermal magnetic
Specifications
| Circuit Breaker Type | J-frame |
|---|---|
| Trip Unit Rating | 150-150 A |
| Product Or Component Type | trip unit |
| Product Name | PowerPact |
| Trip Unit Technology | thermal-magnetic |
| Warranty | 18 months |
| Tightening Torque |
|
| Number Of Poles | 3 |
| [Ue] Rated Operational Voltage | 600 V AC |
| [Ics] Rated Service Short-Circuit Breaking Capacity | 80 % |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1311008 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1311008EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Product Certifications |
|
