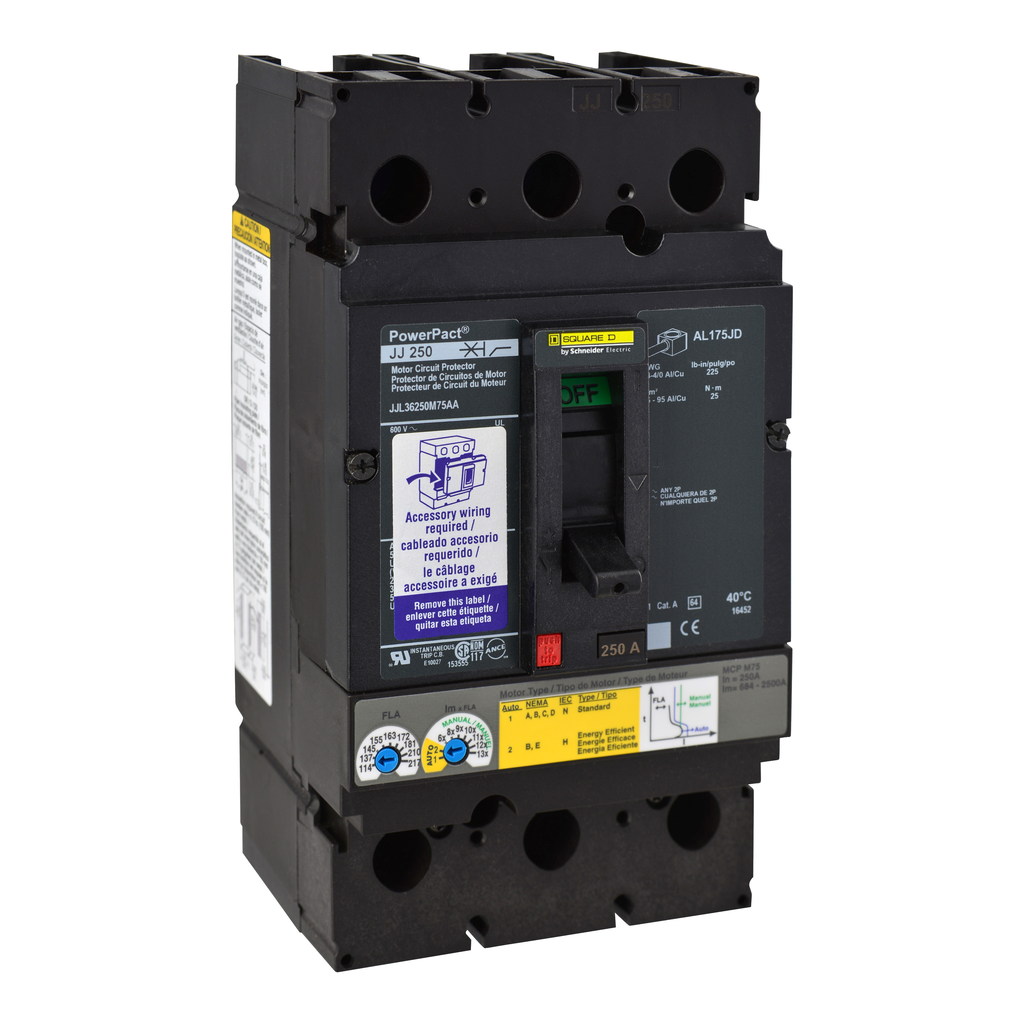

PowerPacT J-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. These motor protectors accept the same accessories and terminals as the PowerPacT J circuit breakers. This unit has lugs on both the line and load side. This unit includes a factory installed 1A/1B auxiliary switch. This PowerPacT J, 250A, 3 pole, motor protector has a breaking capacity of 25kA at 600VAC. The breaker has a continuous current rating of 80%. PowerPacT J motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
Brand: Schneider Electric
Add to Quote CatalogueProduct Or Component Type | Motor Circuit Protector |
---|---|
Warranty | 18 months |
Mounting Mode | unit mount lug) |
Network Frequency | 50/60 Hz |
Wire Stripping Length | 25 mm |
Terminal Identifier | AL250JD |
Line Rated Current | 250-250 A |
Utilisation Category | category A |
[Ics] Rated Service Breaking Capacity |
|
Long Time Pick-Up Adjustment Range | 0.25...1 x In |
Trip Unit Technology | thermal-magnetic |
[Ith] Conventional Free Air Thermal Current | 117-217 A |
Height | 191 mm |
Continuous Current Rating | 80 % |
Breaking Capacity |
|
[Ui] Rated Insulation Voltage | 750 V IEC 60947-2 |
Suitability For Isolation | yes IEC 60947-2 |
Communication Interface | Modbus |
[Ue] Rated Operational Voltage | 600 V AC 50/60 Hz IEC 60947-3 |
Tightening Torque | 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil) |
Mounting Support | lug |
Breaking Capacity Code | J |
Accessory / Separate Part Type | auxiliary switch 24 V AC/DC 1 NO + 1 NC cover frame |
Magnetic Tripping Current | 2500-2500 A |
Poles Description | 3P |
Local Signalling | switched off (OFF) 1 trip indicator green) |
Number Of Slots |
|
Protection Type |
|
Awg Gauge | AWG 3/0...350 kcmil aluminium/copper terminals |
Width | 104 mm |
Electrical Connection |
|
Depth | 86 mm |
Net Weight | 2.4 kg |
[Uimp] Rated Impulse Withstand Voltage | 8 kV IEC 60947-2 |
Magnetic Hold Current | 1250 A |
Control Type | toggle |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | ENVEOLI2206031EN |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2206031EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Eu Rohs Directive | Compliant |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Ambient Air Temperature For Operation | -2-70 °C |
Pollution Degree | 3 |
Ambient Air Temperature For Storage | -50-85 °C |
Standards |
|
Quality Labels | CE |
Product Certifications |
|
Operating Altitude |
|
Ip Degree Of Protection | front cover IP40 |
