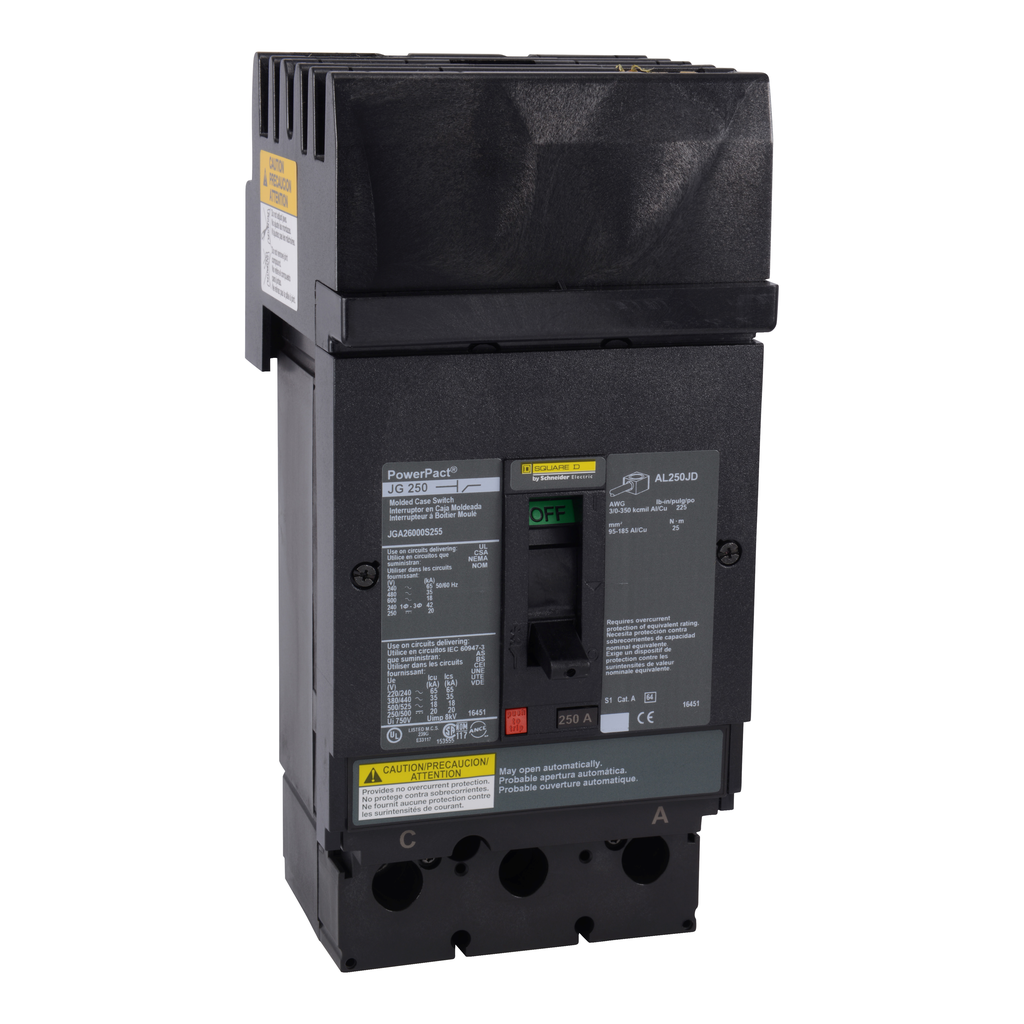

PowerPacT J-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction to, use the same accessories, and offer the same connection possibilities as the J-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. For an overload or a short circuit, it must be protected by an upstream device. PowerPacT J-Frame switches are available in unit mount, I-Line, plug-in, or drawout versions. This switch has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 250A, 2 pole, automatic switch has a short circuit withstand current rating of 18kA at 600VAC. It has a CA phase connection. PowerPacT J automatic switches comply to UL, CSA, NMX, and IEC standards and are CE marked.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | PowerPact J |
---|---|
Product Or Component Type | automatic switch |
Trip Unit Technology | magnetic |
Warranty | 18 months |
Terminal Identifier | AL250JD |
Height | 9.25 in |
Mounting Mode | I-Line |
Short-Circuit Withstand |
|
Tightening Torque | 26-26 N.m 95-185 mm² (AWG 3/0...350 kcmil) |
Breaking Capacity Code | G |
Magnetic Tripping Current | 3125-3125 A |
Poles Description | 2P |
Line Rated Current | 250 A |
Width | 4.5 in |
Electrical Connection |
|
Depth | 5 in |
[Ue] Rated Operational Voltage |
|
Awg Gauge | x AWG 3/0...350 kcmil ( aluminium/copper ) |
Phase Connection | CA |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | ENVEOLI2206031EN |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2206031EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Eu Rohs Directive | Compliant |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Product Certifications |
|
