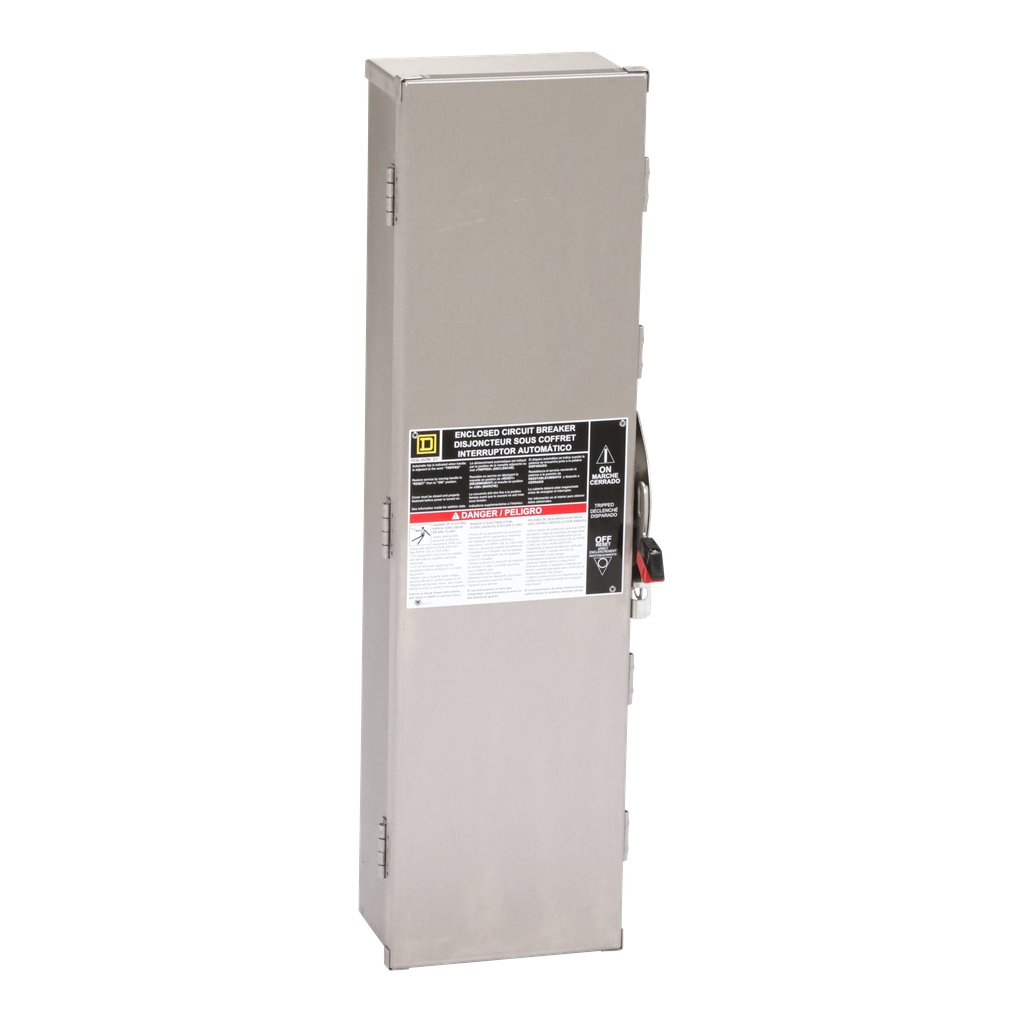

Circuit breaker enclosure, PowerPacT H/J, 15A to 250A, 2 and 3 pole, NEMA 4/4X/5, stainless steel
Industrial and residential Square D circuit breaker enclosures designed to be tough, reliable and provide exceptional performance in the most grueling conditions. The short circuit current rating of the enclosed circuit breakers is equal to the rating of the circuit breaker installed unless otherwise noted. The enclosure is not compatible with earth-leakage or ground-fault modules, H, J-frame circuit breakers with MicroLogic trip units can be used with these enclosure without communication accessories and trip unit is not accessible or visible Encloser acceptes 80 % and 100% rated 2 and 3 poles 15A to 250A circuit breakers. This NEMA 3, 3R, 4, 4X, 5, and 12 enclosure has dimensions as Height of 32.26 inch, Width of 9.72 inch and Depth of 7.94 inch.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Circuit Breaker Type |
|
|---|---|
| Product Destination |
|
| Warranty | 18 months |
| Line Rated Current | 150-250 A |
| Height | 819 mm |
| Poles Description |
|
| Enclosure Material | Stainless Steel |
| Width | 247 mm |
| Depth | 202 mm |
| Net Weight | 12.25 kg |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1408006EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free plastic parts product |
| Product Certifications |
|
Documents
- Spec Sheet
- PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- Removable Padlock Attachment S29370 - Installation Instructions - 48940-232-01 (pdf)
- Class 9422 Dual Cable Operating Mechanisms Installation Instructions - 30072-451-02 (pdf)
- Terminal Cover and Lug Shield Kits for PowerPacT H- or J-Frame and TeSys GV5 Circuit Breakers - 48940-223-02+Rev03 (pdf)
