J250F

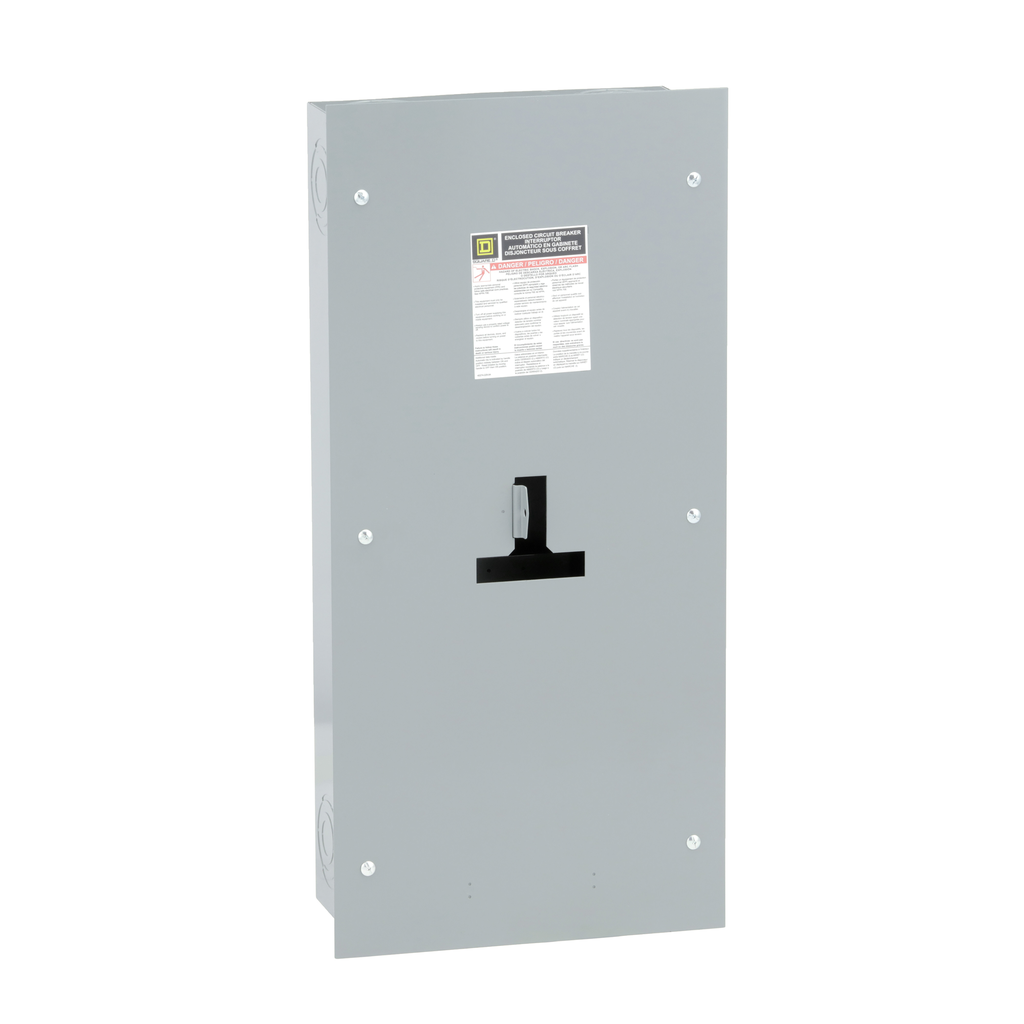

Circuit breaker enclosure, PowerPacT H/J, 15A to 250A, NEMA 1, flush mount, 15.42in W x 32.5in H x 6in D
This PowerPacT circuit breaker enclosure is designed for H-Frame and J-Frame 15A to 250A circuit breakers. PowerPact H and J circuit breaker enclosures accept 80% or 100% rated circuit breakers. Wiring sizing requirements apply when using 100% rated circuit breakers. The enclosures are suitable for service entrance equipment when neutral assembly is installed. The enclosures are not compatible with earth leakage or ground fault modules. This enclosure is a NEMA 1 flush mount of gray baked enamel.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Destination |
|
|---|---|
| Warranty | 18 months |
| Height | 32.5 in |
| Width | 15.42 in |
| Depth | 6 in |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1408006EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free plastic parts product |
Documents
- Spec Sheet
- PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- Removable Padlock Attachment S29370 - Installation Instructions - 48940-232-01 (pdf)
- Terminal Cover and Lug Shield Kits for PowerPacT H- or J-Frame and TeSys GV5 Circuit Breakers - 48940-223-02+Rev03 (pdf)
- Class 9422 Dual Cable Operating Mechanisms Installation Instructions - 30072-451-02 (pdf)
- H150 and J250 NEMA 1 and 3R Enclosed Circuit Breaker Installation Instructions for PowerPacT H- and J-Frame Circuit Breakers - NHA82343_2 (pdf)
