Series Name | heavy duty |
---|---|
Disconnector Device Type | non-fusible disconnect |
Nema Degree Of Protection | NEMA 1 steel |
Line Rated Current | 200 A |

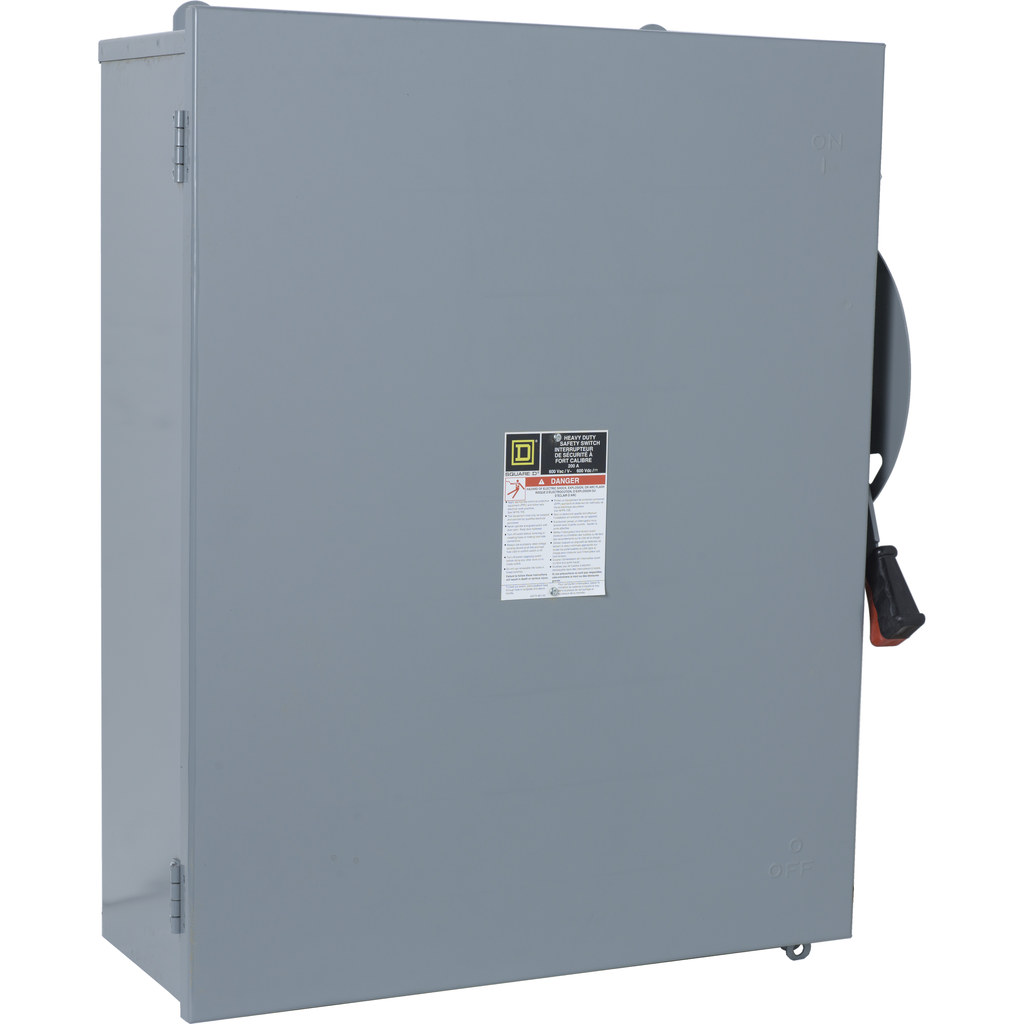

Product Or Component Type | Single Throw Safety Switch |
Device Composition | none |
Phase | 3 phase |
Device Application | heavy application |
Number Of Poles | 4 |
[Ue] Rated Operational Voltage | 600 V AC/DC |
Warranty | 18 months |
Height | 29 in |
Device Mounting | surface |
Tightening Torque | 275-275 lbf.in 13.3-127 mm² (AWG 6...250 kcmil) |
Electrical Connection | lugs |
Awg Gauge | AWG 6...250 kcmil copper or aluminium |
Wiring Configuration | 4-wire |
Width | 24.88 in |
Depth | 8.75 in |
Net Weight | 36.29 kg |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1305032 |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Toxic Heavy Metal Free | Yes |
Eu Rohs Directive | Compliant |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Product Certifications | UL listed file E2875 |
