Series Name | heavy duty |
---|---|
Disconnector Device Type | non-fusible disconnect |
Nema Degree Of Protection | NEMA 3R galvannealed steel |
Line Rated Current | 1200 A |

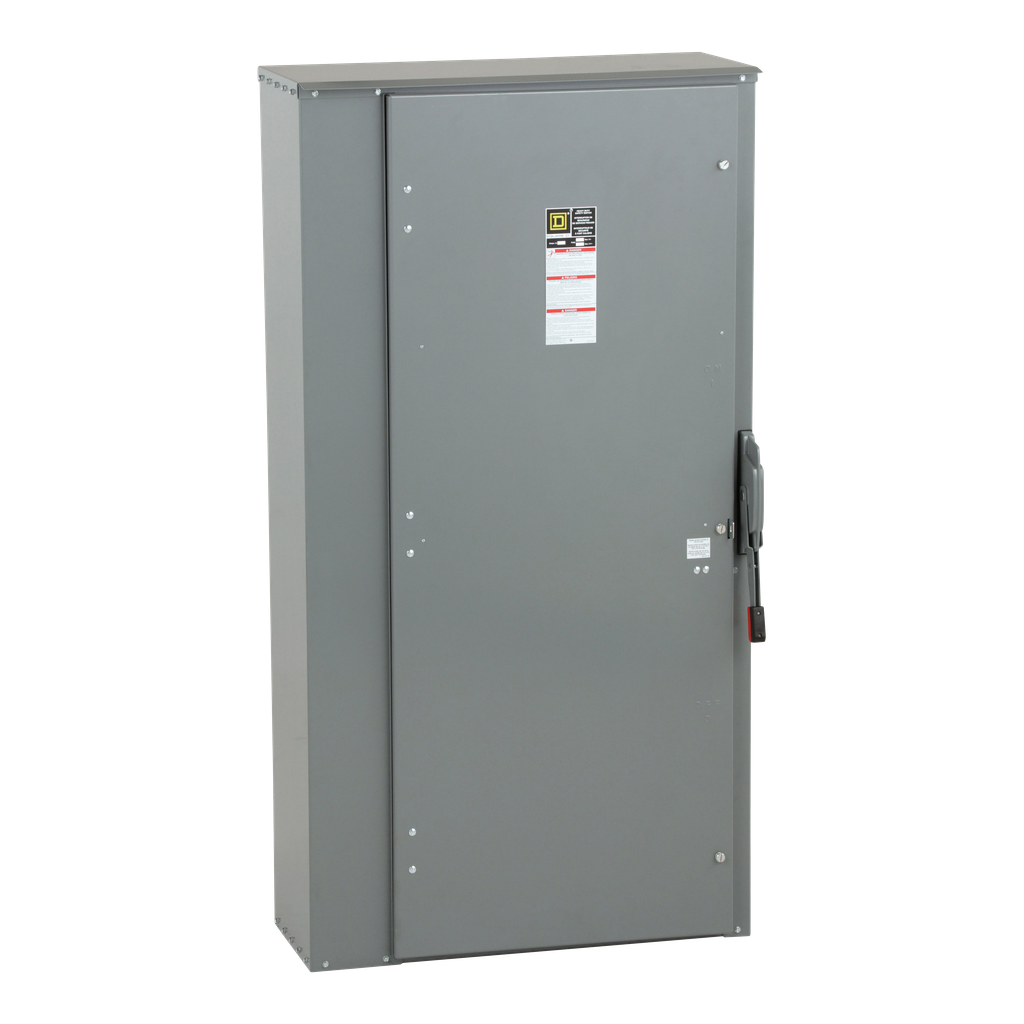

Product Or Component Type | Single Throw Safety Switch |
Device Composition | none |
Phase | 3 phase |
Device Application | heavy application |
Number Of Poles | 3 |
[Ue] Rated Operational Voltage | 600 V AC/DC |
Warranty | 18 months |
Height | 69.13 in |
Device Mounting | surface |
Tightening Torque | 375-375 lbf.in 85.01-380 mm² (AWG 3/0...750 kcmil) |
Electrical Connection | lugs |
Awg Gauge | AWG 3/0...750 kcmil copper or aluminium |
Width | 36.62 in |
Wiring Configuration | 3-wire |
Depth | 17.75 in |
Net Weight | 165.1 kg |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1405016EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Eu Rohs Directive | Compliant |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Halogen Content Performance | Halogen free plastic parts product |
Product Certifications | UL listed file E2875 |
