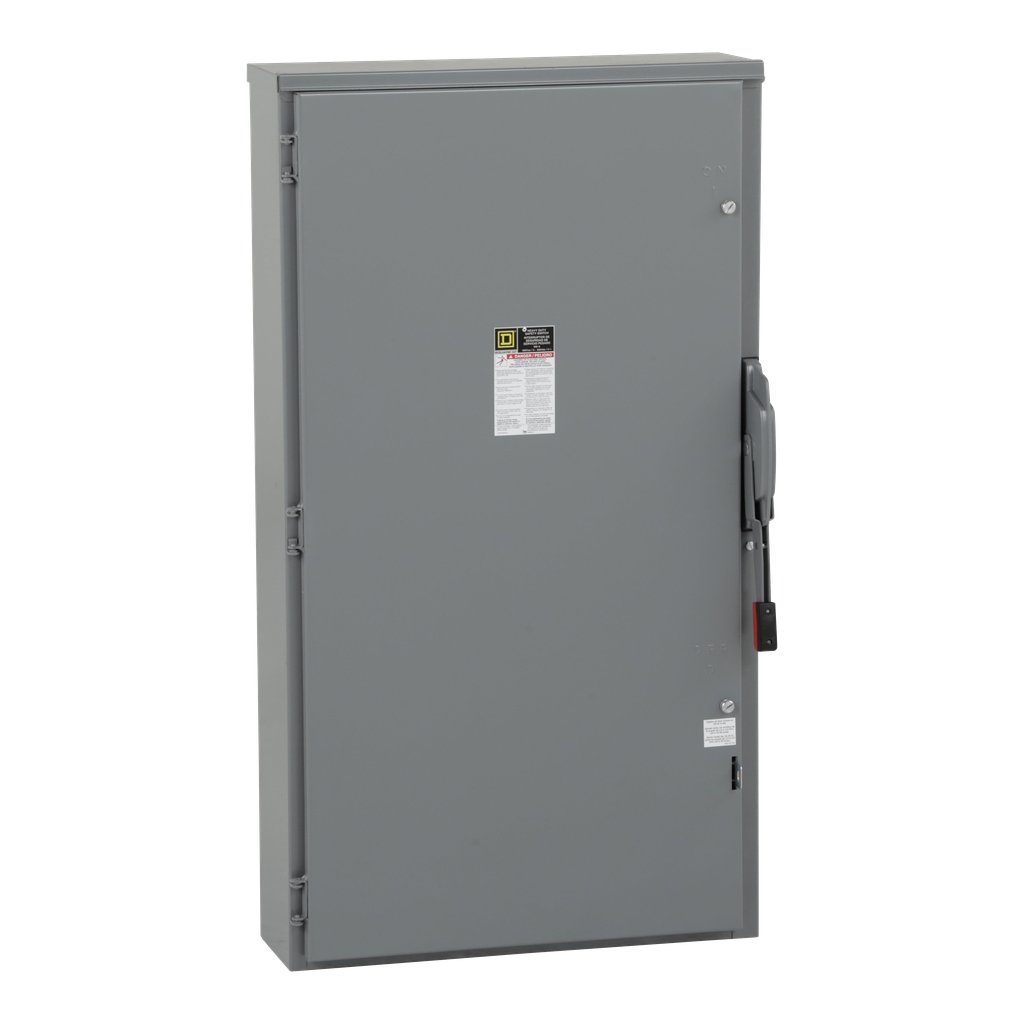

HU366NR
Safety switch, heavy duty, non fusible, 600A, 3 pole, 500hp, 600VAC/DC, NEMA 3R, neutral factory installed
Specifications
| Series Name | heavy duty |
|---|---|
| Disconnector Device Type | non-fusible disconnect |
| Nema Degree Of Protection | NEMA 3R galvannealed steel |
| Line Rated Current | 600 A |
| Product Or Component Type | Single Throw Safety Switch |
| Device Composition | neutral (factory installed) |
| Phase | 3 phase |
| Device Application | heavy application |
| Number Of Poles | 3 |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Warranty | 18 months |
| Height | 50.31 in |
| Device Mounting | surface |
| Tightening Torque | 375-375 lbf.in (AWG 3/0...500 kcmil) |
| Electrical Connection | lugs |
| Awg Gauge | AWG 3/0...500 kcmil copper or aluminium |
| Wiring Configuration | 4-wire (3PH + N) |
| Width | 27.88 in |
| Depth | 10.13 in |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1404026EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free plastic parts product |
| Product Certifications | UL listed file E2875 |
