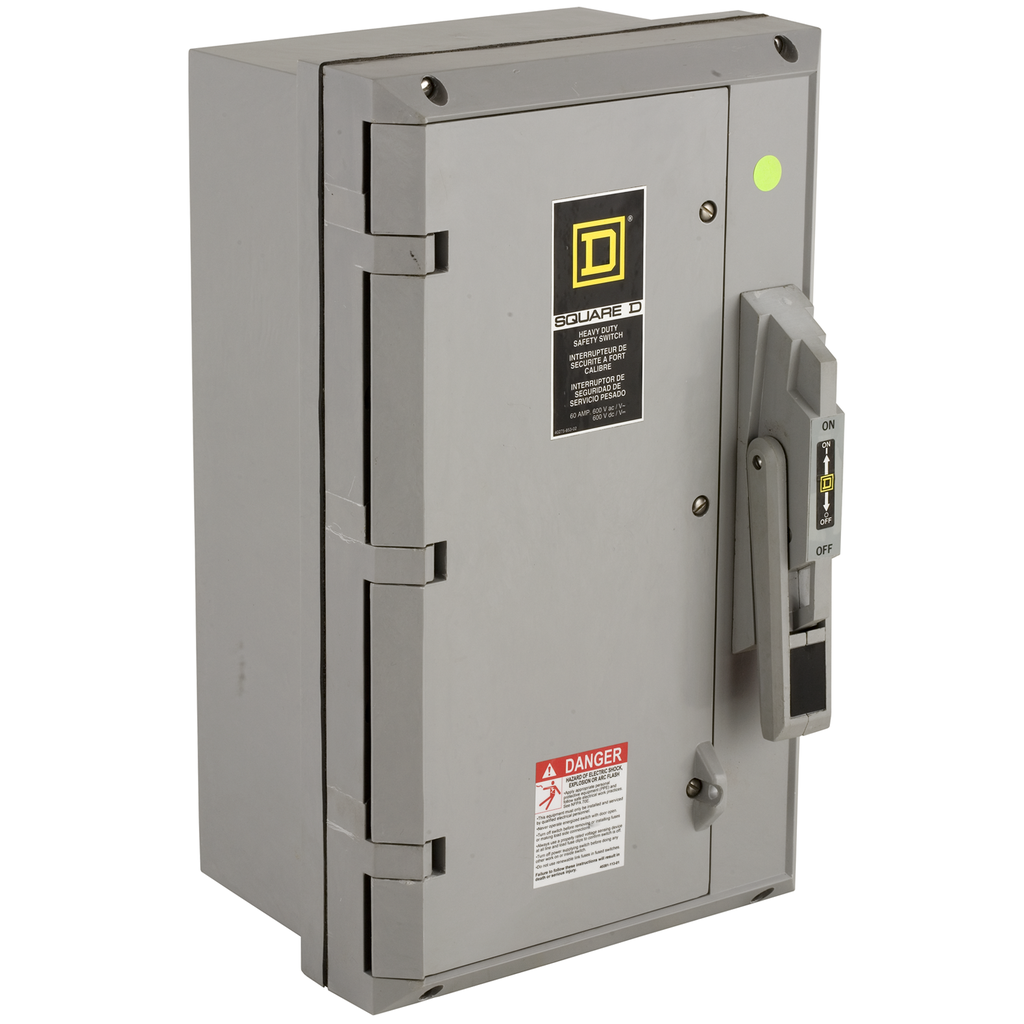

HU363DX - Safety switch, heavy duty, non fusible, 100A, 3 pole, 100hp, 600VAC/DC, NEMA 4X krydonTM fiberglass polyester

HU363DX

Add to Quote Catalogue

Series Name	heavy duty
Disconnector Device Type	non-fusible disconnect
Nema Degree Of Protection	NEMA 4X Krydon - compression molded fiberglass reinforced polyester
Line Rated Current	100 A
Product Or Component Type	Single Throw Safety Switch
Device Composition	none
Phase	3 phase
Device Application	heavy application
Number Of Poles	3
[Ue] Rated Operational Voltage	600 V AC/DC
Warranty	18 months
Height	25.25 in
Device Mounting	surface
Tightening Torque	50-50 lbf.in (AWG 1...AWG 3/0) 45-45 lbf.in (AWG 6...AWG 4) 40-40 lbf.in 8.367-8.367 mm² (AWG 8) 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
Electrical Connection	lugs
Awg Gauge	AWG 12...AWG 1/0 aluminium AWG 14...AWG 1/0 copper
Wiring Configuration	3-wire
Width	11.4 in
Depth	8.6 in
Net Weight	17.2 kg
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1304031
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Eu Rohs Directive	Compliant
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Certifications	UL listed file E2875
