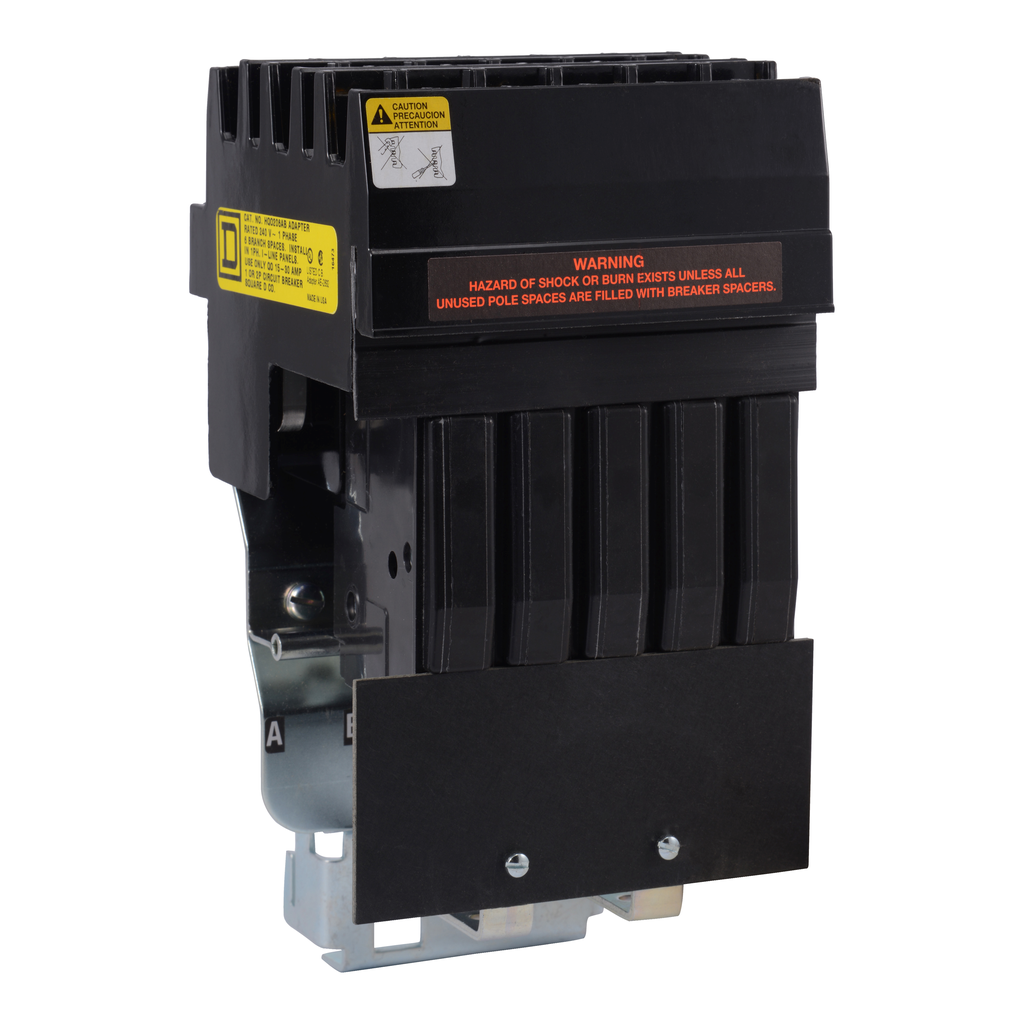

HQO206AB
Distribution panel, QO, for I-Line panelboards, 240V, 30A, 2 pole, AB
Specifications
| Short-Circuit Current | 25 kA |
|---|---|
| Range Of Product | QO |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Line Rated Current | 30 A |
| Product Or Component Type | panel |
| Number Of Spaces | 6 |
| Phase | 1 phase |
| Warranty | 18 months |
| Circuit Breaker Type | QO |
| Awg Gauge | AWG 14...AWG 12 copper or aluminium |
| Phase Connection | AB |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Ambient Air Temperature For Operation |
|
