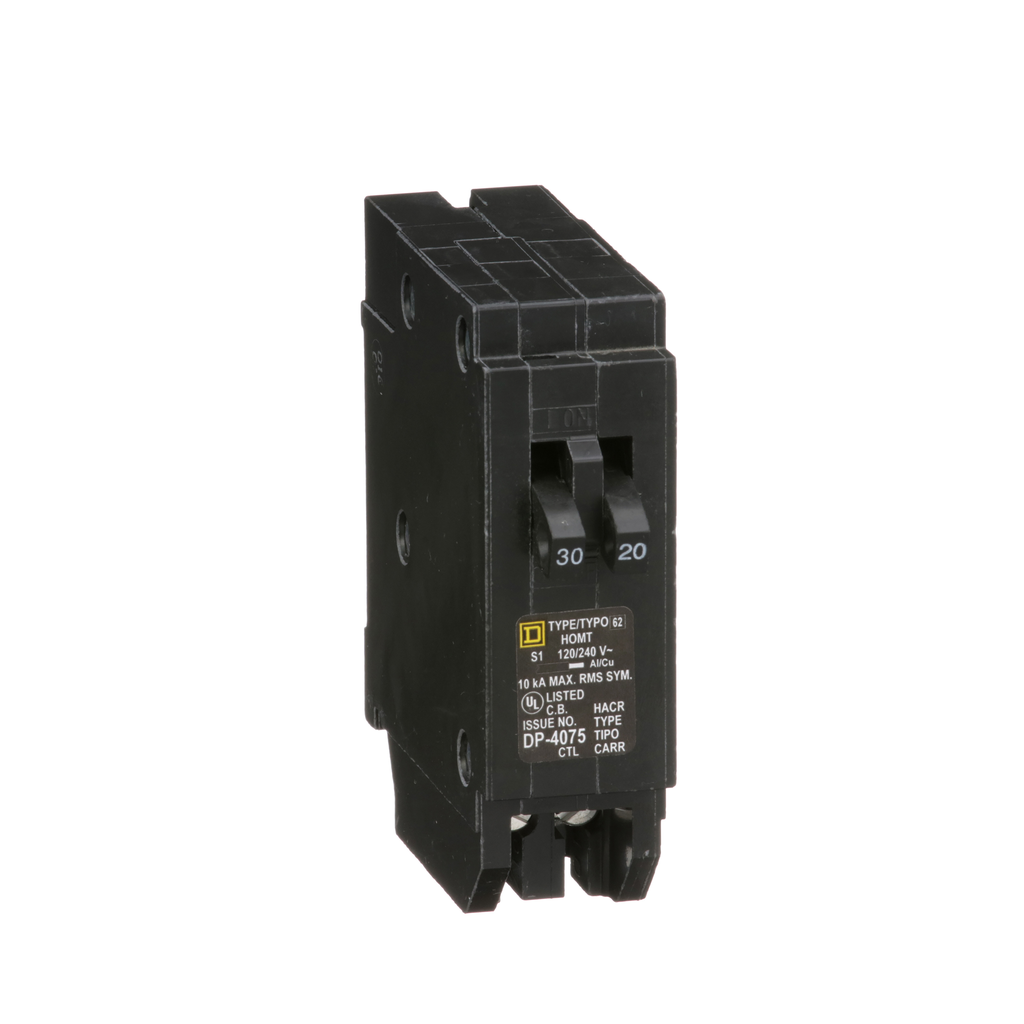

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two single pole thermal magnetic circuit breakers manufactured in tandem. This tandem breaker occupies only one HOM pole space. Each single pole HOMT plug in circuit breaker provides an individual switching and tripping action. This tandem HOM miniature tandem breaker with plug in mounting is rated 30A and 20A at 120/240 V. This circuit breaker provides 10 kA breaking capacity. This tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 1.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueProduct Certifications | UL Listed |
---|---|
Circuit Breaker Type | tandem |
Range Of Product | Homeline |
Number Of Spaces Required | 1 |
Product Or Component Type | miniature circuit-breaker |
Circuit Breaker Application | HACR rated |
Mounting Mode | plug-in |
Short-Circuit Current | 10 kA |
Poles Description | 1P |
Electrical Connection | box lugs |
Line Rated Current |
|
[Ue] Rated Operational Voltage | 120/240 V AC |
Awg Gauge | 1 x AWG 14...AWG 8 ( aluminium/copper ) |
Warranty | Lifetime |
Height | 3.13 in |
Tightening Torque | 4.0-4.0 N.m 2.5-6 mm² (AWG 14...AWG 8) |
Width | 1 in |
Depth | 2.98 in |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1308001 |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Eu Rohs Directive | Compliant |
Ambient Air Temperature For Operation | 40 °C |
