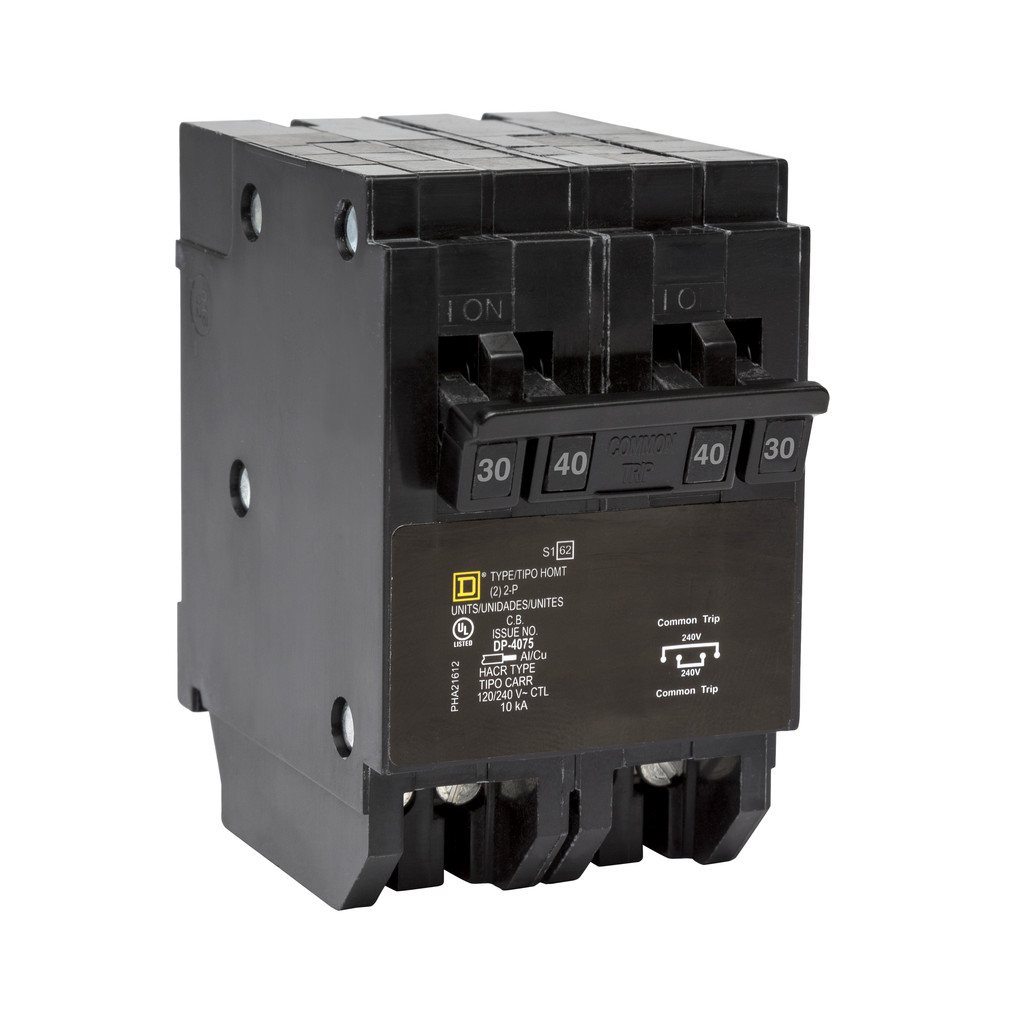

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two tandem 2 pole thermal magnetic circuit breakers manufactured in tandem. This quad tandem breaker occupies two HOM pole spaces. This quad tandem circuit breaker consists of a two pole breaker and a two pole breaker. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. One of the two pole breaker is rated 30A at 120/240 VAC and other two pole breaker is rated 40A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. The 30A two pole breaker of this quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The 40A two pole breaker of this quad tandem breaker will accept 14 AWG to 6 AWG copper or aluminum wire. HOMT tandem breakers are UL Listed. Circuit breaker is consumer packaged.
Brand: Schneider Electric
Add to Quote CatalogueProduct Certifications | UL Listed |
---|---|
Circuit Breaker Type | quad tandem |
Range Of Product | Homeline |
Number Of Spaces Required | 2.0 |
Product Or Component Type | miniature circuit-breaker |
Type Of Packing | consumer packaging |
Circuit Breaker Application | HACR rated |
Mounting Mode | plug-in |
Short-Circuit Current | 10 kA |
Poles Description | 2P |
Electrical Connection | box lugs |
Line Rated Current |
|
[Ue] Rated Operational Voltage | 120/240 V AC |
Awg Gauge |
|
Height | 3.13 in |
Tightening Torque |
|
Width | 1.97 in |
Depth | 3.29 in |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Eu Rohs Directive | Compliant |
Ambient Air Temperature For Operation | 40 °C |
