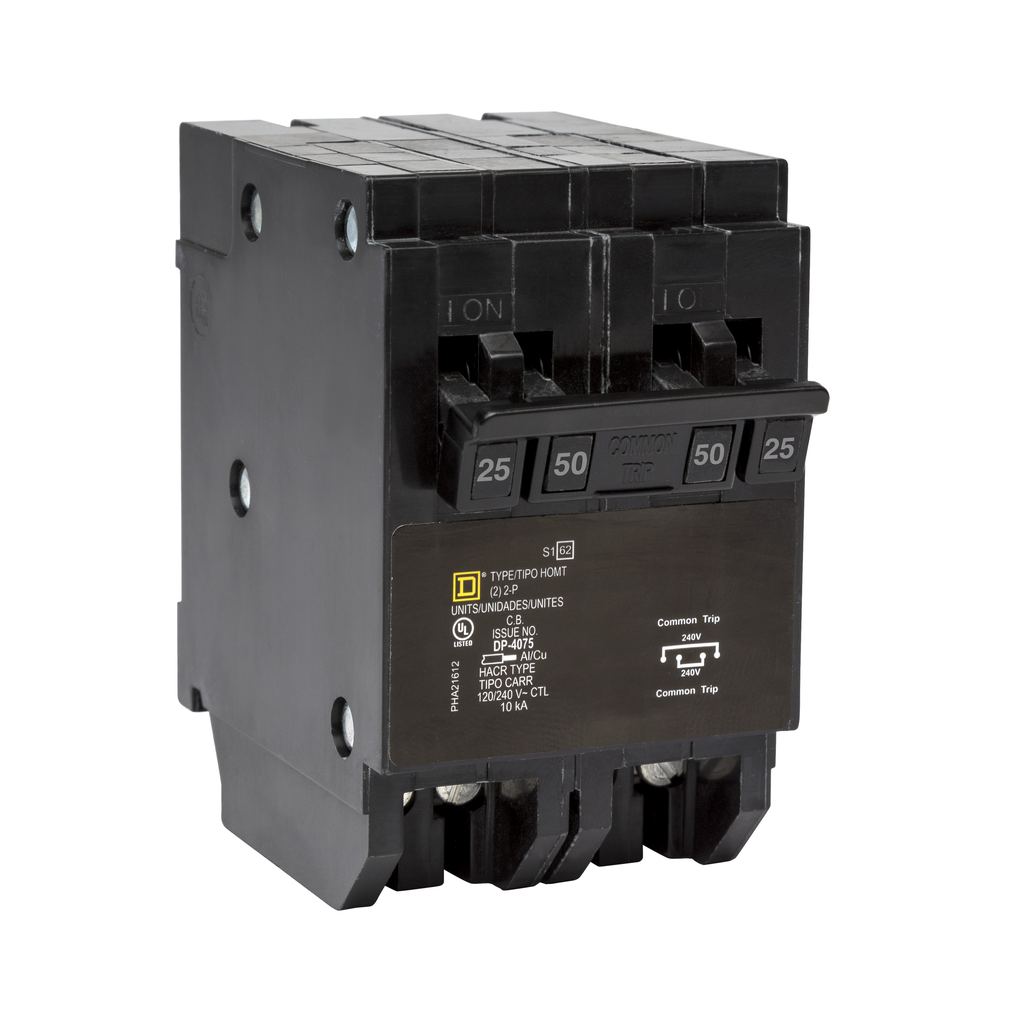

Quad tandem circuit breaker, Homeline, 1 x 2 pole at 25A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two tandem 2 pole thermal magnetic circuit breakers manufactured in tandem. This quad tandem breaker occupies two HOM pole spaces. This quad tandem circuit breaker consists of a two pole breaker and a two pole breaker. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. One of the two pole breaker is rated 25A at 120/240 VAC and other two pole breaker is rated 50A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. The 25A two pole breaker of this quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The 50A two pole breaker of this quad tandem breaker will accept 14 AWG to 6 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 2.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL Listed |
|---|---|
| Circuit Breaker Application | HACR rated |
| Mounting Mode | plug-in |
| Circuit Breaker Type | quad tandem |
| Short-Circuit Current | 10 kA |
| Range Of Product | Homeline |
| Poles Description | 2P |
| Electrical Connection | box lugs |
| Number Of Spaces Required | 2.0 |
| Line Rated Current |
|
| Product Or Component Type | miniature circuit-breaker |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Awg Gauge |
|
| Height | 3.13 in |
| Tightening Torque |
|
| Width | 1.97 in |
| Depth | 3.29 in |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Ambient Air Temperature For Operation | 40 °C |
