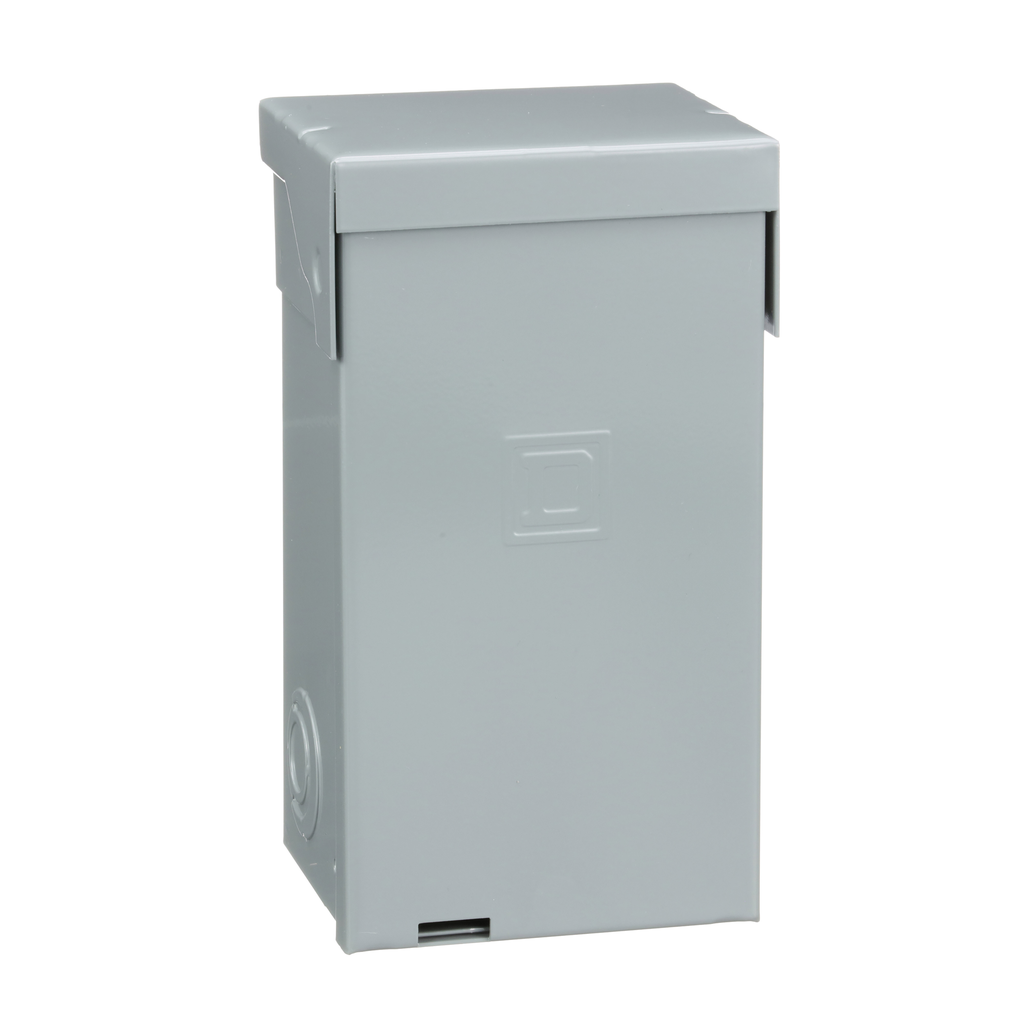

Enclosed circuit breaker, Homeline, 2 pole, 50A, NEMA 3R, ground fault interrupt
Enclosed Devices are designed for reliability and safety. Indoor NEMA type 1 and outdoor NEMA type 3R options are available. Enclosed Devices provide an easy installation for residential and commercial air conditioning systems and other single phase applications. Metallic and non-metallic enclosure options are available as well. This enclosed circuit breaker is 2 pole and 50A. It is rated at NEMA 3R and has ground fault protection. It is used in spa systems. The electrical connections are box lugs. The box lugs will accept a wire range of 8 AWG to 6 AWG copper or aluminum wire. This Homeline load center has a height of 9.37 inches, a width of 4.88 inches, and depth of 4.01 inches. Homeline load centers are UL Listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Homeline |
|---|---|
| Product Or Component Type | enclosed circuit breaker |
| Load Center Type | main lugs |
| Warranty | 18 months |
| Product Certifications |
|
| Height | 238 mm |
| Number Of Circuits | 4 |
| Number Of Spaces | 2 |
| Phase | 1 phase |
| Cover Type | surface cover |
| Ambient Air Temperature For Operation |
|
| Line Rated Current | 50 A |
| Enclosure Material | welded galvannealed steel |
| Width | 124 mm |
| Wiring Configuration | 3-wire |
| Depth | 102 mm |
| Box Number | 1R |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403002 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
