HOMCGK2C
Load center accessory, Homeline, interlock kit, generator circuit breaker, high amp, indoor, clam packaging

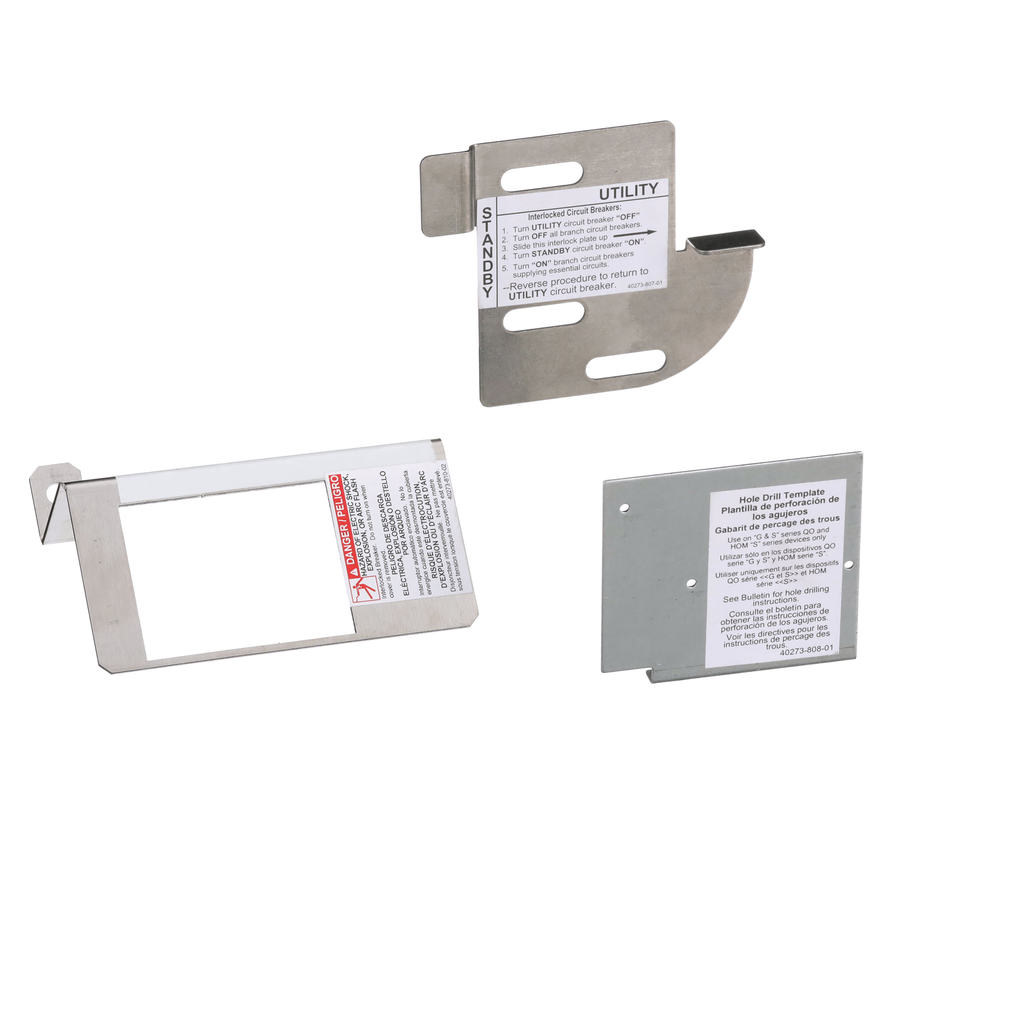

Homeline generator panels are for the manual transfer from utility to generator power. This generator circuit breaker interlock kit is for use on "S" Series NEMA 1 and "S1"Series NEMA 3R Homeline generator load centers. It is used to interlock a QOM2 two pole main circuit breaker of the load center (150A to 225A) with a Homeline two pole (15A to 125A) branch circuit breaker. This interlock kit has a maximum height of 2.5 inches, a maximum width of 4.07 inches and maximum depth of 0.57 inches. This interlock kit is packaged in a clam shell.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Homeline |
|---|---|
| Product Or Component Type | interlock |
| Type Of Packing | clam packaging |
| Device Short Name |
|
| Warranty | Lifetime |
| Height | 5 in |
| Condition Of Use | indoor use |
| Width | 7.3 in |
| Depth | 1.7 in |
| Type Of Installation | indoor |
| Number Of Poles | 2 |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403002 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Documents
- Spec Sheet
- Digest Catalog 01: Load Centers - 0100CT1901_SEC-01 (pdf)
- Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf)
- Square D Homeline Load Centers and Circuit Breakers Brochure - 1170BR1801 (pdf)
- Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf)
- A Guide to Your Square D Electrical Distribution System - Brochure - 0102BR0201 (pdf)
- QO/Homeline Load Center Generator Interlock Installation Instructions - 40273-809-02 (pdf)
