HOMC30U125CW

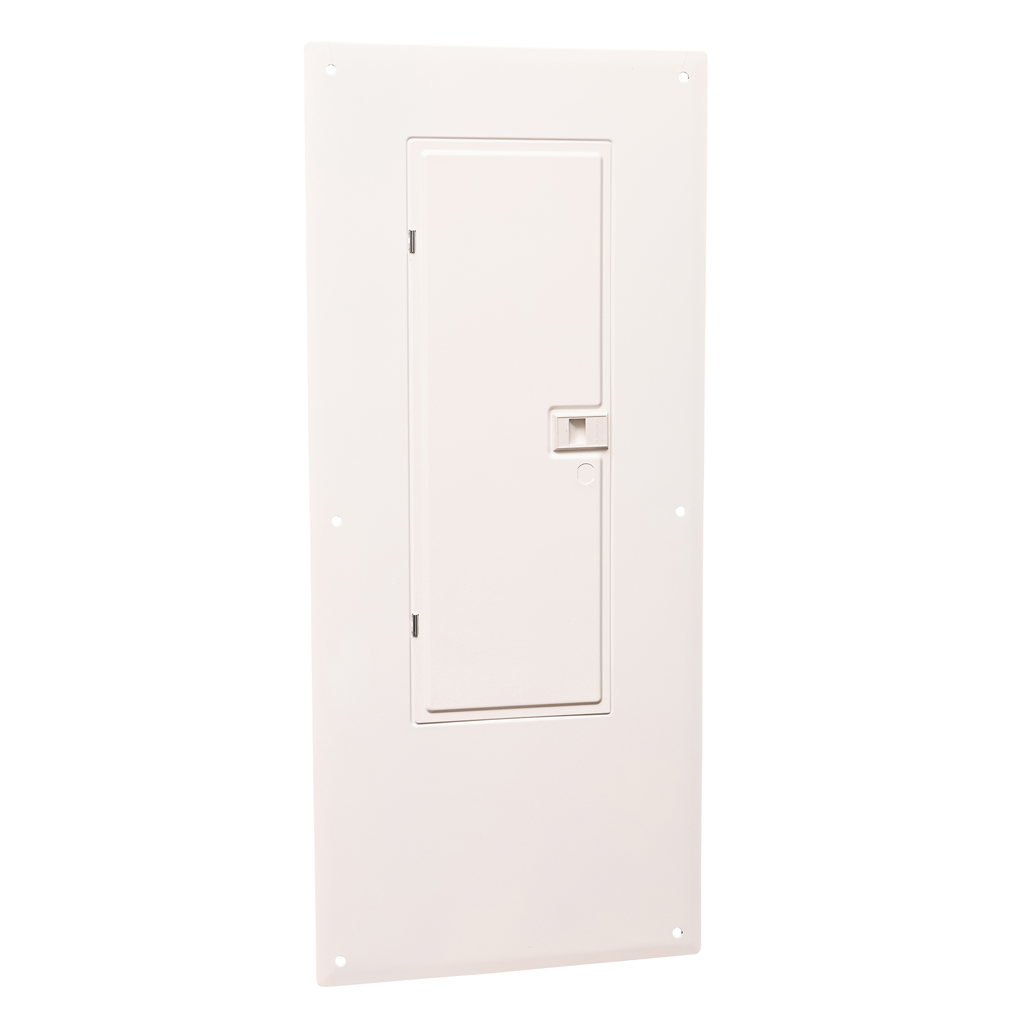

Replacement cover, Homeline, for 30 space load center with 125A mains, combination flush and surface, white
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center NEMA 1 indoor combination flush surface cover is for a load center with 30 spaces. This white load center cover has a height of 34.98 inches and a width of 15.44 inches.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Cover Type | combination flush/surface cover |
|---|---|
| Range Of Product | Homeline |
| Product Or Component Type | Load Center Cover |
| Warranty | Lifetime |
| Height | 34.98 in |
| Width | 15.44 in |
| Number Of Spaces | 30 |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403002 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
Documents
- Spec Sheet
- Digest Catalog 01: Load Centers - 0100CT1901_SEC-01 (pdf)
- Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf)
- Square D Homeline Load Centers and Circuit Breakers Brochure - 1170BR1801 (pdf)
- A Guide to Your Square D Electrical Distribution System - Brochure - 0102BR0201 (pdf)
- Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf)
- QO and Homeline Load Centers and Circuit Breaker Installation Instructions - S1B33894 (pdf)
