HOM70AN

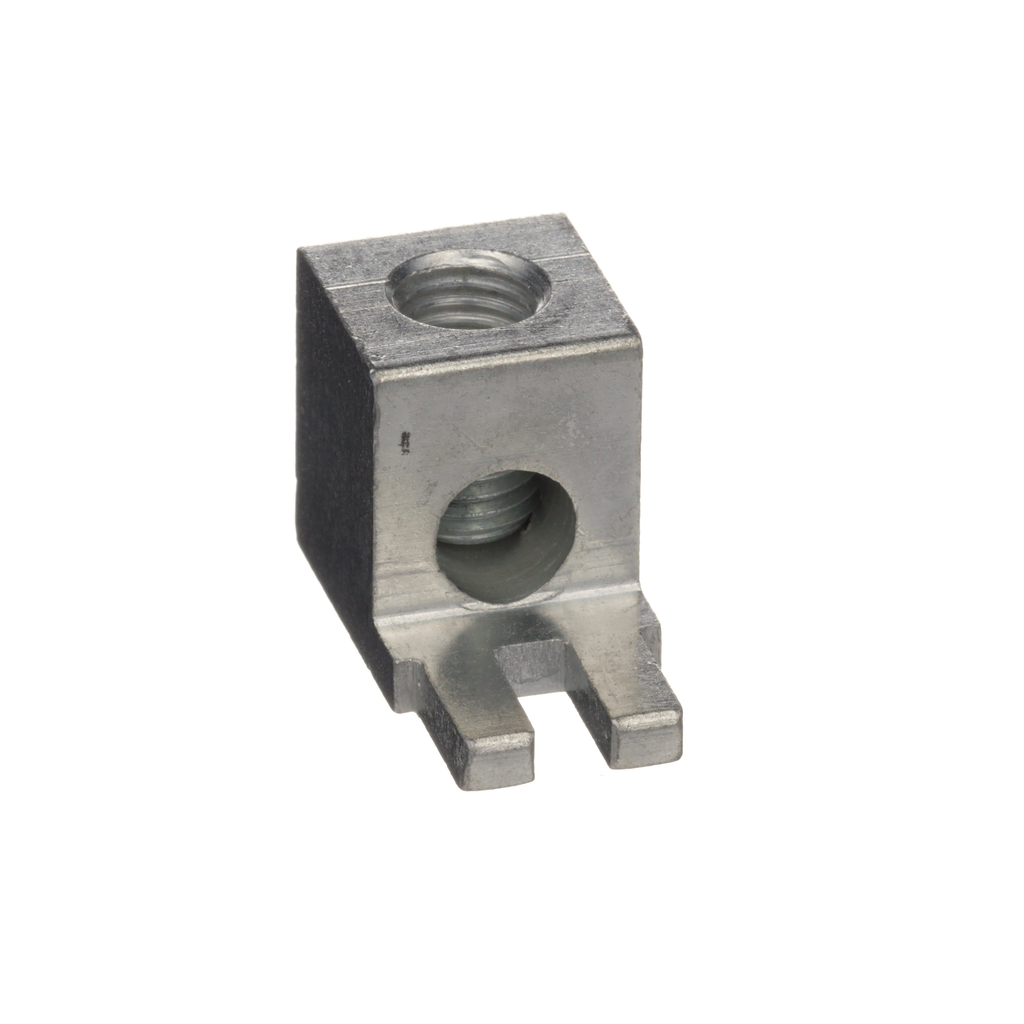

Load center accessory, Homeline, lug kit, neutral, 70A
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This neutral lug kit contains the parts required to add a lug to the neutral bar of a Homeline load center. The lug will accept 14 WG to 1 AWG copper wire, 8 AWG to 4 AWG copper or aluminum wire or 3 AWG to 2 AWG aluminum wire. The lug is rated at 70A.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Homeline |
|---|---|
| Product Or Component Type | lug kit |
| Warranty | 18 months |
| Cable Cross Section |
|
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403002 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Documents
- Spec Sheet
- Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf)
- Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf)
- Square D Homeline Load Centers and Circuit Breakers Brochure - 1170BR9601R1003 (pdf)
- A Guide to Your Square D Electrical Distribution System - Brochure - 0102BR0201 (pdf)
- HOM70AN Neutral Branch Terminal Kit Installation Instructions - 40270-281-02 (pdf)
- HOM70AN Neutral Lug Kit Installation Instructions - 40271-949-03 (pdf)
