Load center accessory, Homeline, circuit breaker retaining kit, 225A

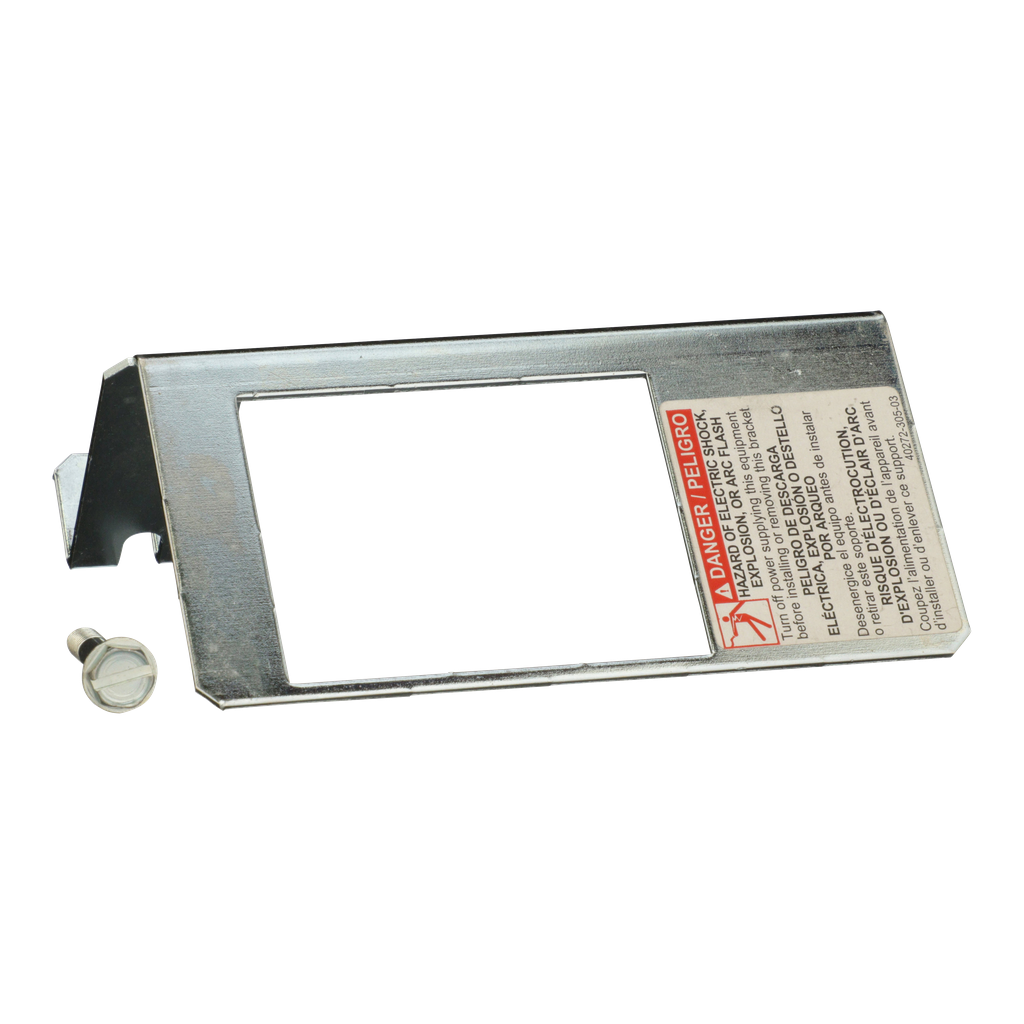

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This retaining kit secures one circuit breaker on the right side of the interior when used as a back fed main for 150A to 225A convertible main load centers. This HOM Homeline circuit breaker retaining kit has a height of 4.4 inches, a width of 5.07 inches and depth of 3.05 inches.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Homeline |
|---|---|
| Product Or Component Type | Circuit Breaker Retaining Kit |
| Warranty | 18 months |
| Height | 4.4 in |
| Width | 5.07 in |
| Depth | 3.05 in |
| Line Rated Current | 150-225 A |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403002 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Documents
- Spec Sheet
- Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf)
- Digest Catalog 01: Load Centers - 0100CT1901_SEC-01 (pdf)
- A Guide to Your Square D Electrical Distribution System - Brochure - 0102BR0201 (pdf)
- Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf)
- Square D Homeline Load Centers and Circuit Breakers Brochure - 1170BR1801 (pdf)
- HOM4RK2HA Back-Fed Main Circuit Breaker Retaining Kit Installation Instructions - 40272-805-02 (pdf)
