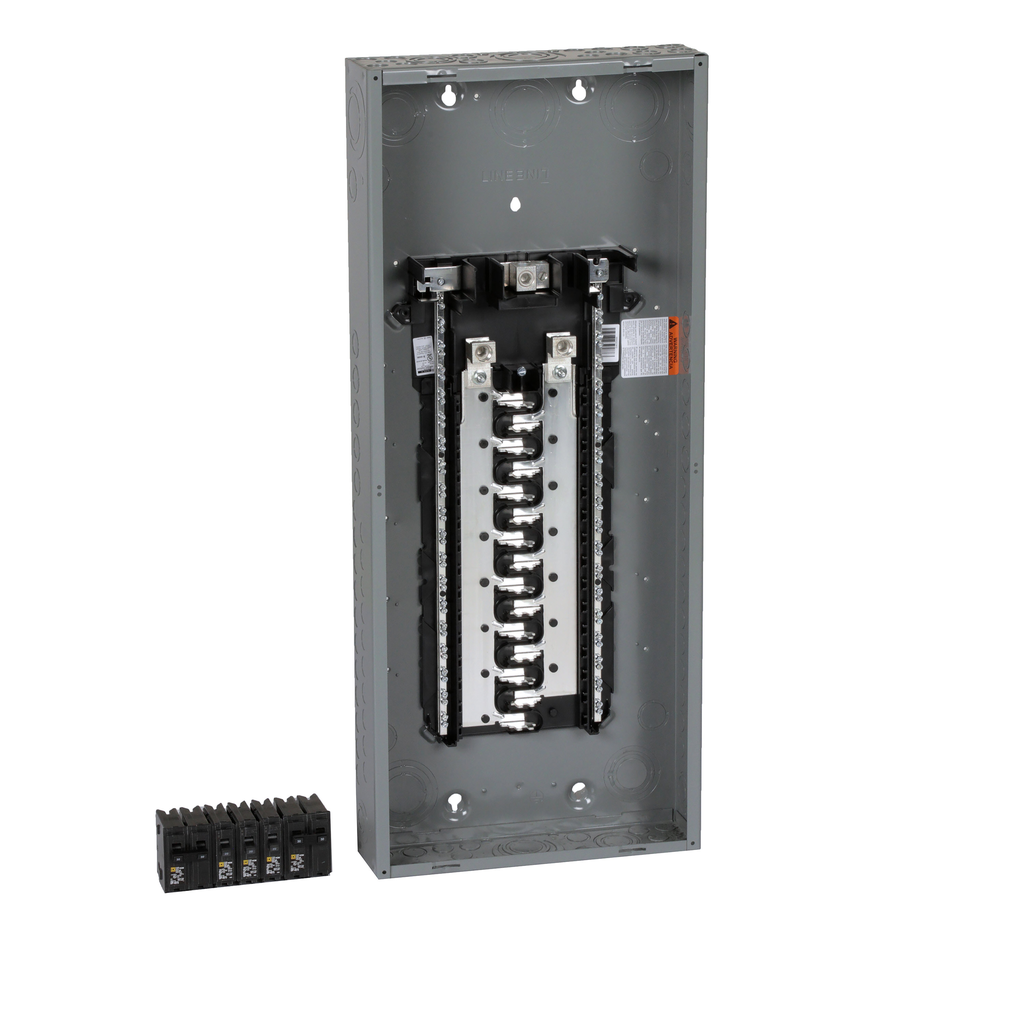

Load center, Homeline, 1 phase, 30 spaces, 60 circuits, 225A convertible main lugs, PoN, NEMA1, gnd bar, value pack
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with convertible mains that are rated at 225A 120/240 VAC single phase. Load center is also supplied with a two pole 30A 120/240 VAC circuit breaker and a one pole 20A 120/240 VAC circuit breaker. Load center has a grounding bar. Homeline load center provides a 10 kA breaking capacity. This system provides 30 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or 4 AWG to 300 kcmil aluminum wire. This Homeline load center has a height of 33.77 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Homeline |
|---|---|
| Provided Equipment |
|
| Product Or Component Type | Load Center |
| Number Of Circuits | 60 |
| Number Of Spaces | 30 |
| Nema Degree Of Protection | NEMA 1 indoor |
| Cover Type | combination flush/surface cover |
| Line Rated Current | 225 A |
| Load Center Type | PoN Convertible Mains (lugs) |
| Height | 858 mm |
| Phase | 1 phase |
| Short-Circuit Current | 10 kA |
| Number Of Tandem Circuit Breakers | 30 |
| Material | tin plated aluminium busbar |
| Surface Finish | baked enamel Gray |
| Enclosure Material | welded sheet steel |
| Awg Gauge |
|
| Width | 362 mm |
| Wiring Configuration | 3-wire |
| Depth | 95 mm |
| Device Composition | grounding bar included (not installed) |
| Box Number | 10 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403002 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Product Certifications | UL listed file E-6294 |
| Ambient Air Temperature For Operation |
|
