HOM2PAHACP

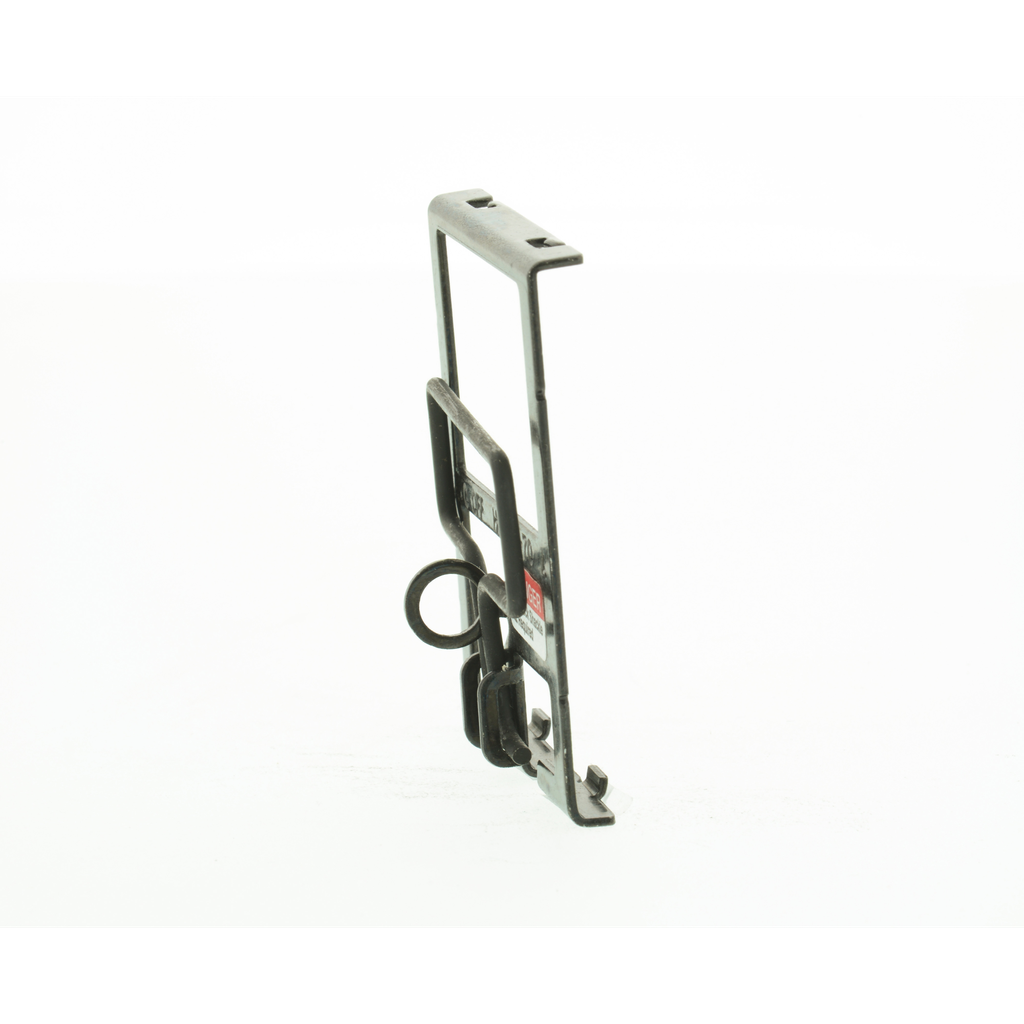

Mini circuit breaker accessory, Homeline, handle padlock attachment, 80A to 125A, 2 pole std breakers, on/off lock, CP
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This handle padlock attachment is for padlocking a two pole 80A to 125A standard Homeline circuit breakers in either the ON or OFF position. Handle padlock attachment is UL Listed. This product is in commercial packaging.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Or Component Type | Circuit Breaker Handle Padlock Attachment |
|---|---|
| Type Of Packing | consumer packaging |
| Height | 4.5 in |
| Locking Options Description | padlock in on or off position |
| Product Destination | 2P HOM circuit breaker 80-125 A |
| Width | 2.8 in |
| Depth | 1.3 in |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Product Certifications | UL Listed |
Documents
- Spec Sheet
- Square D QO and Homeline Load Centers and Enclosures Catalog - 1100CT0501 (pdf)
- Small and medium project solutions, available now - brochure - 998-21381316_GMA-US_Small+and+medium+project+solutions+available+now (pdf)
- HOMQPA, HOM2PALA, and HOM2PAHA Padlock Attachments for Circuit Breakers - Installation Instructions - 48840-215-01 (pdf)
