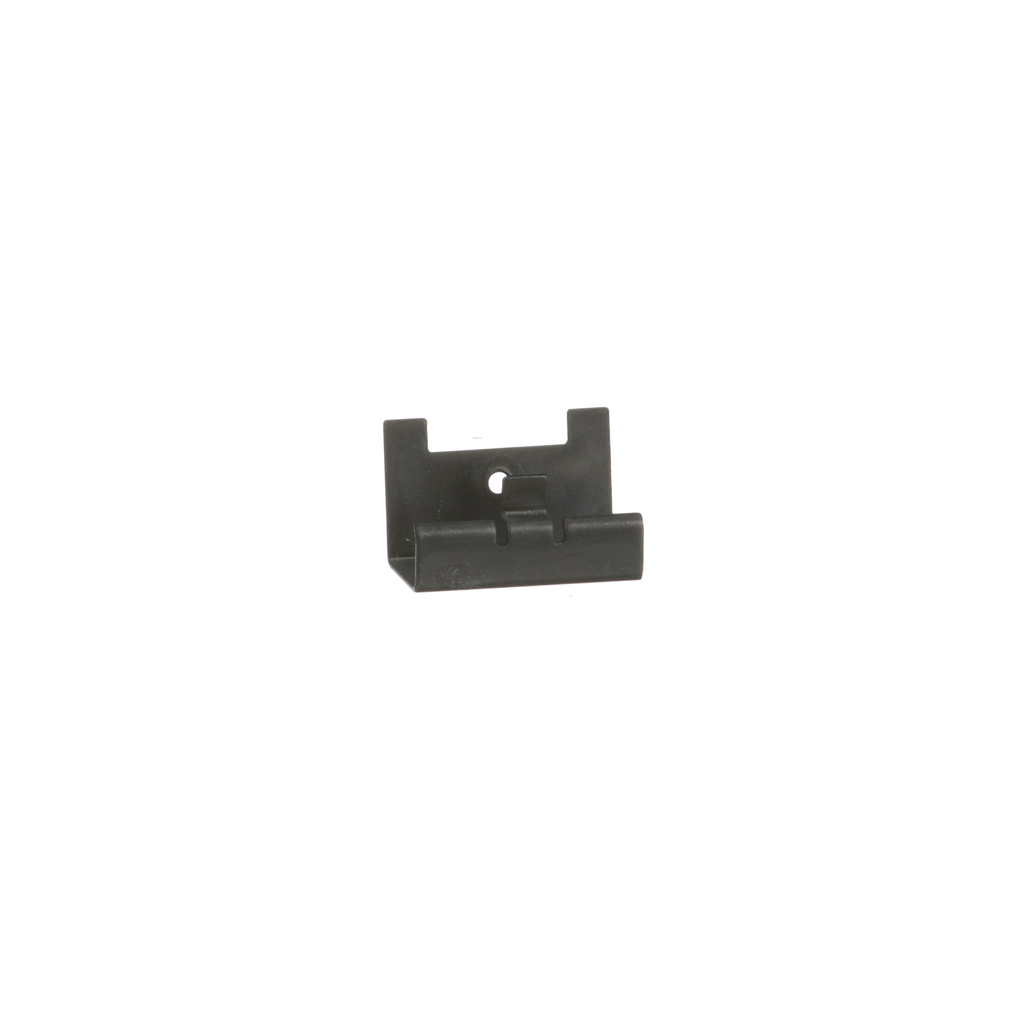

HOM2HBD
Load center accessory, Homeline, circuit breaker handle blocking device, 2 pole, lock off position
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This handle blocking device attaches to two pole Homeline circuit breakers for holding the handle in the OFF position.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Homeline |
|---|---|
| Product Or Component Type | Circuit Breaker Handle Blocking Device |
| Warranty | 18 months |
| Height | 0.556 in |
| Locking Options Description | lock OFF only |
| Width | 7.02 in |
| Depth | 0.5 in |
| Number Of Poles | 2 |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
