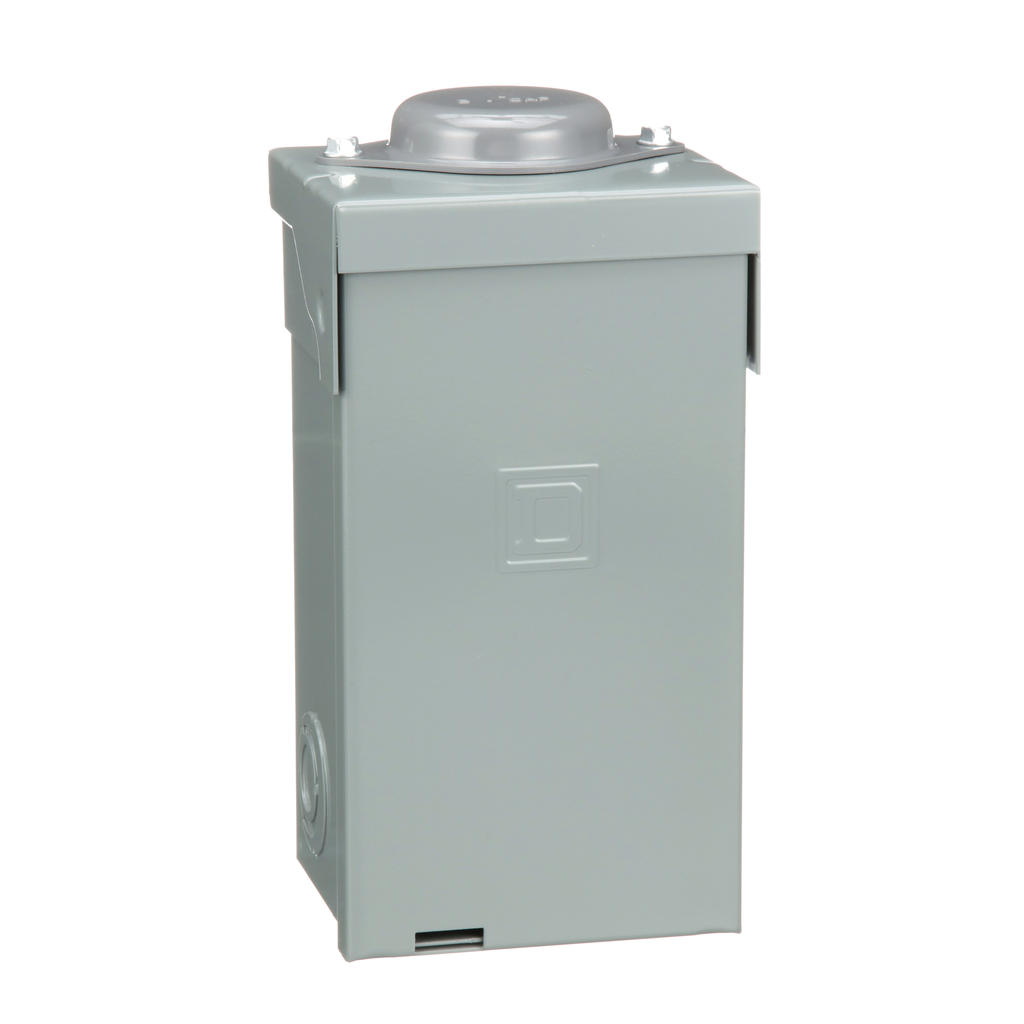

HOM24L70RBCP
Load center, Homeline, 1 phase, 2 spaces, 4 circuits, 70A fixed main lugs, NEMA3R, consumer pack
The Square D® Homeline® Load Centers and Circuit Breakers, HOM24L70RBCP are part of a comprehensive family of circuit protection solutions. Plug on neutral load main breakers centers with lug connections.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Nema Degree Of Protection | NEMA 3R outdoor |
|---|---|
| Cover Type | surface cover |
| Range Of Product | Homeline |
| Line Rated Current | 70 A |
| Product Or Component Type | Load Center |
| Number Of Circuits | 4 |
| Number Of Spaces | 2 |
| Load Center Type | Fixed Mains (lugs) |
| Height | 238 mm |
| Short-Circuit Current | 10 kA |
| Number Of Tandem Circuit Breakers | 2 |
| Material | tin plated aluminium busbar |
| Surface Finish | baked enamel Gray |
| Enclosure Material | welded galvannealed steel |
| Awg Gauge |
|
| Wiring Configuration | 3-wire |
| Width | 124 mm |
| Depth | 102 mm |
| Type Of Packing | consumer packaging |
| Phase | 1 phase |
| Box Number | 1R |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403002 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Product Certifications | UL listed file E-6294 |
| Ambient Air Temperature For Operation |
|
