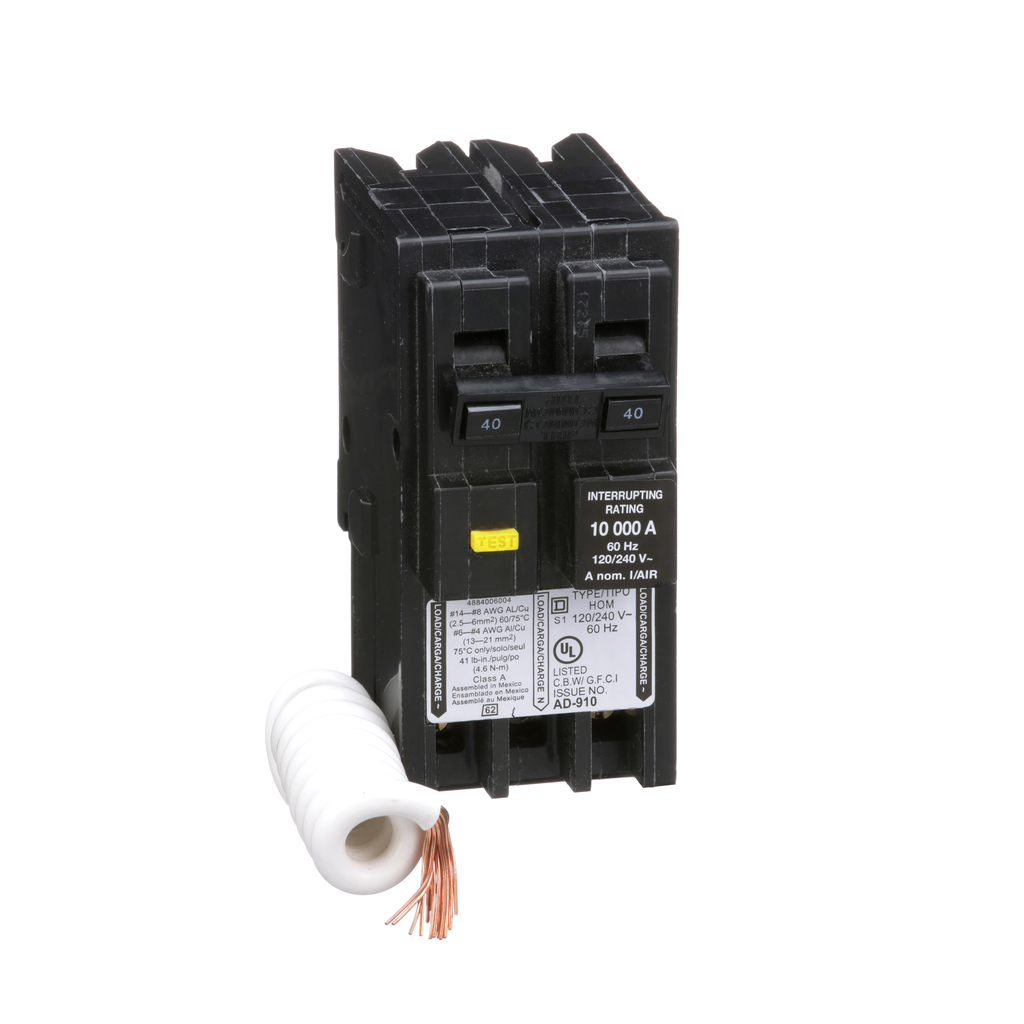

Mini circuit breaker, Homeline, 40A, 2 pole, 120/240VAC, 10kA AIR, ground fault class A, plug in, UL
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 40A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline ground fault circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more. The electrical connection is a clamp terminal that will accept 1 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL Listed |
|---|---|
| Circuit Breaker Type | ground fault protecting class A 6 mA |
| Range Of Product | Homeline |
| Number Of Spaces Required | 2 |
| Product Or Component Type | miniature circuit-breaker |
| Circuit Breaker Application | HACR rated |
| Mounting Mode | plug-in |
| Short-Circuit Current | 10 kA |
| Poles Description | 2P |
| Electrical Connection | screw clamp terminals |
| Line Rated Current | 40 A |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Awg Gauge |
|
| Warranty | Lifetime |
| Height | 3.13 in |
| Tightening Torque |
|
| Width | 2 in |
| Depth | 2.98 in |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1406034 |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1406034 |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free product |
| Ambient Air Temperature For Operation | 40 °C |
