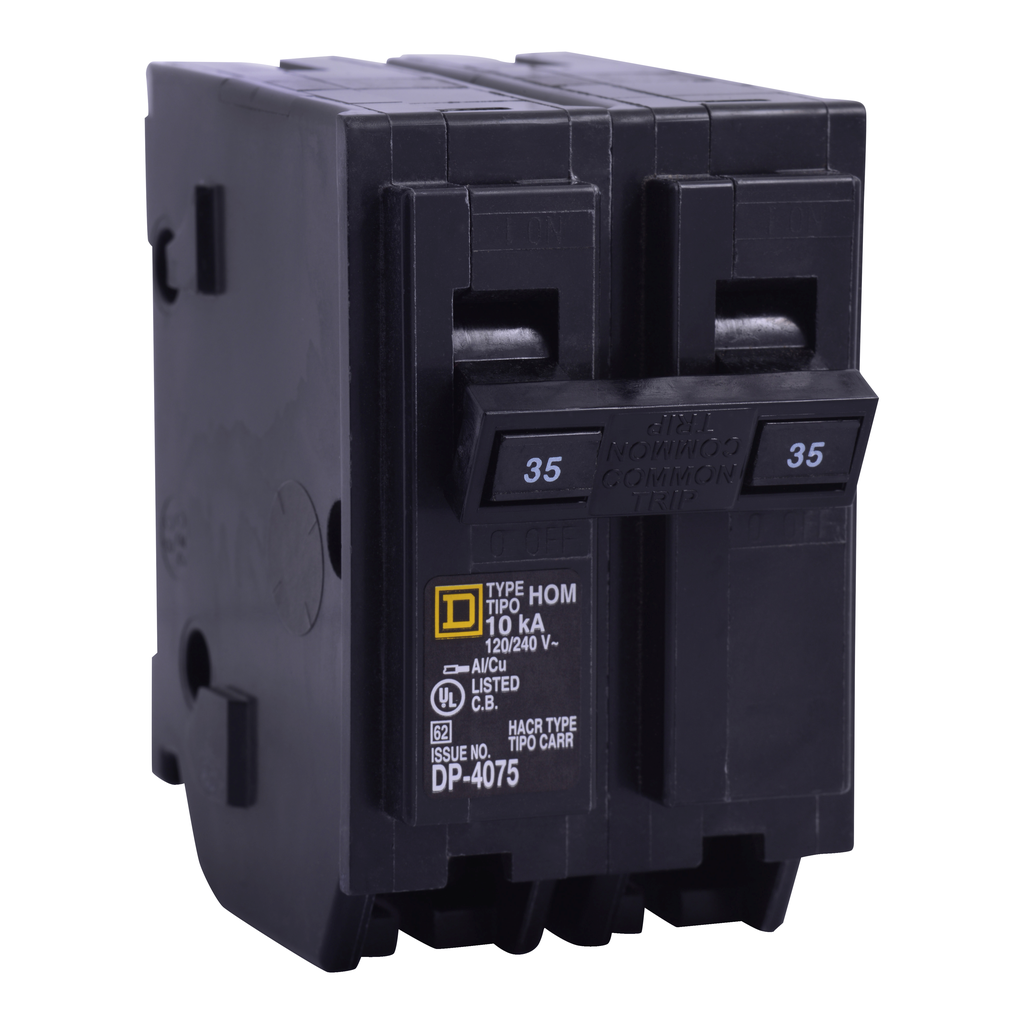

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 35A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs. The box lugs will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed. Circuit breaker is consumer packaged.
Brand: Schneider Electric
Add to Quote CatalogueProduct Certifications | UL Listed |
---|---|
Circuit Breaker Type | standard |
Range Of Product | Homeline |
Number Of Spaces Required | 2 |
Product Or Component Type | miniature circuit-breaker |
Type Of Packing | consumer packaging |
Circuit Breaker Application | HACR rated |
Mounting Mode | plug-in |
Short-Circuit Current | 10 kA |
Poles Description | 2P |
Electrical Connection | box lugs |
Line Rated Current | 35 A |
[Ue] Rated Operational Voltage | 120/240 V AC |
Awg Gauge | 1 x AWG 8...AWG 2 ( aluminium/copper ) |
Warranty | 18 months |
Height | 3.13 in |
Tightening Torque | 4.6-4.6 N.m (AWG 8...AWG 2) |
Width | 2 in |
Depth | 2.98 in |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1308001 |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Eu Rohs Directive | Compliant |
Ambient Air Temperature For Operation | 40 °C |
