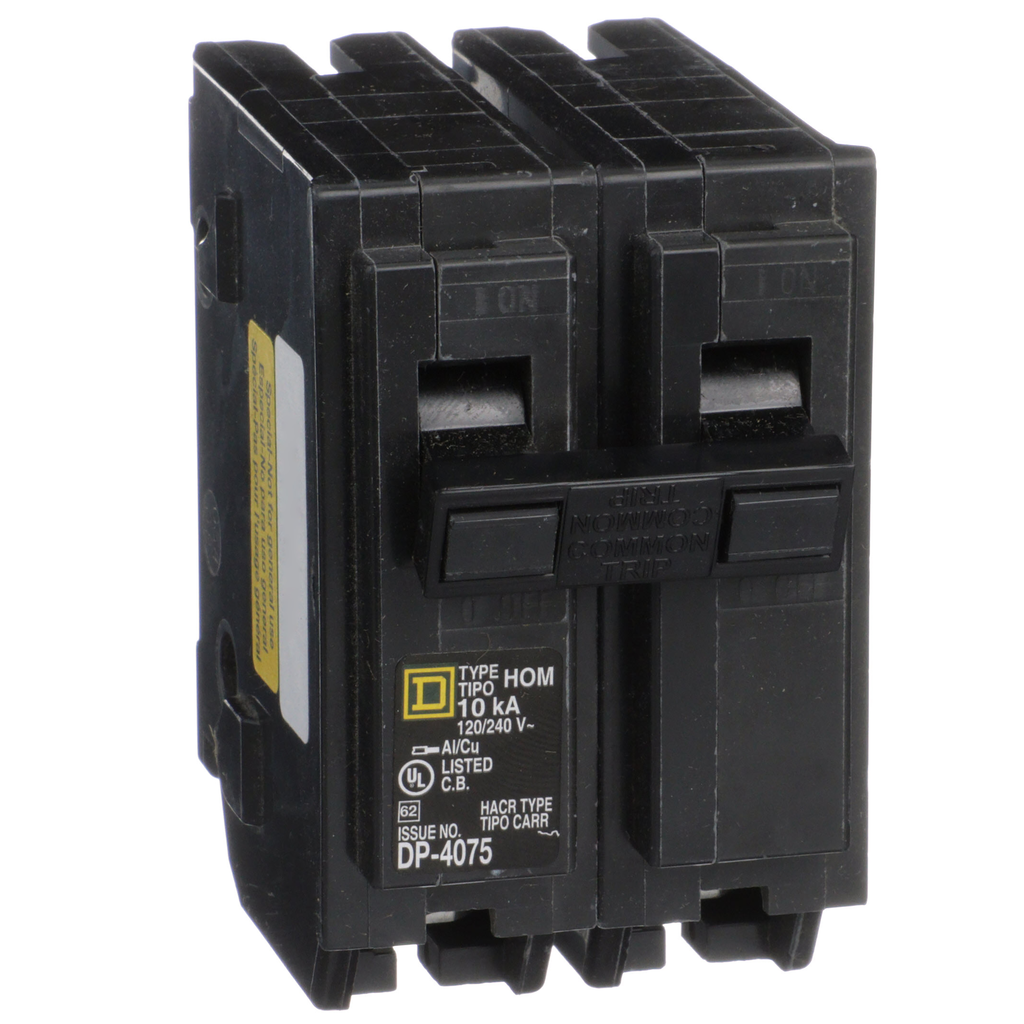

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 20A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a high amperage box lug that will accept 1 wire. The clamp terminal will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueProduct Certifications | UL Listed |
---|---|
Circuit Breaker Application | HACR rated |
Mounting Mode | plug-in |
Circuit Breaker Type | standard |
Short-Circuit Current | 10 kA |
Range Of Product | Homeline |
Poles Description | 2P |
Electrical Connection | box lugs |
Number Of Spaces Required | 2 |
Line Rated Current | 20 A |
Product Or Component Type | miniature circuit-breaker |
[Ue] Rated Operational Voltage | 120/240 V AC |
Awg Gauge | 1 x AWG 8...AWG 2 ( aluminium/copper ) |
Warranty | Lifetime |
Tightening Torque |
|
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1308001 |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Eu Rohs Directive | Compliant |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
Ambient Air Temperature For Operation | 40 °C |
