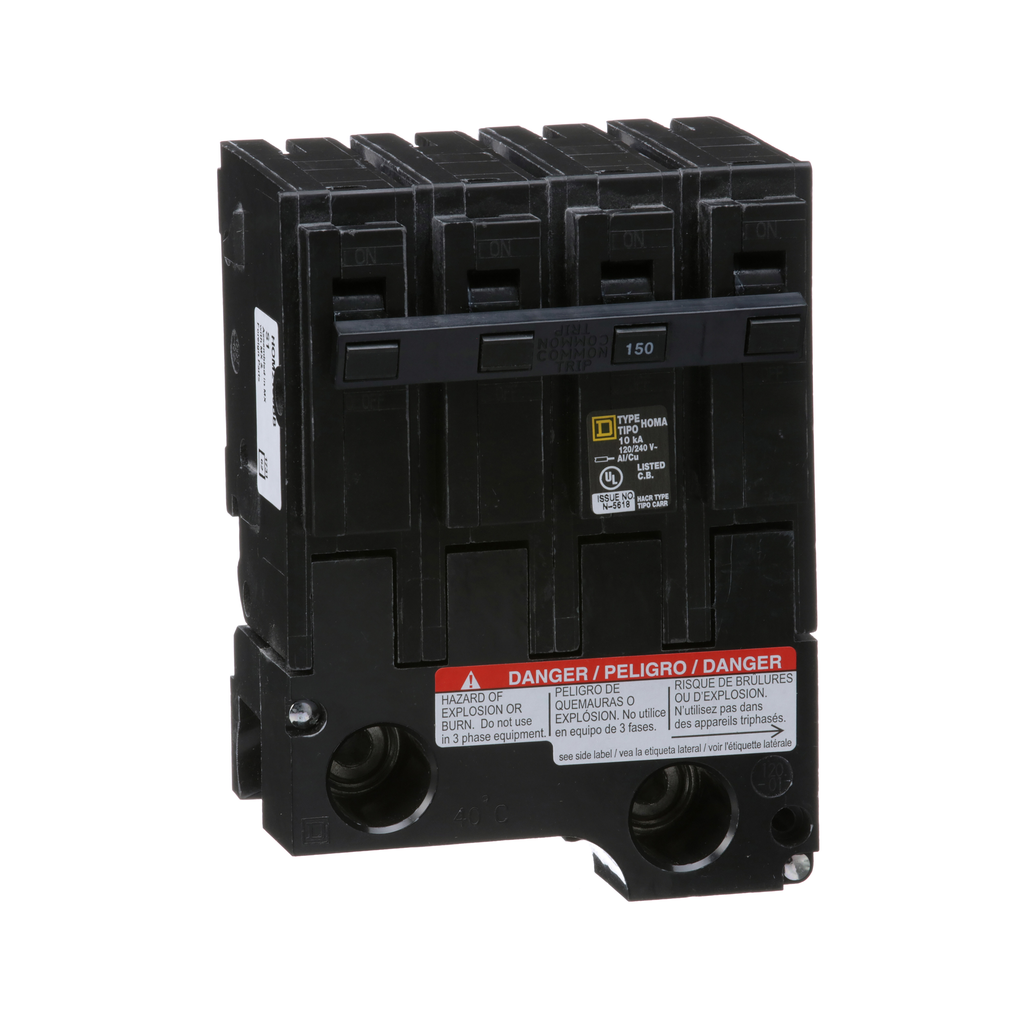

Mini branch circuit breaker, Homeline, 150A, 4 pole, 120/240VAC, 10kA AIR, standard type, plug in, UL
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 150 A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs that will accept 1 wires. The box lugs will accept a wire range of 4 AWG to 300 kcmil copper or aluminum wire. This circuit breaker has a height of 5.39 inches, a width of 3.98 inch and depth of 3.13 inches. HOM Homeline miniature circuit breakers are UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL Listed |
|---|---|
| Circuit Breaker Application | HACR rated |
| Mounting Mode | plug-in |
| Circuit Breaker Type | standard |
| Short-Circuit Current | 10 kA |
| Range Of Product | Homeline |
| Poles Description | 4P |
| Electrical Connection | box lugs |
| Number Of Spaces Required | 4 |
| Line Rated Current | 150 A |
| Product Or Component Type | miniature circuit-breaker |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Awg Gauge | 1 x AWG 4...300 kcmil ( aluminium/copper ) |
| Warranty | Lifetime |
| Height | 5.39 in |
| Tightening Torque | 28.3-28.3 N.m 95-150 mm² (AWG 4/0...250 kcmil) |
| Width | 3.98 in |
| Depth | 3.13 in |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1308001 |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Ambient Air Temperature For Operation | 40 °C |
