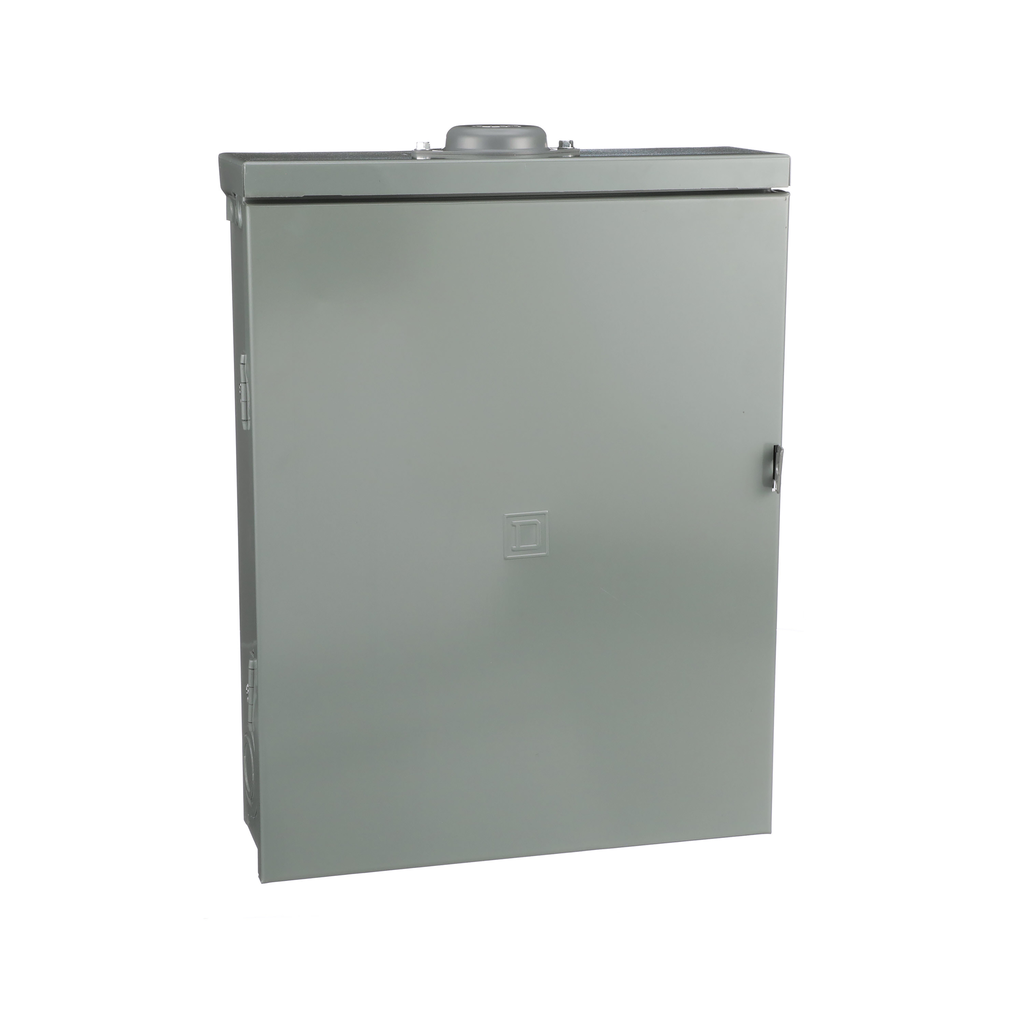

Load center, Homeline, 1 phase, 12 spaces, 24 circuits, 125A convertible main breaker, PoN, NEMA3R, value pack
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 125A 120/240 VAC single phase. Load center is also supplied with a two pole 30A 120/240 VAC circuit breaker and a one pole 20A 120/240 VAC circuit breaker. Homeline load center provides a 22 kA breaking capacity. This system provides 12 spaces in a NEMA 3R rain proof enclosure. The electrical connections are box lugs. The box lugs will accept a wire range of 6 AWG to 1 AWG copper or 6 AWG to 2/0 AWG aluminum wire. This Homeline load center has a height of 18.92 inches, a width of 14.75 inches, and depth of 4.52 inches. Homeline load centers are UL Listed. Load center is a value packed system.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Homeline |
|---|---|
| Provided Equipment |
|
| Product Or Component Type | Load Center |
| Number Of Circuits | 24 |
| Number Of Spaces | 12 |
| Nema Degree Of Protection | NEMA 3R outdoor |
| Cover Type | surface cover |
| Line Rated Current | 125 A |
| Load Center Type | PoN Convertible Mains (breaker) |
| Height | 481 mm |
| Phase | 1 phase |
| Short-Circuit Current | 22 kA |
| Number Of Tandem Circuit Breakers | 12 |
| Material | tin plated aluminium busbar |
| Surface Finish | baked enamel Gray |
| Enclosure Material | welded galvannealed steel |
| Awg Gauge |
|
| Width | 375 mm |
| Wiring Configuration | 3-wire |
| Depth | 115 mm |
| Device Composition | grounding bar (ordered separately) |
| Box Number | 3R |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403002 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Product Certifications | UL listed file E-6294 |
| Ambient Air Temperature For Operation |
|
