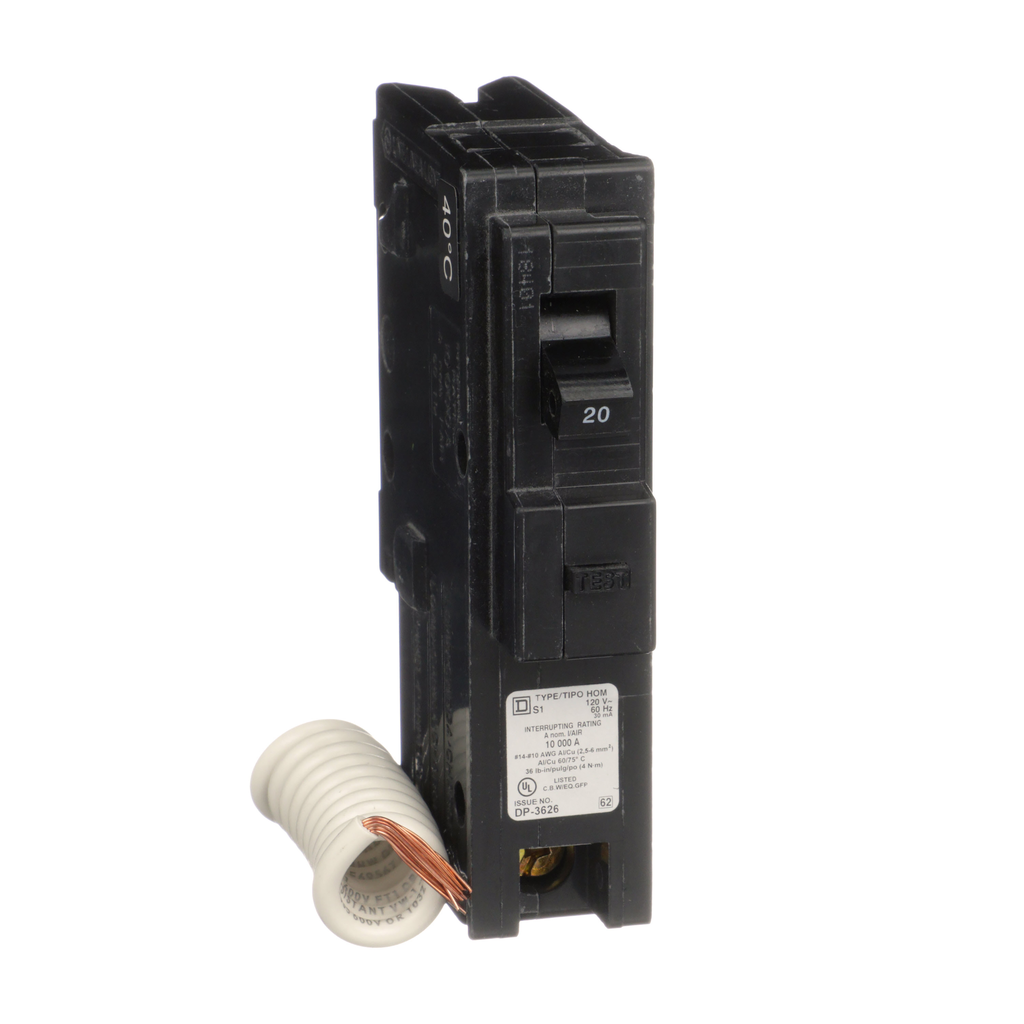

Mini circuit breaker, Homeline, 20A, 1 pole, 120VAC, 10kA AIR, ground fault class B, plug in, UL
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 20A at 120 VAC. HOM breakers provide 10 kA breaking capacity. This Homeline circuit breaker has Class B equipment protection ground fault protection. This Homeline circuit breakers has 30mA equipment ground fault protection. The electrical connection is a clamp terminal that will accept 1 wire. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL Listed |
|---|---|
| Circuit Breaker Application | HACR rated |
| Mounting Mode | plug-in |
| Circuit Breaker Type | ground fault protecting class B 30 mA |
| Short-Circuit Current | 10 kA |
| Range Of Product | Homeline |
| Poles Description | 1P |
| Electrical Connection | screw clamp terminals |
| Number Of Spaces Required | 1 |
| Line Rated Current | 20 A |
| Product Or Component Type | miniature circuit-breaker |
| [Ue] Rated Operational Voltage | 120 V AC |
| Awg Gauge | 1 x AWG 14...AWG 8 ( aluminium/copper ) |
| Warranty | Lifetime |
| Tightening Torque | 4.0-4.0 N.m 2.5-6 mm² (AWG 14...AWG 8) |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1406034 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1406034 |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free product |
| Ambient Air Temperature For Operation | 40 °C |
