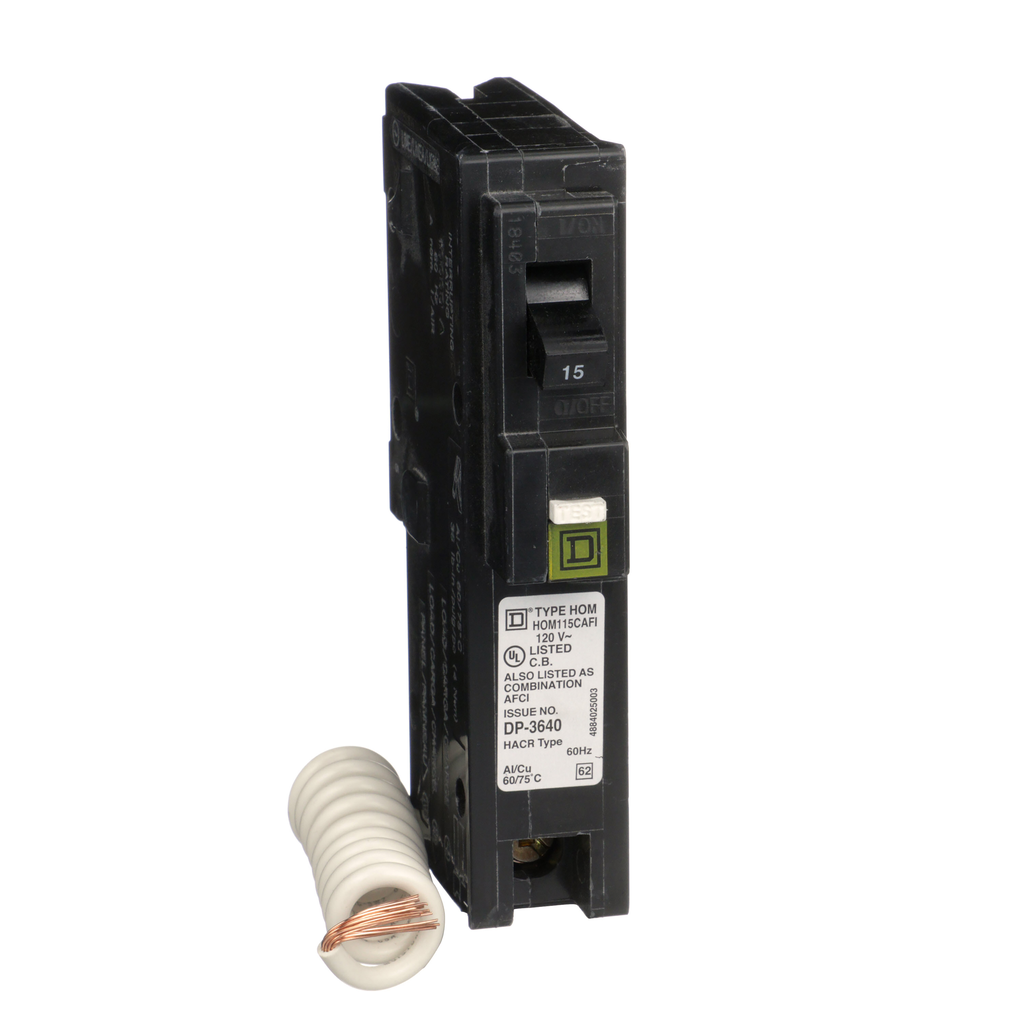

HOM115CAFIC
Mini circuit breaker, Homeline, 15A, 1 pole, 120VAC, 10kA AIR, combo arc fault, pigtail neutral, plug in, UL
Square D™ Homeline™ Miniature Circuit Breakers, HOM115CAFIC, is in a 1 inch wide format for 1-pole circuit breakers. They are designed to plug into Homeline load centers. Equipped with Combination ground and Arc-fault interrupter (Pigtail Neutral). Comes in clam packing. UL listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL Listed |
|---|---|
| Circuit Breaker Type | combination ARC-fault |
| Range Of Product | Homeline |
| Number Of Spaces Required | 1 |
| Product Or Component Type | miniature circuit-breaker |
| Type Of Packing | clam packaging |
| Circuit Breaker Application | HACR rated |
| Mounting Mode | plug-in |
| Short-Circuit Current | 10 kA |
| Poles Description | 1P |
| Electrical Connection | screw clamp terminals |
| Line Rated Current | 15 A |
| [Ue] Rated Operational Voltage | 120 V AC |
| Awg Gauge |
|
| Warranty | Lifetime |
| Connections - Terminals | pigtail neutral |
| Height | 3.13 in |
| Tightening Torque | 4.0-4.0 N.m 2.5-6 mm² (AWG 14...AWG 8) |
| Net Weight | 0.30 kg |
| Width | 1 in |
| Depth | 2.98 in |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1406034 |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1406034 |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free product |
| Ambient Air Temperature For Operation | 40 °C |
