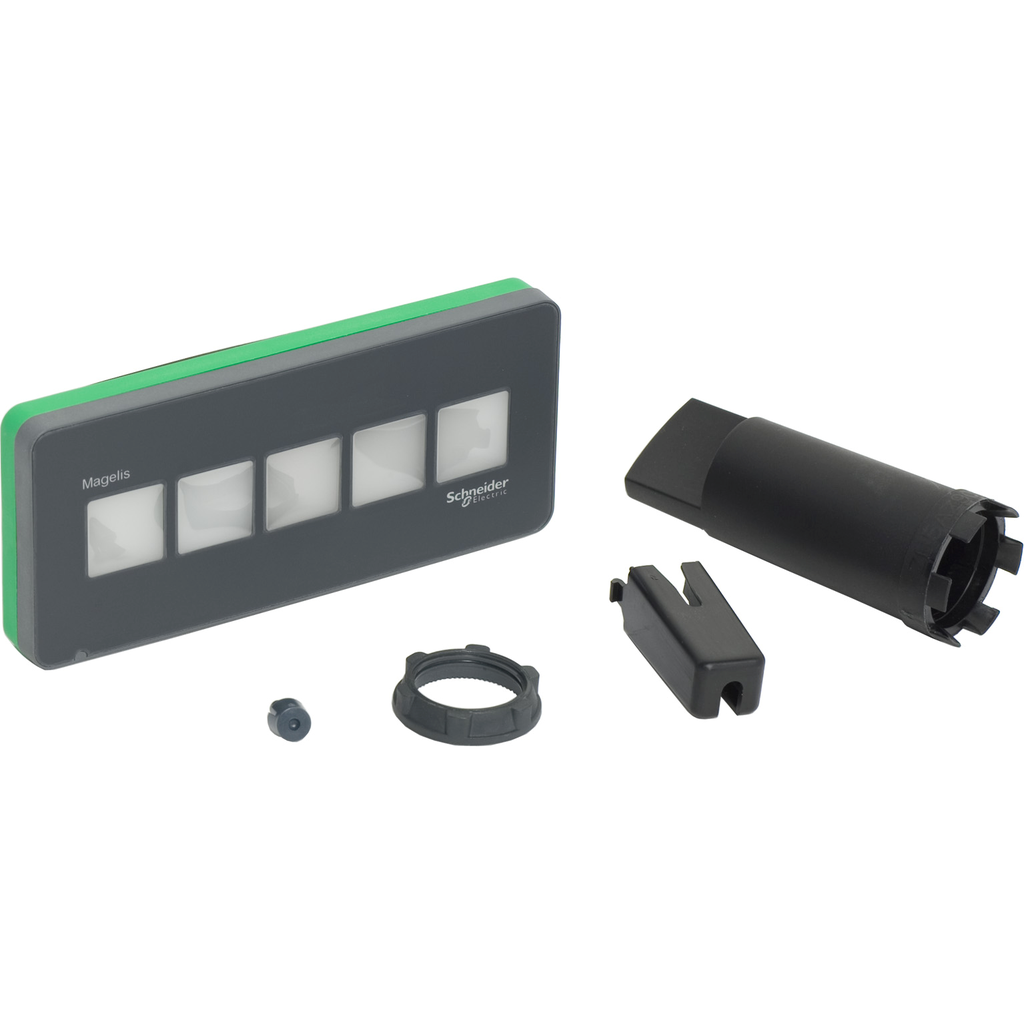

Illuminated Switch-5 Function keys with multi-color LEDs backlit
This illuminated USB switch accessory is connected via a USB cable and compatible with Harmony HMI range terminals. HMIZRA1 with click sensation is used as function keys with an HMI terminal where repetitive and reliable operations in dirty environments are required, while keeping the touch panel clean and protected. It is IP65 protected and has 5 switches with backlit LED. With Vijeo Desigher, the switches can be set to alarm display and acknowledgement mode or illuminated function keys mode. It is designed with wide view angle and brightness for easy visualization and quick acknowledgement of alarm. It offers water-resistance and can operate in harsh environments. The users can select and adjust the colors of the switch. It weighs 0.110Kg. It iis ideal for use in industrial applications like machine tool, packaging, printing, automotive, metal processing, food and beverage, and paper. It is compatible with Harmony Panel PC and Box PC, XBTGT, XBTGC, HMIGTO, HMIGXO, and HMISCU terminals. It is an Ideal complement to Harmony HMI series for direct access to functions without the need to touch the screen.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony HMIZ |
|---|---|
| Product Or Component Type | illuminated USB switch |
| Product Compatibility |
|
| Provided Equipment |
|
| Device Application |
|
| Height | 54 mm |
| Software Designation | Vijeo Designer >= V6.1 SP2 |
| [Us] Rated Supply Voltage | 5 V DC USB 2.0 |
| Power Consumption In W | 2 W |
| Electromagnetic Compatibility |
|
| Shock Resistance | 147 m/s²3 chocks in each direction X, Y and Z IEC 61131-2 |
| Net Weight | 0.11 kg |
| Mounting Location | flat surface |
| Connector Type | USB type B |
| Colour Of Cover | front dark grey |
| Supply Voltage Limits | 4.75-5.25 V DC |
| Control Type | 5 push-buttons multi-colour backlit LED |
| Quantity Per Set | 1 piece |
| Width | 122 mm |
| Depth | 28 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Standards |
|
| Pollution Degree | 2 |
| Vibration Resistance | 3.5 mm 5-9 Hz)IEC 61131-2 |
| Ip Degree Of Protection | IP65 front panel (in enclosure)) |
| Ambient Air Temperature For Storage | -20-60 °C |
| Environmental Characteristic | corrosive gas free |
| Relative Humidity | 10-90 % 0-55 °C non-condensing |
| Level Or Class | Class I Division 2 Groups A/B/C/D |
| Nema Degree Of Protection |
|
| Operating Altitude | <= 6561.68 ft (2000 m) |
