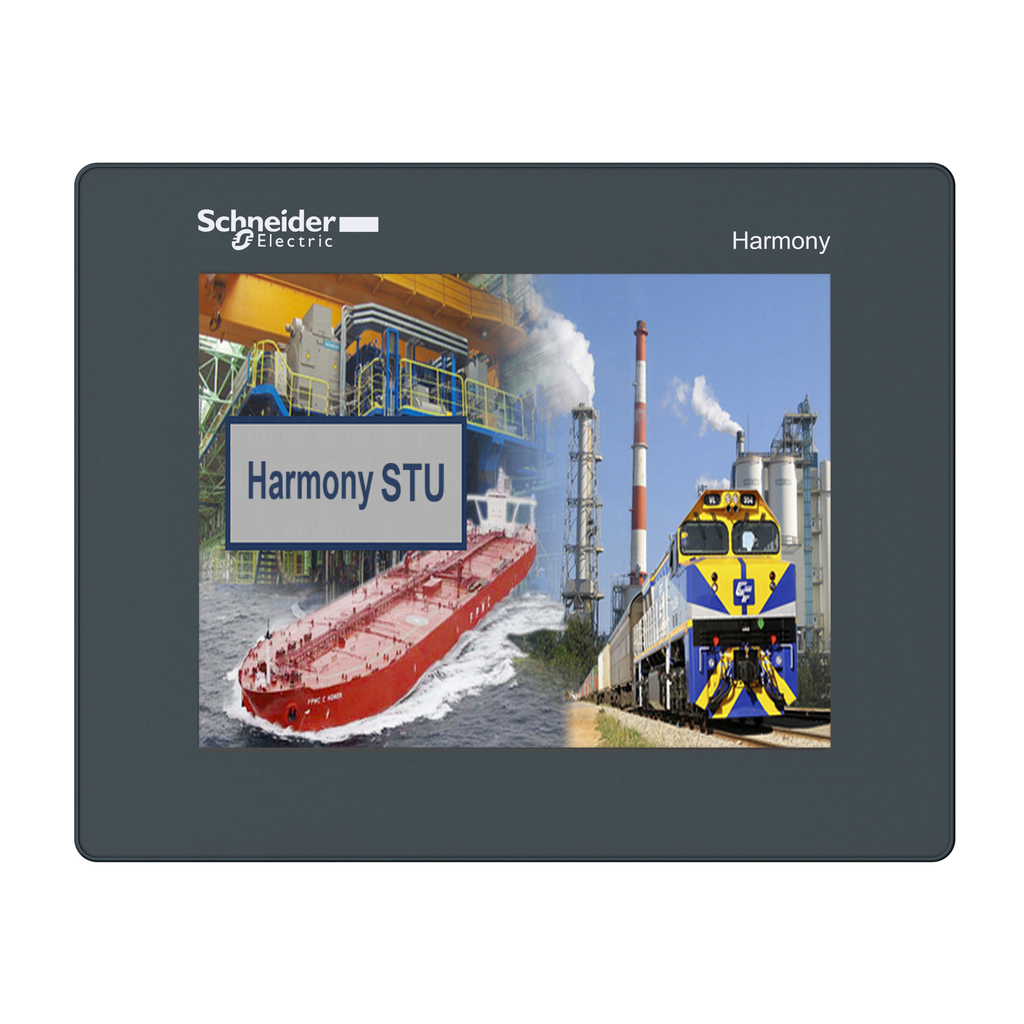

This Magelis STU small touchscreen operator interface (HMI) is supplied with 24V DC, has a 5.7" color TFT LCD display with, 320 x 240 pixels (QVGA) and 32MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays graphic pages with monochrome screen. Thanks to its fixing with a 22mm diameter hole, no panel rectangular cut-out is required. Its RS485 host port makes it ideal to supervise and control simple systems and machines.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony STO & STU |
---|---|
Product Or Component Type | touch panel screen |
Operating System | Harmony |
Processor Name | CPU ARM9 |
Software Designation | Vijeo Designer |
Warranty | 18 months |
Number Of Pages | limited by internal memory capacity |
Brightness | 16 levels |
Height | 129.15 mm |
Inrush Current | 30 A |
Power Consumption In W | 6.8 W |
Supply | external source |
Display Resolution | 320 x 240 pixels QVGA |
Marking |
|
Processor Frequency | 333 MHz |
Fixing Mode | Ø 22 mm hole |
Backlight Lifespan | 50000 hours |
Touch Panel | analogue |
Supply Voltage Limits | 20.4-28.8 V |
Integrated Connection Type |
|
Display Size | 5.7 inch |
Downloadable Protocols |
|
Realtime Clock | access to the PLC real-time clock |
Enclosure Material | PC/PBT and PAA |
Display Colour | 65536 colours |
Width | 163 mm |
Display Type | QVGA TFT colour touchscreen |
Depth | 56.5 mm |
Character Font |
|
Memory Description |
|
[Us] Rated Supply Voltage | 24 V DC |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2101003EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI2101003EN |
Upgradeability | Upgradeable through digital modules and upgraded components |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ambient Air Temperature For Operation | 0-50 °C |
Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
Standards |
|
Immunity To Microbreaks | 7 ms |
Vibration Resistance |
|
Shock Resistance | 15 gn 11 msIEC 60068-2-27 |
Ip Degree Of Protection |
|
Ambient Air Temperature For Storage | -20-60 °C |
Nema Degree Of Protection | NEMA 4X front panel indoor use) |
Relative Humidity | 0-85 % without condensation |
Operating Altitude | <= 6561.68 ft (2000 m) |
