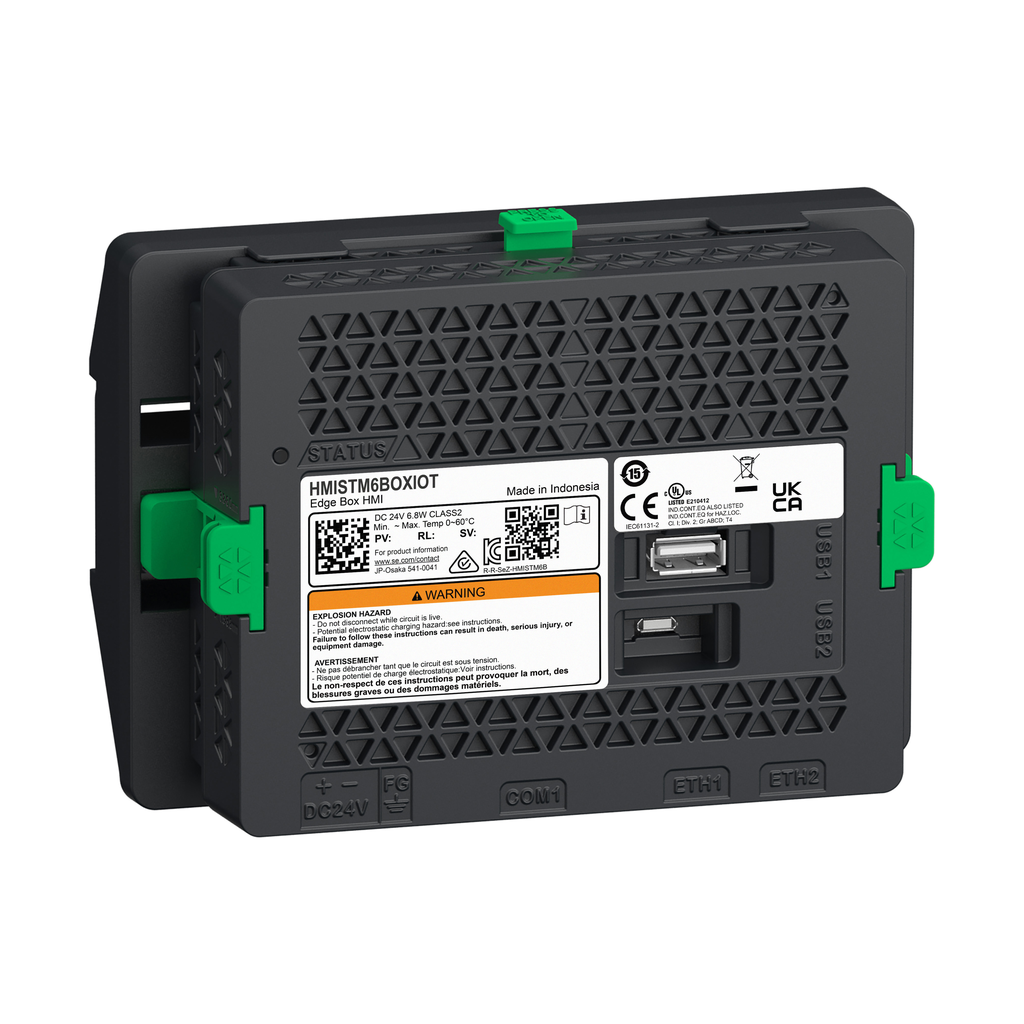

HMISTM6BOXIOT
Edge Box HMI, Harmony ST6, 1COM, 2Ethernet, 2 USB, 24 VDC
Specifications
| Range Of Product | Harmony ST6 |
|---|---|
| Product Or Component Type | modular HMI box |
| Operating System | linux |
| Processor Name | ARM Cortex-A8 |
| [Us] Rated Supply Voltage | 24 V DC |
| Height | 101 mm |
| Software Package |
|
| Processor Frequency | 800 MHz |
| Net Weight | 0.456 kg |
| Local Signalling | LED multi-colour |
| Integrated Connection Type |
|
| Width | 150.5 mm |
| Realtime Clock | built-in |
| Depth | 63.3 mm |
| Type Of Cooling | natural convection |
| Memory Description |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2007003EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2007003EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | 0-60 °C |
| Standards |
|
| Electromagnetic Compatibility | electrostatic discharge immunity test EN/IEC 61000-4-2 level 3 |
| Vibration Resistance |
|
| Shock Resistance | 147 m/s²EN/IEC 61131-2 |
| Pollution Degree | 2 EN 61131-2 Ed.3 |
| Ambient Air Temperature For Storage | -20-60 °C |
| Relative Humidity | 10-90 % non-condensing |
| Operating Altitude | 6561.68 ft (2000 m) |
