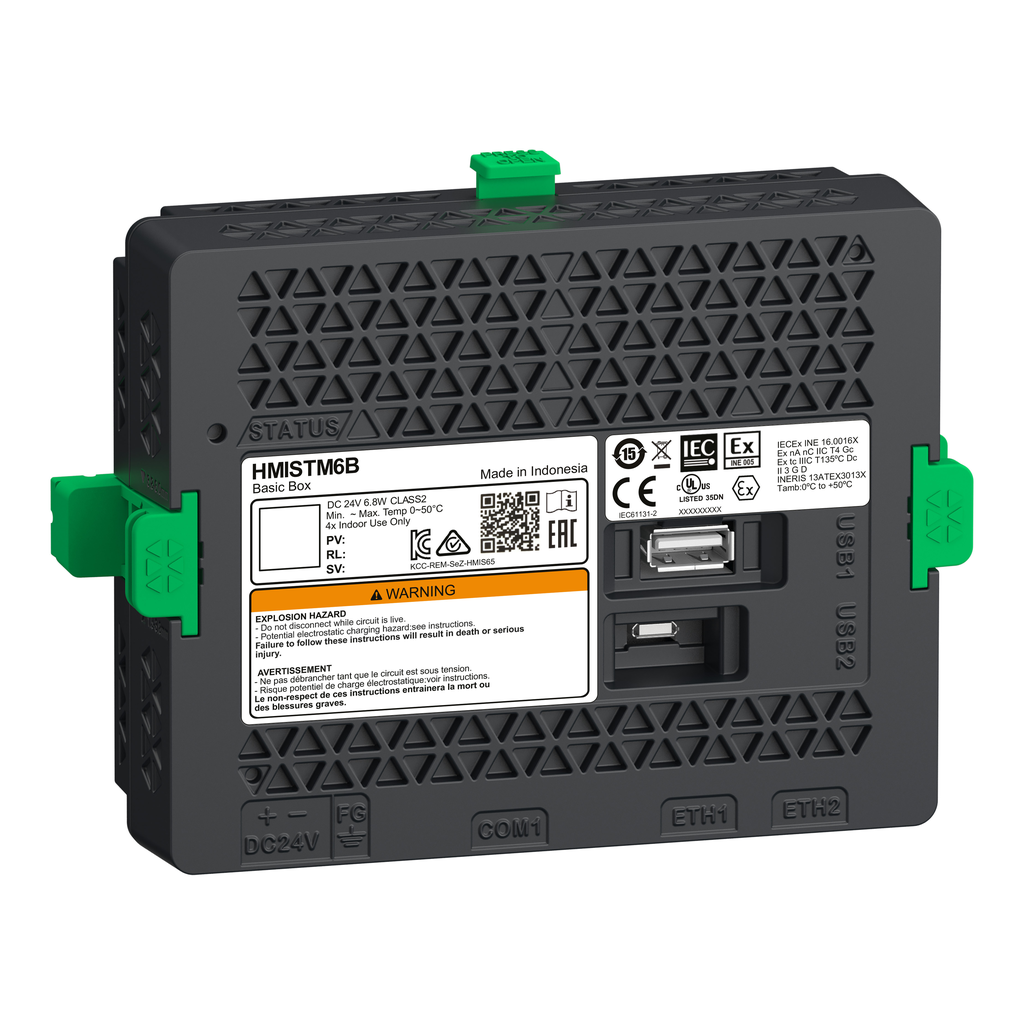

HMISTM6B - touch panel screen, Harmony ST6, spare part , rear module, 1COM, 2Ethernet, USB host&device, 24VDC

HMISTM6B

touch panel screen, Harmony ST6, spare part , rear module, 1COM, 2Ethernet, USB host&device, 24VDC

Add to Quote Catalogue

Specifications

Range Of Product	Harmony ST6
Product Or Component Type	touch panel screen
Processor Name	ARM Cortex-A8
Product Brand	Schneider Electric Modicon Mitsubishi Melsec Omron Sysmac Rockwell Automation Allen-Bradley Siemens Simatic
[Us] Rated Supply Voltage	24 V DC +/- 20 %)
Number Of Pages	200 application pages
Height	108.2 mm
Software Package	EcoStruxure Operator Terminal Expert
Inrush Current	30 A
Power Consumption In W	6.8 W
Cut-Out Dimensions	Ø 22.5 mm
Supply	external supply
Marking	CE
Processor Frequency	800 MHz
Net Weight	0.27 kg
Fixing Mode	Ø 22 mm hole 1.5 to 6 mm thick panel UL 61010-2-201 Ø 22 mm hole EN 61131-2 Ø 22 mm hole IEC 61000-6-2
Local Signalling	status LED green, steady offline status LED green, steady operating status LED green, flashing operating status LED green, faded stand-by status LED orange, flashing software starting up status LED red, steady power supply (ON) status LED red, flashing operating status LED red, off power supply (OFF)
Integrated Connection Type	1 COM1 serial link - female RJ45 - RS232C/RS485 2400...115200 bps)bottom 1 USB 2.0 type Aback 1 USB 2.0 type micro Bback 2 Ethernet - female RJ45bottom
Downloadable Protocols	Modbus Uni-TE third party protocols
Enclosure Material	PC
Port Ethernet	10/100BASE
Width	145.6 mm
Realtime Clock	built-in 0...50 °C built-in 10...90 % RH
Depth	41.4 mm
Memory Description	1 GB device memory 128 MB user data memory 512 KB backup memory
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2007003EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI2007003EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications	CE UKCA cULus RCM KC cULus Class 1 Division 2 DNV ABS RINA BV
Ambient Air Temperature For Operation	0-50 °C
Standards	EN 61000-6-4 EN 61000-6-2 EN 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201 CSA C22.2 No 213
Immunity To Microbreaks	2 ms
Electromagnetic Compatibility	electrical fast transient/burst immunity test 2 kV power ports) IEC 61000-4-4 electrical fast transient/burst immunity test 1 kV signal ports) electrostatic discharge immunity test 6 kV contact discharge) EN/IEC 61000-4-2 level 3 electrostatic discharge immunity test 8 kV air discharge)
Shock Resistance	147 m/s² 11 ms X, Y, Z directions for 10 cycles (approx. 100 min))EN/IEC 61131-2
Vibration Resistance	+/- 3.5 mm 5-9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) EN/IEC 61131-2 9.8 m/s² 9-150 Hz)
Ip Degree Of Protection	IP20 IEC 61131-2 rear panel)
Directives	2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Ambient Air Temperature For Storage	-20-60 °C
Relative Humidity	10-90 % non-condensing
Operating Altitude	6561.68 ft (2000 m)

touch panel screen, Harmony ST6, spare part , rear module, 1COM, 2Ethernet, USB host&device, 24VDC
