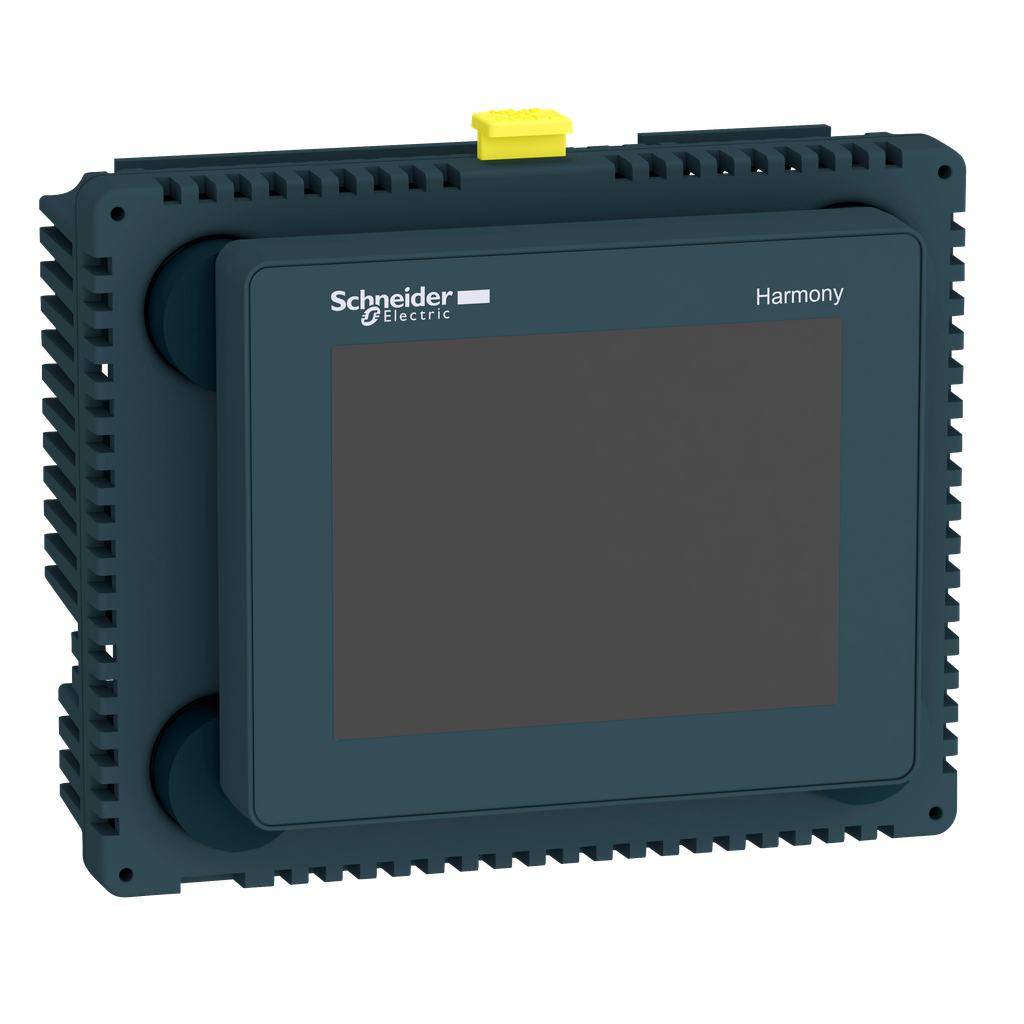

This Magelis SCU small touchscreen operator interface controller (HMI) is supplied with 24V DC, has a 3.5" color TFT LCD display and 128MB EPROM. It also has 8 digital inputs, 8 digital outputs, 4 analog inputs, 2 analog outputs, 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 CANopen port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 and CANopen host ports make it ideal to supervise and control simple systems and machines. Its multiple I/O, including high speed counters, allowing you to processes with fast sensing chains.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony SCU |
---|---|
Product Or Component Type | small touch HMI controller |
Device Presentation | complete product |
Touch Panel | analogue |
Display Size | 3.5 inch |
Display Type | backlit LED colour TFT LCD |
Analogue Output Number | 2 resistive load 12 bits + sign |
Fixing Mode | by 1 nut Ø 22 mm 1...6 mm thick panel |
Number Of Pages | limited by internal memory capacity |
Brightness | 16 levels via touch panel |
Maximum Cable Distance Between Devices |
|
Height | 74.95 mm |
Connection Pitch | 3.5 mm |
Inrush Current | 30 A |
Immunity To Microbreaks | 10 ms |
Analogue Input Range |
|
Discrete Output Number |
|
[Us] Rated Supply Voltage | 24 V 20.4-28.8 V)DC |
Discrete Input Voltage | 24 V DC sink or source (positive/negative) |
Power Consumption In W | 15 W |
View Angle Horiz X Vert |
|
Electromagnetic Compatibility |
|
Supply | external source |
Insulation Resistance |
|
Discrete Output Voltage |
|
Display Resolution | 320 x 240 pixels QVGA |
Isolation Between Channels | none |
Vibration Resistance |
|
Shock Resistance |
|
Operating System | Harmony |
Processor Frequency | 333 MHz |
Overvoltage Protection | with |
Analogue Output Range |
|
Net Weight | 0.551 kg |
Configurable Filtering Time |
|
Isolation Between Channels And Internal Logic | 500 V DC |
Backlight Lifespan | 50000 hours 65000 colours |
Analogue Input Number |
|
Processor Name | CPU RISC |
Maximum Input Frequency |
|
Software Designation | SoMachine |
Integrated Connection Type |
|
Absolute Accuracy Error |
|
Input Impedance |
|
Discrete Input Current |
|
Maximum Output Frequency |
|
Downloadable Protocols |
|
Realtime Clock | built-in |
Enclosure Material | PC/PBT |
Local Signalling | no indicator |
Sensor Power Supply |
|
Width | 128 mm |
Depth | 102 mm |
Discrete Output Current |
|
Input/Output Number |
|
Analogue Input Type |
|
Discrete Input Number |
|
Character Font |
|
Memory Description |
|
Number Of Common Point |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1405010EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1405010EN |
Upgradeability | Upgradeable through digital modules and upgraded components |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ambient Air Temperature For Operation | 0-50 °C |
Standards |
|
Storage Altitude | 0-10000 m |
Maximum Pressure | 800...1114 hPa |
Marking | CE |
Environmental Characteristic | corrosive gas free |
Ip Degree Of Protection |
|
Pollution Degree | 2 IEC 60664 |
Ambient Air Temperature For Storage | -20-60 °C |
Nema Degree Of Protection | NEMA 4X front panel |
Relative Humidity | 5-85 % without condensation |
Operating Altitude | <= 6561.68 ft (2000 m) |
