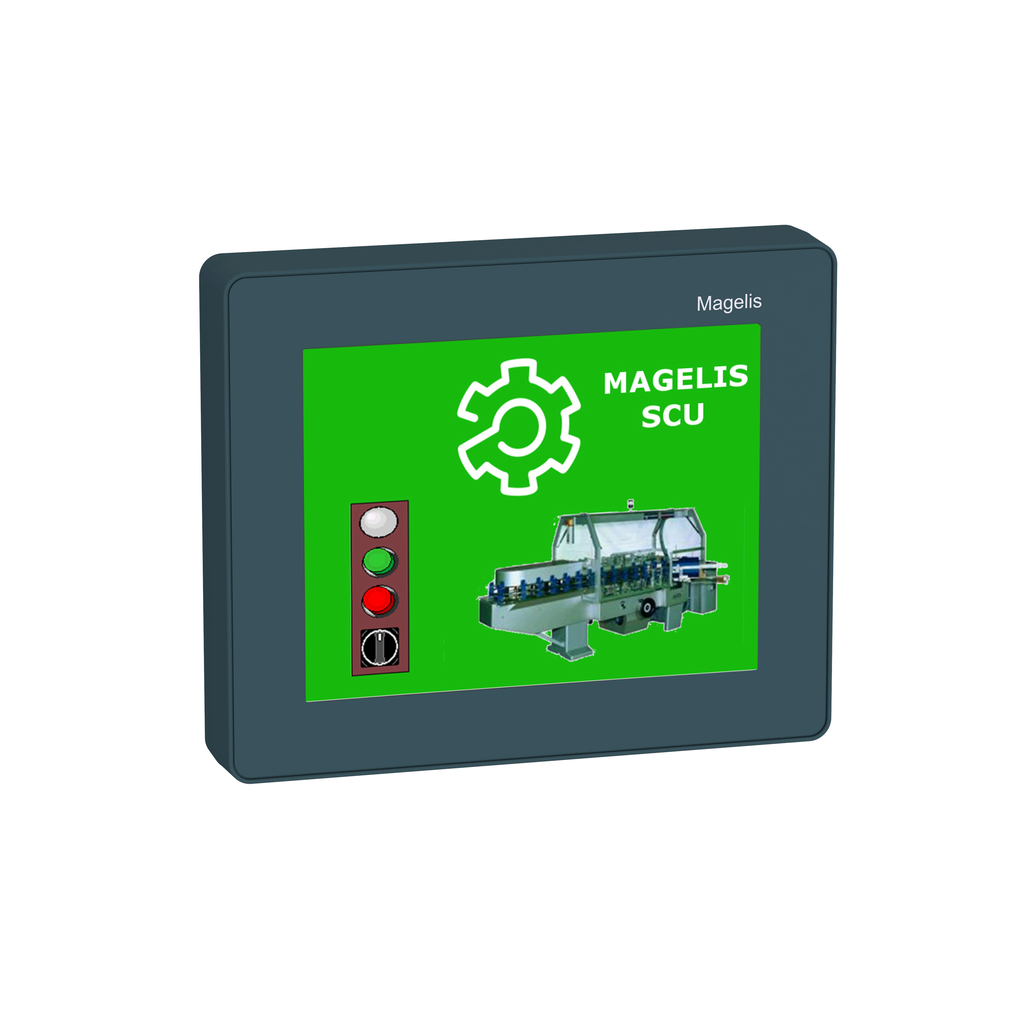

HMIS65W
Small touchscreen display HMI, Harmony SCU, 3in5 front module color TFT LCD without Schneider logo
Specifications
| Pixel Resolution | 320 x 240 pixels QVGA |
|---|---|
| Range Of Product | Harmony SCU |
| Display Size | 3.5 inch |
| Product Or Component Type | small touchscreen display HMI |
| Brightness | 16 levels via touch panel |
| Touch Panel | analogue |
| View Angle Horiz X Vert |
|
| Display Type | backlit LED colour TFT LCD |
| Width | 97.6 mm |
| Depth | 80 mm |
| Net Weight | 0.53 kg |
| Character Font |
|
| Backlight Lifespan | 50000 hours 65536 colours |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2101003EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2101003EN |
| Sustainable Offer Status | Green Premium product |
| Upgradeability | Upgradeable through digital modules and upgraded components |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Product Certifications | UKCA |
