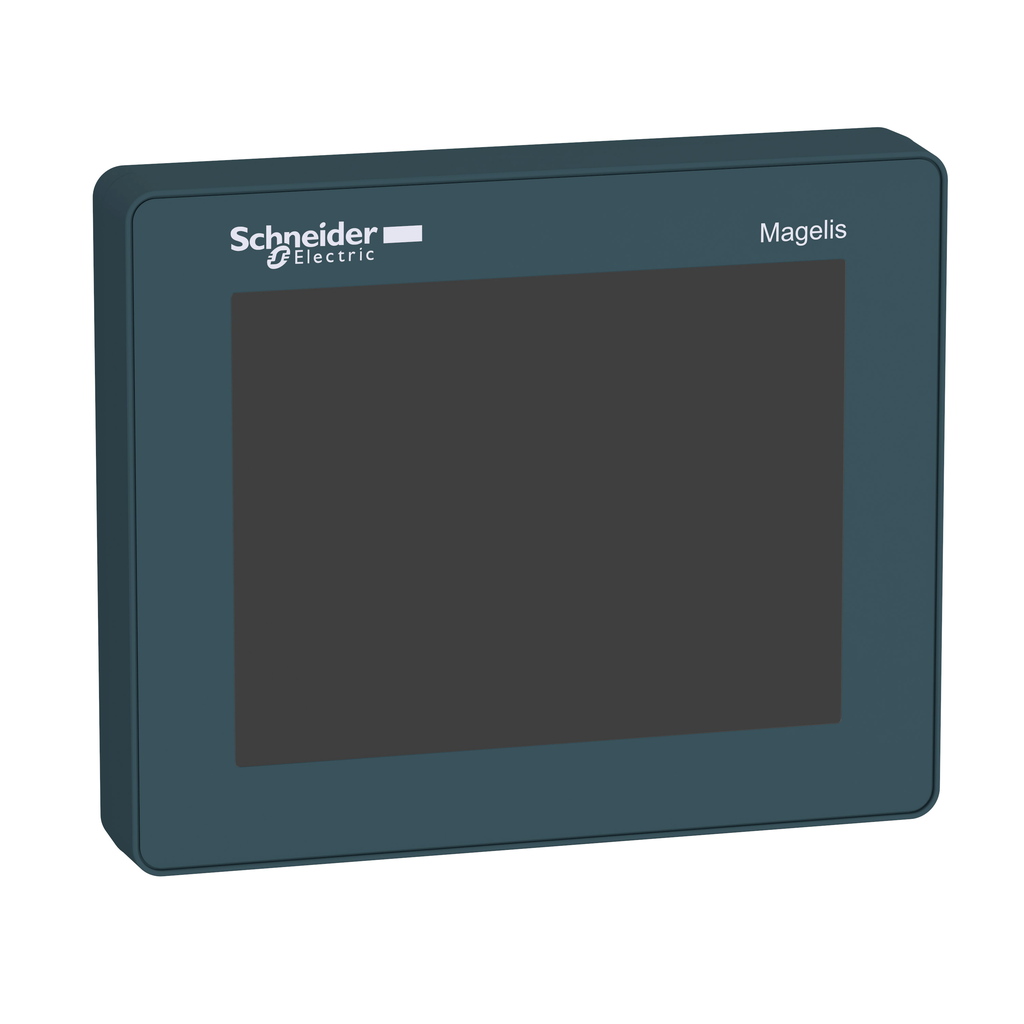

Small touchscreen display HMI, Harmony SCU, 3in5 front module Backlight LED Color TFT LCD
This product is part of the Harmony SCU range, an offer of HMI controllers from 3.5 to 5.7inch colour screens. The HMI small touchscreen features 3.5inch QVGA backlit LED colour TFT LCD display and supports 320 x 240 pixels resolution. It supports Korean, Chinese (simplified Chinese), Japanese (ANK, Kanji), ASCII and Taiwanese (traditional Chinese) character fonts. It supports 65536 colours with 50000 hours of backlight lifespan. The analogue touch panel with 16 levels brightness provides four viewing angles 60° left, 60° right, 40° top, 60° bottom in horizontal x vertical. Its dimensions are 97.6mm (width) x 80mm (depth) and weighs 0.53kg. The integrated design of Harmony SCU delivers maximum functionality while keeping installation easy. Designed for small machines and simple processes control, its state-of-the-art display provides clear readability. The Harmony SCU (formerly known as Magelis SCU) is designed to operate with EcoStruxure™ Machine Expert. It offers functionality for control of small machines and simple processes, while saving up to 30% in installation and ownership costs.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Pixel Resolution | 320 x 240 pixels QVGA |
|---|---|
| Range Of Product | Harmony SCU |
| Product Or Component Type | small touchscreen display HMI |
| Display Size | 3.5 inch |
| Warranty | 18 months |
| Brightness | 16 levels via touch panel |
| View Angle Horiz X Vert |
|
| Net Weight | 0.53 kg |
| Backlight Lifespan | 50000 hours 65536 colours |
| Touch Panel | analogue |
| Display Type | backlit LED colour TFT LCD |
| Width | 97.6 mm |
| Depth | 80 mm |
| Character Font |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2101003EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2101003EN |
| Upgradeability | Upgradeable through digital modules and upgraded components |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
