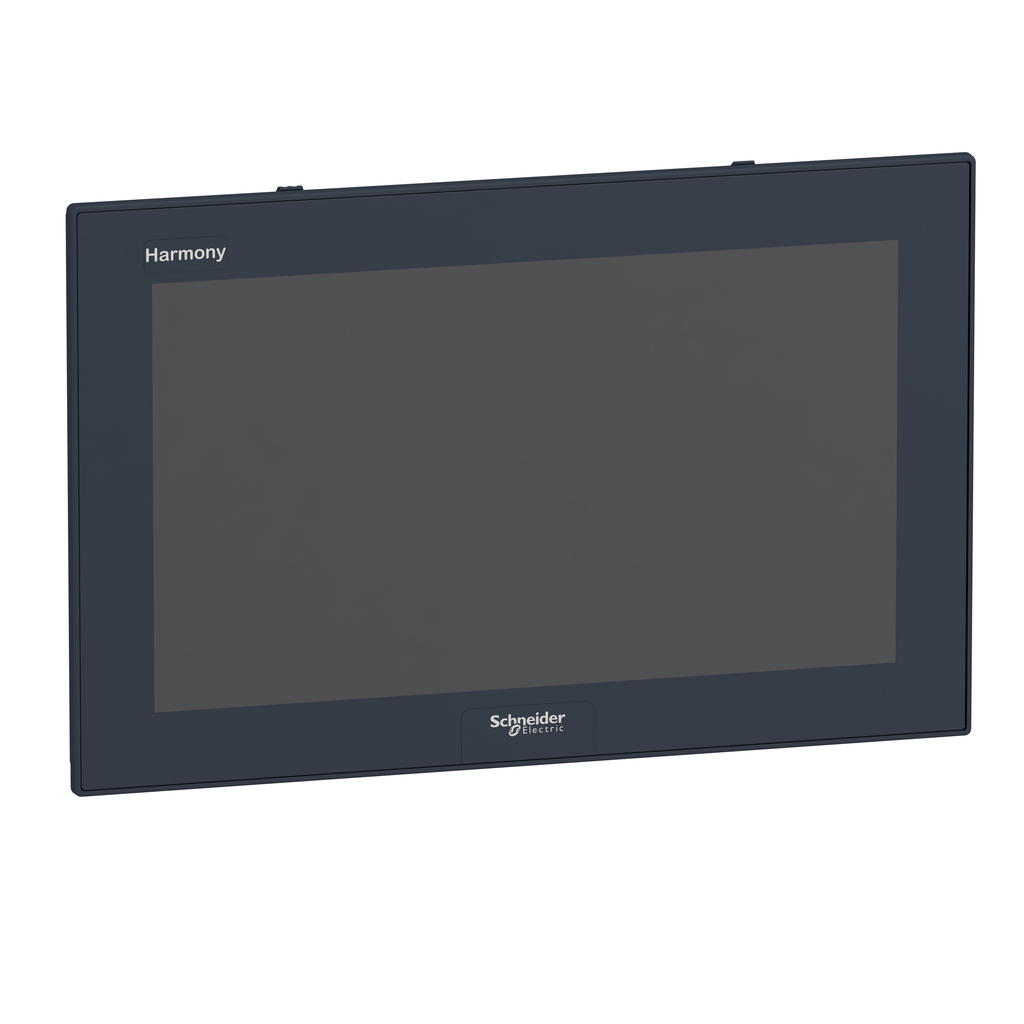

HMIPSOC752D1W01
multi touch screen, Harmony iPC, S panel PC optimized, 32GB back side CFast card, 15inch wide display
Specifications
| Pixel Resolution | 4096 x 4096 |
|---|---|
| Video Controller Type | Intel HD Graphics |
| Range Of Product | Harmony iPC |
| Software Package |
|
| Product Or Component Type | multi-touch screen |
| Chipset Type | Intel Atom SoC |
| Luminance | 300 cd/m² |
| Processor Name | Intel Atom E3827 dual core 1.75 GHz |
| Free Slots | 1 CFast |
| Display Size | 15.6 inch |
| Display Colour | 16777216 colors |
| Operating System | WES 7 Premium SP1 64-bitmulti-language |
| Mechanical Robustness | hardness anti-scratch 7H |
| Backlight Lifespan | 50000 hours |
| Number Of Points | 5 |
| Height | 269 mm |
| [Us] Rated Supply Voltage |
|
| Watchdog Timer | 1-255 ms |
| Main Type | Optimised |
| Display Resolution | 1366 x 768 pixels WXGA |
| Terminal Type | touchscreen display |
| Net Weight | 3.9 kg |
| View Angle Horizontal X Vertical | 150 x 140° |
| Function Available | operate with water on screen |
| Memory Type | 4 GB RAM DDR3 internal |
| Display Size | 15" wide multi-touch |
| Touch Panel | projected capacitive technology (PCT) |
| Cut-Out Dimensions | 412.4 (+/- 0.7) x 261.7 (+/- 0.4) |
| Type Of Cooling |
|
| Local Signalling |
|
| Line Rated Current | 1.7 A |
| Width | 419.7 mm |
| Display Type |
|
| Depth | 61.9 mm |
| Aspect Ratio | 16:9 |
| Data Storage Equipment | 32 GB back side CFast card |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
| Product Certifications |
|
| Ambient Air Temperature For Operation |
|
| Standards |
|
| Vibration Resistance |
|
| Pollution Degree | 2 |
| Directives |
|
| Ambient Air Temperature For Storage | -20-60 °C |
| Relative Humidity | 10-95 % non-condensing |
| Ip Degree Of Protection | front panel IP66 |
| Operating Altitude | 2000 |
