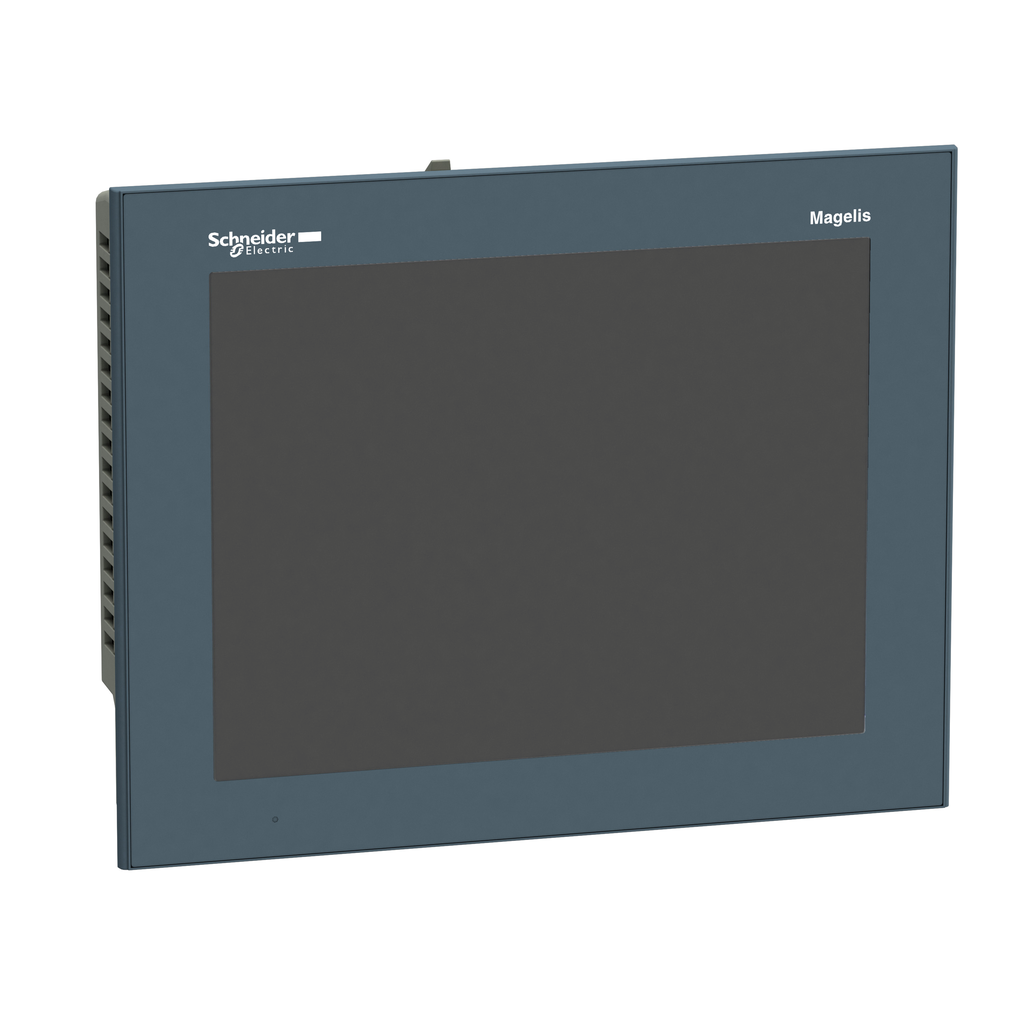

Range Of Product | Harmony GTO |
---|---|
Supply | external source |
Battery Type | lithium internal RAM 100 days 5 day(s) 10 year(s) |
Product Or Component Type | advanced touchscreen panel |
Display Size | 10.4 inch |
Display Colour | 65536 colours |
Data Backed Up | 512 kB internal RAM SRAM) |
Height | 214.5 mm |
Touch Sensitive Zone | 1024 x 1024 |
Inrush Current | 30 A |
Software Designation | Vijeo Designer configuration software >= V6.1 |
Brightness |
|
Display Resolution | 640 x 480 pixels VGA |
Terminal Type | touchscreen display |
Net Weight | 2 kg |
Fixing Mode | by 4 screw clamps |
Backlight Lifespan | 50000 hours white 25 °C |
Local Signalling |
|
Supply Voltage Limits | 19.2-28.8 V |
Type Of Cooling | natural convection |
Integrated Connection Type |
|
Touch Panel | resistive film, 1000000 cycles |
Product Mounting | flush mounting |
Enclosure Material | PPT |
Width | 272.5 mm |
Display Type | backlit colour TFT LCD |
Front Material | PPT |
Depth | 57 mm |
Maximum Power Consumption In W |
|
Downloadable Protocols |
|
[Us] Rated Supply Voltage | 24 V DC |
Data Storage Equipment |
|
Character Font |
|
Memory Description | flash EPROM, 96 MB |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ambient Air Temperature For Operation | 0-55 °C |
Standards |
|
Shock Resistance | 147 m/s² 3 chocks in each direction X, Y and Z EN/IEC 61131-2 |
Vibration Resistance |
|
Ip Degree Of Protection |
|
Ambient Air Temperature For Storage | -20-60 °C |
Nema Degree Of Protection | NEMA 4X front panel (indoor use) |
Relative Humidity | 10-90 % without condensation |
Resistance To Electrostatic Discharge | 6 kV contact discharge IEC 61000-4-2 level 3 |
Operating Altitude | < 6561.68 ft (2000 m) |
